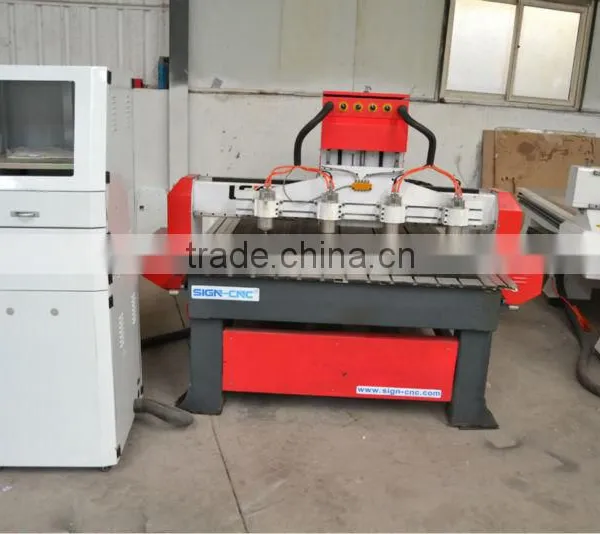

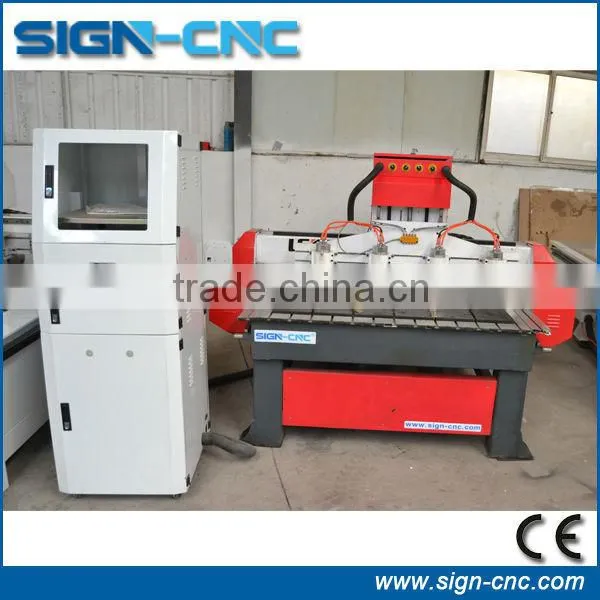

1325 four spindle cnc router engraver machine
Technical Parameters
NO. |
SIGN-1325 |
Parameter |
1 |
X,Y,Z Working Area |
1300*2500*150mm |
2 |
Table Size |
1550*2600*150MM |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repeat Positioning Accuracy |
±0.02mm |
5 |
Lathe Structure |
hard steel sturcture |
6 |
X Structure |
gear and rack,PMI linear rail from TAIWAN |
7 |
Y Structure |
gear and rack, PMI linear rail from TAIWAN |
8 |
Z Structure |
Ball screws and linear rail |
9 |
Max.Consume power |
about 4.0Kw |
10 |
Max.Speed |
0-25000mm/min |
11 |
Max.Working Speed |
0-20000mm/min |
12 |
Spindle Power Motor |
3 Kw water Cooling Spindle ,import bearings |
13 |
Spindle Speed |
0-24000RPM |
14 |
Working Mode |
Stepper Motor |
15 |
Command Code |
G code(*uoo,*nc,*mmg, *plt) |
16 |
Operating System |
DSP hand controller system,support offline work |
Applicable Industries of cnc router wood
CNC Router is suitable for various materials:
such as plastic, MDF board, PVC, acrylic, wood, composite board plywood, and metal, stone, glass, etc.
It can be used widely to process or make:
advertising signs, PCB, nameplates ,badges, bronzing plate, aluminum alloy, acryplates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.

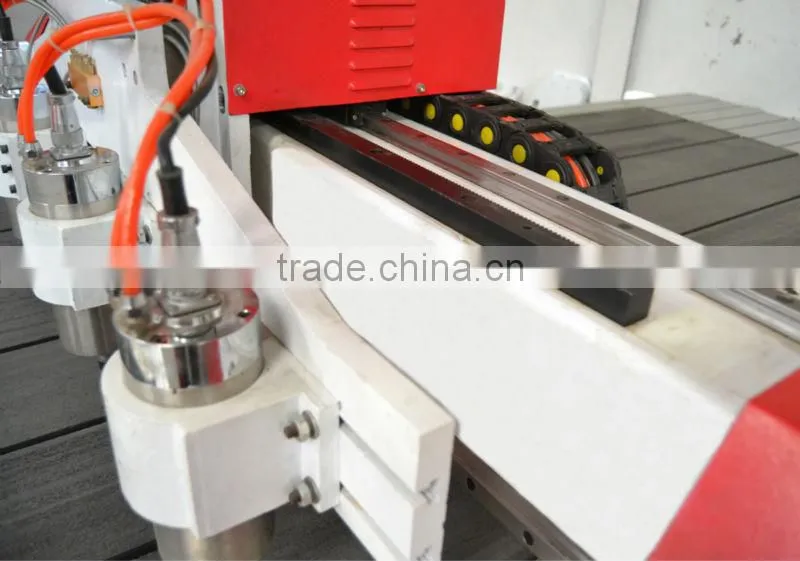

machine part

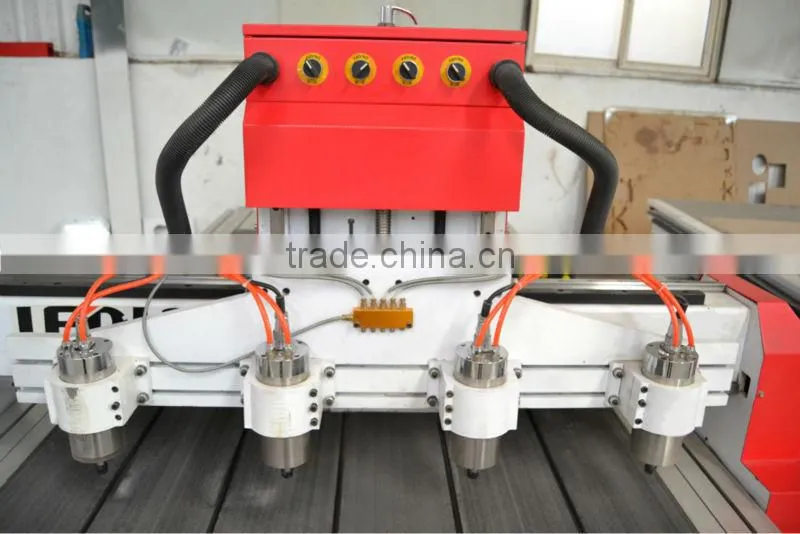

1.multi head,with four spindle,can do same work in same time,improve work efficiency

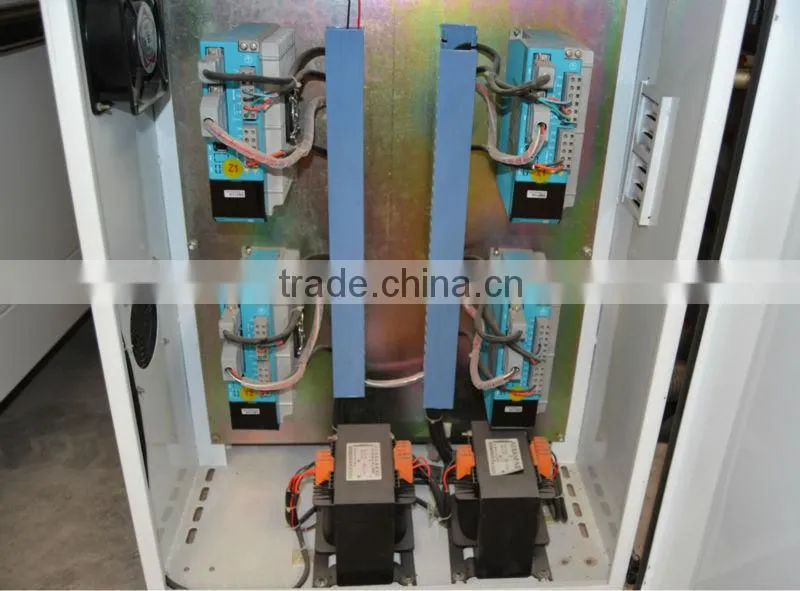

ntrol cabinet independence,more easy to control .
3.square rail and rack ,more stable for cnc router machine working.
Optional part
1.vacuum table(use vacuum pump hold on the material ,save set in screw
and convenient for work)
2.DSP control system(with dsp control panel,easy to far away control machine)
3.oil system(make the machine work fast and not get rust)

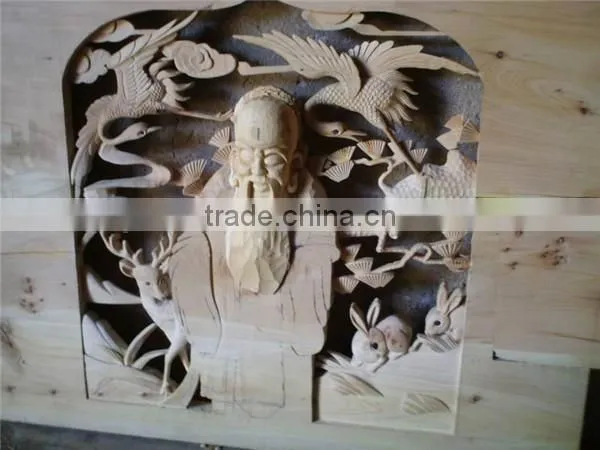

machine sample

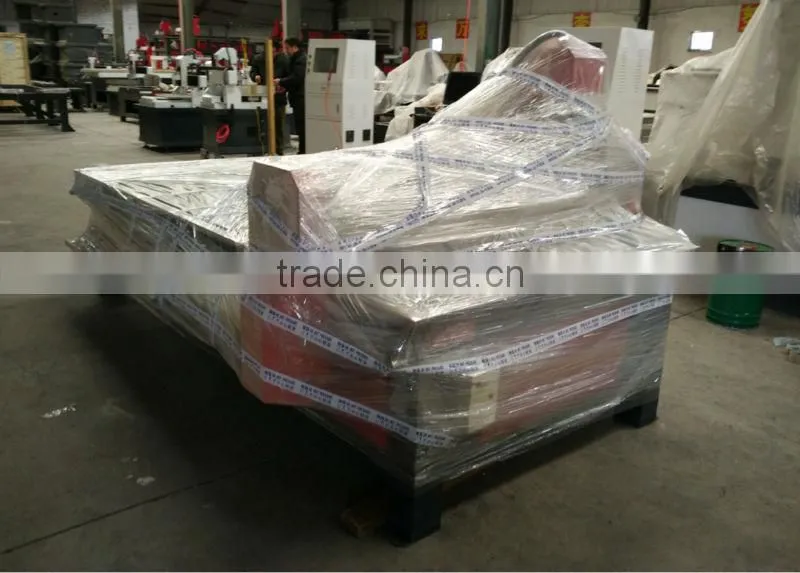

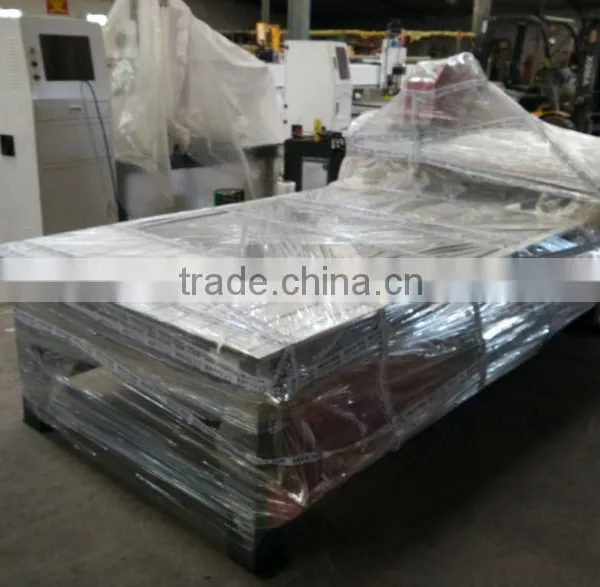

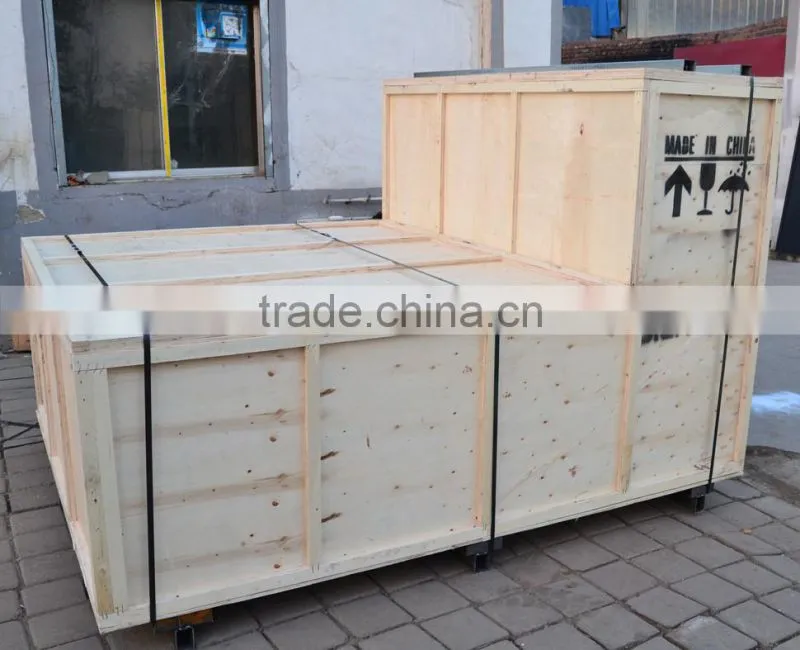

we packing the machine with wooden case inside and water proof polyethylene outside .
- Technical support by phone, e-mail or MSN around the clock
- Friendly English version manual and operation video CD disk
- 7-15 working days after down payment or full payment
- .Machine will be adjusted before it is delivered , operation disk/CD was included.
- Our technician can give you remote guide online(Skype or MSN) if you have any question
- Engineers available to service machinery overseas, seller and buyer discuss the charges
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: How can operate this machine first time?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
