ATC multi-head wood cnc router machine with CE, ISO certificate
ATC pneumatic cnc router features

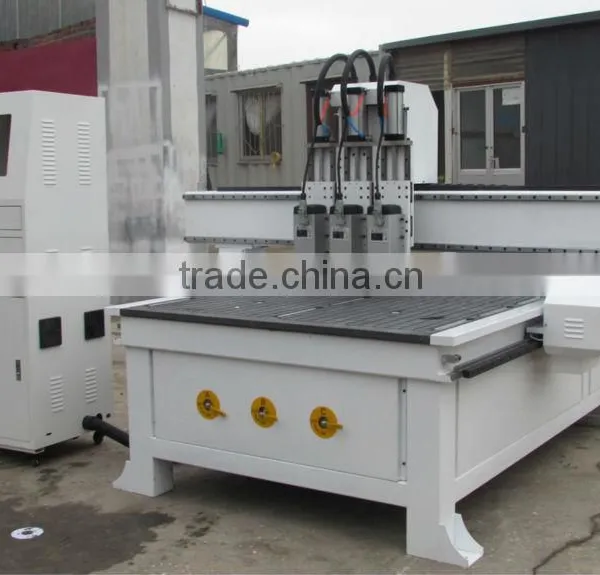

1.Three shift spindles, with air cooling spindle,the three spindles can work one by one automatically, so this machine can finish three different work on one board without changing tools by hands.
2.The machine adopts gantry movement, it can process any kinds of materials freely.

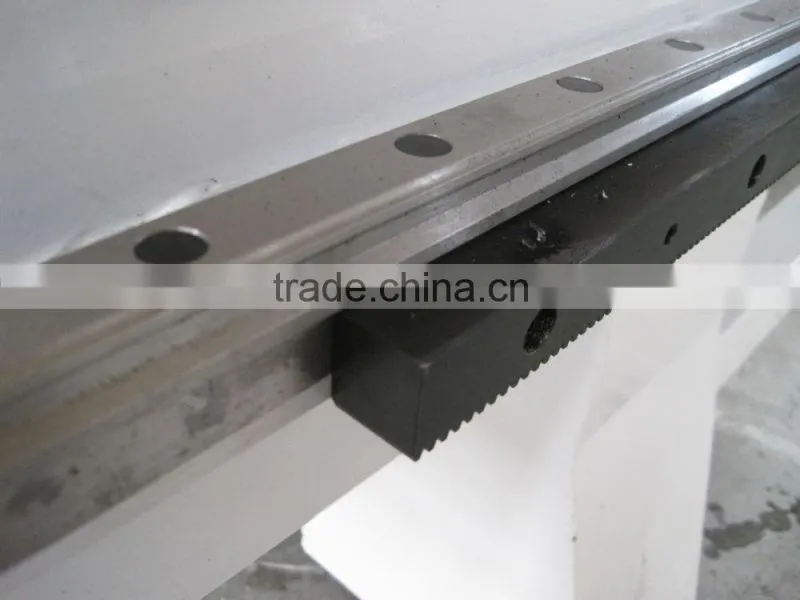

3.Three axis adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt rack and pinion
transmission, fast working, high efficiency and low cost. Z axis adopts Twain TBI ball screw,with high precision and longevity.
4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Ucancam etc.
5.Has the function of re-carving after break point and power failure.
6.Has the function of forecasting process time.
7.Adopting advanced Nc Studio control system, work together with computer.

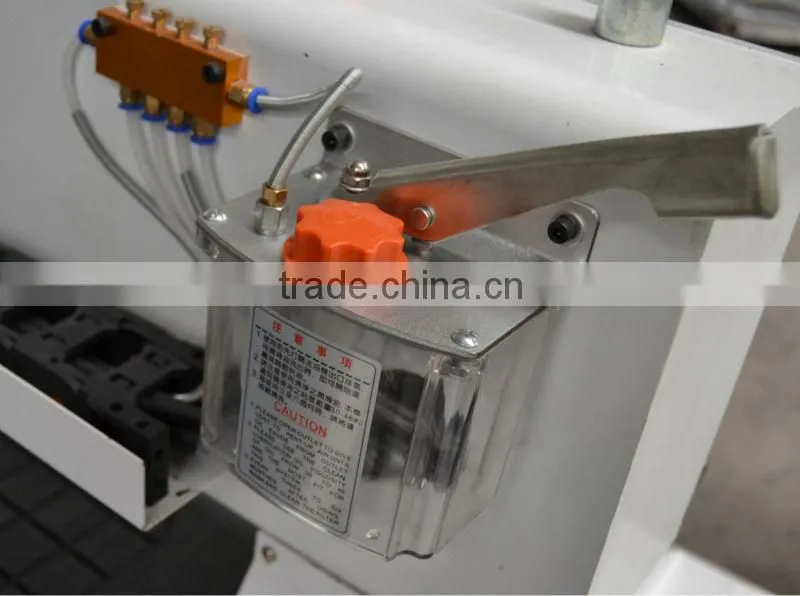

8.Perfect oil-inject system makes maintenance much easier.

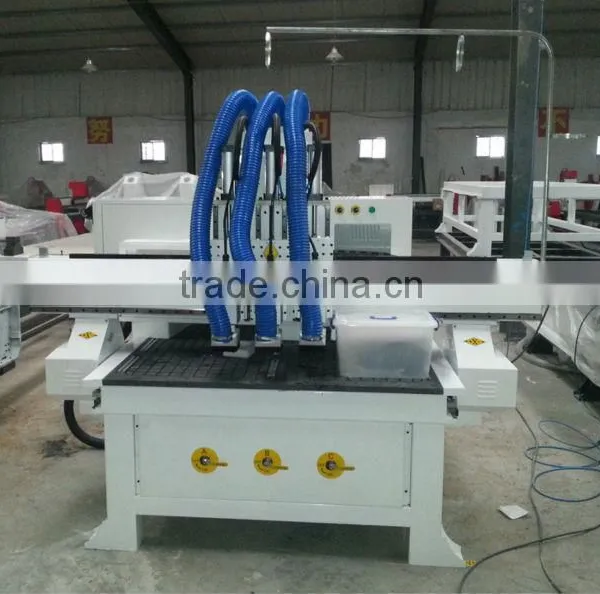

9.Has dust-collect function. It will clean up the carving residuum and make the operations tidier and more
convenient.
Technical Parameters
Model |
SIGN-1325 |
Working Area(X,Y,Z) |
1300*2500*200mm |
Also have the ability to custom-made according to user's special demand | |
Spindle Power |
3..0KW |
Table material |
Vacuum and T-slot Combined |
Guideway rails type |
Square Guide Rail, Gear Transmission |
Working Delicacy |
0.025-0.05mm |
Max Engraving Speed |
25,000mm/min |
Resolution ratio |
0.002mm |
Repetition accuracy |
±0.02mm |
Spindle Rotating Speed |
6000 - 24,000rpm |
Spindle cooling |
Water Cooling |
Drive motor system |
Step Motor and Step Driver(Option: Servo System) |
Engraving Command |
G code, u00, mmg, PLT, HPG |
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
Working temperature |
0-45°C |
Relative humidity |
30% - 75% |

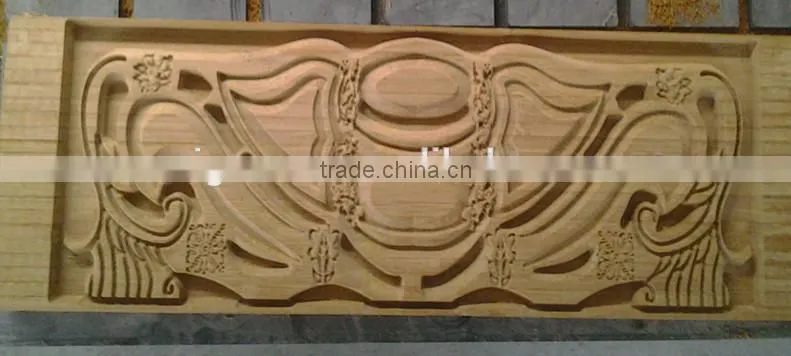

machine sample
- Technical support by phone, e-mail or MSN around the clock
- Friendly English version manual and operation video CD disk
- 7-15 working days after down payment or full payment
- .Machine will be adjusted before it is delivered , operation disk/CD was included.
- Our technician can give you remote guide online(Skype or MSN) if you have any question
- Engineers available to service machinery overseas, seller and buyer discuss the charges
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
Our advantage:
1.we can do the designs according to the customers' requirement
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service .
4.we have strong professinal design team
5. promptly delivery. small order is welcome
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine. If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
