Desktop CO2 4060 Laser Engraving Cutting Machine
1. Machine Features
6040 laser machine have two colors , one is blue and white , one is red and black
Model----SIGN-6040
working area --600*400mm
laser power --- 40w/60w /reci 90w
laser head ---single head or double heads
cooling way ---water pump /cw3000 water chiller
exhaust fan and air pump
professional controller and software
English manual and operating video
suit for perfect engraving and cutting co2 materials
2. Applications
---wood /MDF /plywood/balsa wood/bamboo/PCB board /wooden crafts
---plastic/ acrylic/double color sheet
---cloth/fabric/leather/wool felt/ paper/cotton /silk/polyester
--glass/marble/stone/tombstone/headstone/granite
3. laser engraving cutting samples
4. Technical Parameters
Machine Model |
SIGN- 6040 |
Working Size |
600*400mm |
Laser Power |
40w/60w/reci 90w |
Laser Type |
CO2 sealed high quality, water-cooling |
Driving System |
Step motor |
Resetting Position Accuracy |
≤±001 |
Engraving speed |
0-70,000mm/min |
Cutting Speed |
0-40,000mm/min (1,574inch/min) |
Power Supply |
220V/50Hz, 110V/60Hz, |
Operating Temperature |
0-45℃ |
Operating Humidity |
5-95% |
Min. Shaping Character |
English 1.0*1.0mm |
Operating System |
DSP |
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
Software Supported |
Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension(cm/in) |
200cm*140cm*135cm (78in*55in*53in) |
Packing Dimension(cm/in) |
223cm*143cm*140cm (87in*56in*55in) |
Net Weight |
450kg |

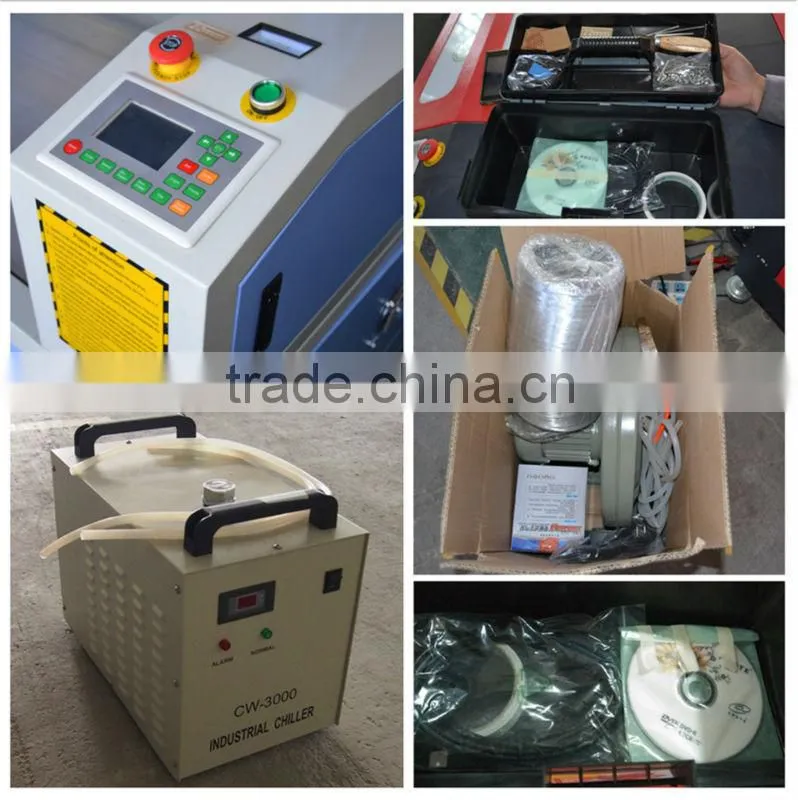

5. Standard Machine Parts
1× laser tube /2×laser tube
1×water pump /1×CW3000 water chiller / 1×CW3000 +CW5200 water chiller
1×exhaust fan +air pump +USB offline
1×RuiDa control system
1×CD (English manual and operating video )
1×tools

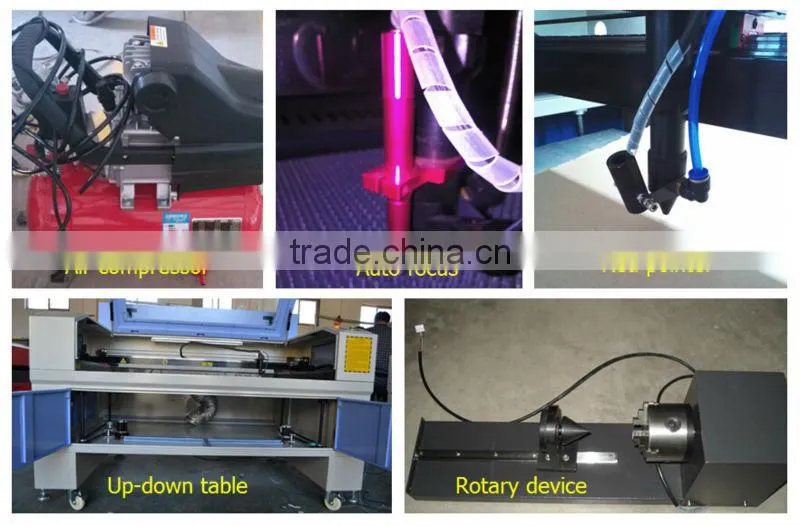

6. Optional parts
1. Air compressor ---it used for cooling some flammable materials when working , such as wood, mdf, plywood, cloth, fabric, leather
2. Auto focus ---it can automatic measure the distance from the laser head to worktable , more accuracy
3. Red pointer --it can see the location of laser light
4. Up-down worktable --it used for processing some thickness materials, the lifting range can up to 300mm
5. Rotary system --it used for engraving some cylinder materials, such as bottle, Irregular wood materials
7. packing parts
We use the strong non-fumigation wooden case with steel tube under the pallet, so it can avoid any damage to the machine.
8. After sale service 1. Service before sale: our salesman will try to know more about your demands about the laser engraving cutting machine , including the max working size, main processing materials and the thickness , so we will offer you suit machine
2. Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts
3. Service before shipping : the machine parts will be installed and tested by our professional technician, send the test video according to customer’s processing materials for customer confirmations
4. Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up
5. Service of teaching : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely
6. Service of warranty : we guarantee the machine for 2 years, some machine parts ( quality problems ) can be free charge to replace it within warranty
9. FAQ
1. what is the consumable items of laser machine?
include laser tube,mirror and lens,belt
2. i want to specialized engraving for wood,acrylic,which power should i choose?
need choose 40w or 60w laser tube
3. what is the formats are your machine support ?
our laser machine support Coreldraw, Photoshop, AutoCAD, Tajima ect
10. Payment Term
Payment Terms |
T/T in advance |
Delivery Terms |
FOB Qingdao |
Payment Condition |
we can accept 50%payment,the other 50% shall be paid before shipping. |
Packing |
Wooden boxes or as your requirement |
Supply Capacity |
200Sets/Month |
11 . contact
