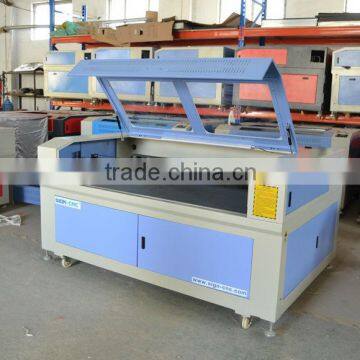

Laser engraving and cutting machine for acrylic sheet
Machine Features
1. Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the work piece length.
2. High quality water cooler, protect stable radiation and prolong the lift-span of laser.
3. With the drawer and the funnel design for collecting remnant material, it is convenient to use.
4. The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop, Tajima software
Technical Parameters
Machine Model |
SIGN-1610 |
Working Size |
1600*1000mm |
Laser Power |
reci 90w+90w/100w+100w/150w+150w/150w+60w |
Laser Type |
CO2 sealed high quality, water-cooling |
Driving System |
Stepper motor |
Resetting Position Accuracy |
≤±0.01 |
Cutting Speed |
0-40,000mm/min (1,574inch/min) |
Power Supply |
220V/50Hz or 110V/60Hz, |
Operating Temperature |
0-45°C |
Operating Humidity |
5-95% |
Min. Shaping Character |
English 1.0*1.0mm |
Operating System |
DSP |
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
Software Supported |
Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension(cm/in) |
2180cm*150 cm *135 cm |
Packing Dimension(cm/in) |
223cm*163cm*145cm |
Net Weight |
650kg |
Optional Spare Parts |
Up-down clump, Rotary System, Honeycomb table |
Recommended Spare Parts |
Laser Tube and Lens |

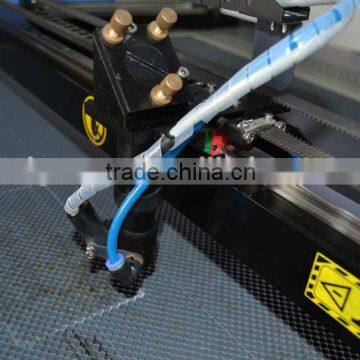

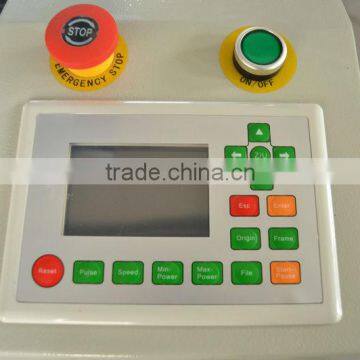

Machine Parts
Machine Samples
I am new to laser machine, how do I operate the machine?
It is not difficult to operate it .We are the professional supplier and offer you suitable machine ,the video and specification ,in addition two years warranty for the Laser machine , 24 hours technical calling or e-mail service for any technical questions of our machine

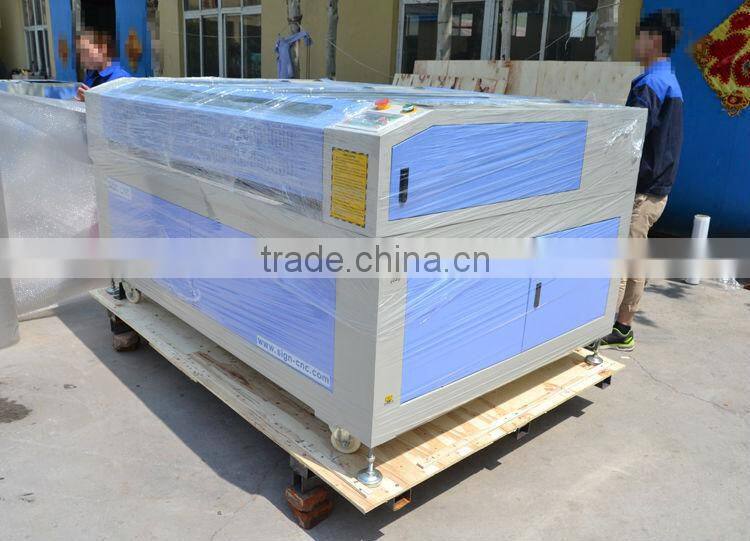

How do you send your machine?
We can send our machines by sea, land and rail way, air shipping.
What is the maintenance of the laser machine?
About laser tube:
When you do not use the machine, please let the water out from the output light side.
About water chiller:
When you put water into it, please keep water clean, we recommend that it needs 1-2 weekends to changed, it’s better to change the water
About the lens and mirrors:
Please keep the lens clean when you work with the machine, clean the lens every day or every day three times as per your work quantity.
