Specifications

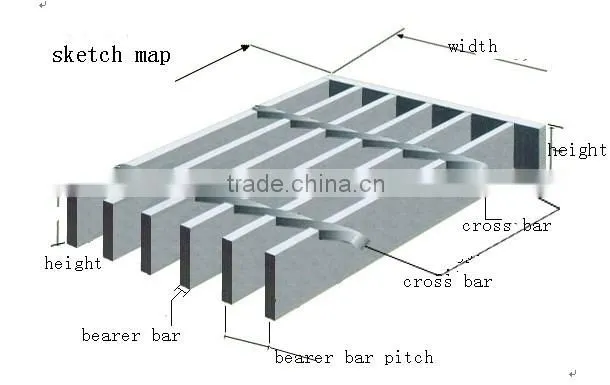

Corrugated Steel Grating1.Bearing bar pitch: 30mm,40mm,60mm
2.Cross bar pitch: 100mm,50mm
3.Thickness of plate:3mm,5mm
Brife Introduction:
Serrated steel grating is made up of one side is serrated flat steel welding and produce steel grid plate products. Its in addition to completely satisfy standard bonding steel plate in the form of a beautiful, easy installation, etc, also have strong ability of antiskid, especially suitable for wet and soapy, offshore oil platform, etc. Serrated steel grating using hot dip galvanized surface treatment, strong rust.
Specifications and models as well as ordinary flat steel, the difference is that the side of the flat uneven teeth marks. Mainly lies in the skid.
Serrated steel grating has very good prevent slippery effect, the tooth type flat steel and twisted square steel welded together of steel case board already slippery beautiful teeth, tooth surface hot galvanizing steel grid board, silvery white enhances the modern style, can be used for a variety of indoor and outdoor high places.
Material:
I flat steel, flat steel thick thin in the middle. Twist steel: also known as the twisted square steel. Generally speaking, there are 5 x5 6 x6 8 by 8 square steel, twisted into a bar. On the type of said ordinary flat steel, and the difference is that the side of the flat uneven teeth marks. Mainly lies in the skid.
Serrated steel grating material generally material is Q235 low carbon steel. A common model in general is 253 255 303 305 323 255 253 404 405 specifications. We adopt mainly by slitting flat steel, and steel plate cutting and into.
Serrated steel grating using high strength steel, the steel grid plate has high strength: the strength and toughness is much higher than cast iron, can be used for docks, airports and other large span and overload situations.
Characteristic:
Drainage: this product has a large mesh which has the best leakage area of 83.3%, more than twice the iron. Product contour artistic, simple line, silver appearance, modern thought, With makings provinces save investment: long-span and heavy-load, lower than the cast iron price; And can save cast iron cover due to theft or crushed and replacement costs.
Application:

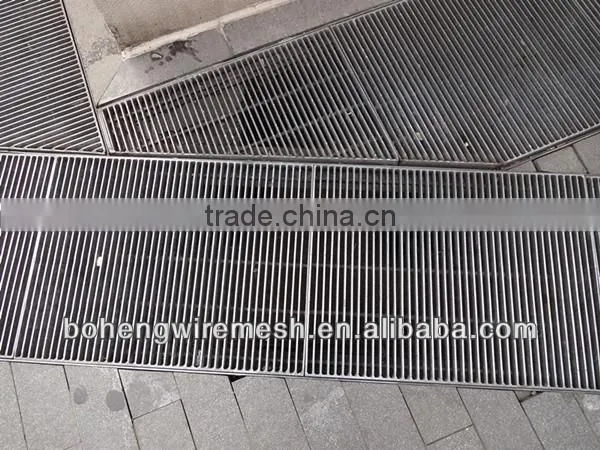

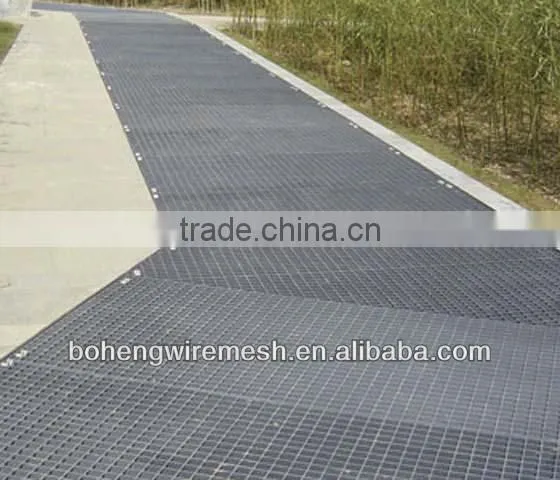

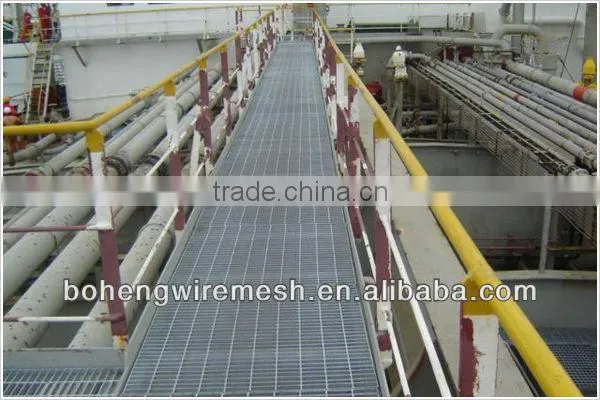

Tooth shape steel grid plate is mainly used in petroleum chemical industry, power plants, waterworks, sewage plants, steel case board, municipal engineering, environmental sanitation engineering, port, airport, etc in the field of platform, walkway, tread, trench cover, fences, guardrail, etc.
Specification of steel grating:
Series |
Bearing Bar Spacing | Cross Bar Spacing |
Bearing Bar Specification ( Width * Thickness)
|
|||||||
|
|
( mm ) |
( mm ) |
32*5 ( mm ) |
40*5 ( mm ) |
45*5 ( mm ) |
50*5 ( mm ) |
55*5 ( mm ) |
60*5 ( mm ) |
||
1 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
||
|
|
|
50
|
G325/30/50 |
G405/30/50 |
G4555/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
2 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
||
|
|
|
50
|
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
3 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
||
