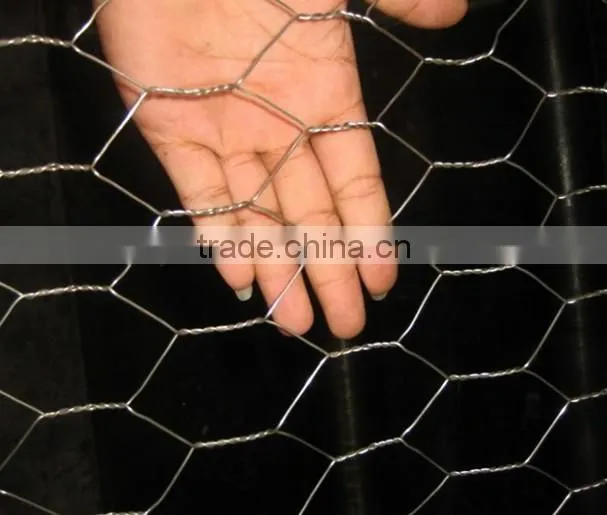

BWG 22 Hexagonal Wire Mesh:
1.Factory Sales
2.Material: galvanized wire
3.width:6 feet
4.ISO9001:2008

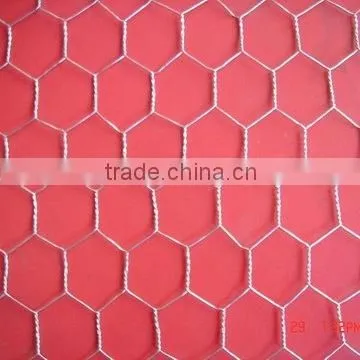

hexagonal wire mesh
Hexagonal wire mesh is also known by the name of chicken mesh.
Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.stainless steel wire
Assortments Available:
- Hex. wire mesh in normal twist
- Hex. wire mesh in reverse twist
- Hex. wire mesh in bidirectional twists
- Electro Galvanized before Weaving
- Electro Galvanized After Weaving
- Hot Dipped Galvanized before Weaving
- Hot Dipped Galvanized after Weaving
- PVC Coated Before or After Weaving
Application: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
specification
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
The production of hexagonal wire mesh:
Step 1: link the wire to the mesh machine
Step 2: going wire
Step 3: to form the mesh
Step 4: to form mesh roll
Our packing :
The application:
