Cheap Price 3D Marble/ Granite CNC Router/ Stone Engraving Machine
1.Machine brief:
SIGN-1325s is Cost -Effective stone CNC Router. Feeding height 200-300mm is optional.

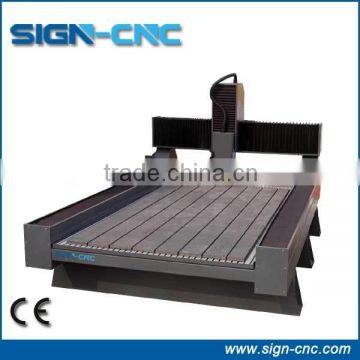

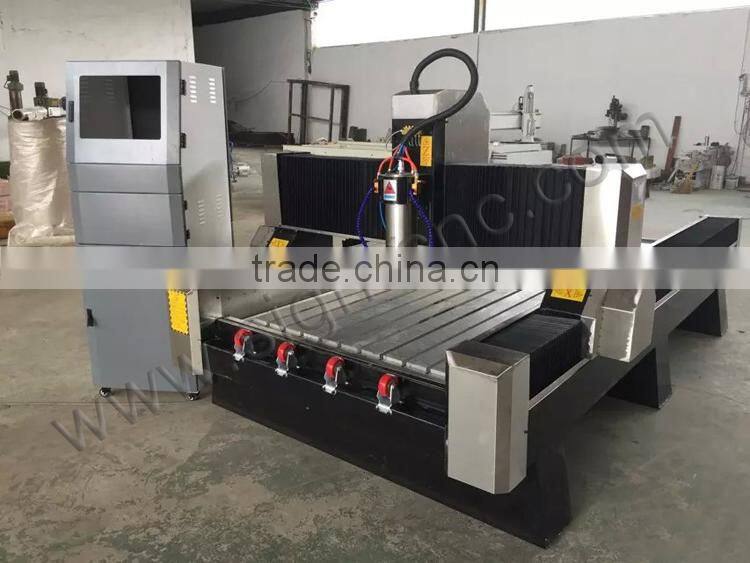

2.Machine pictures:

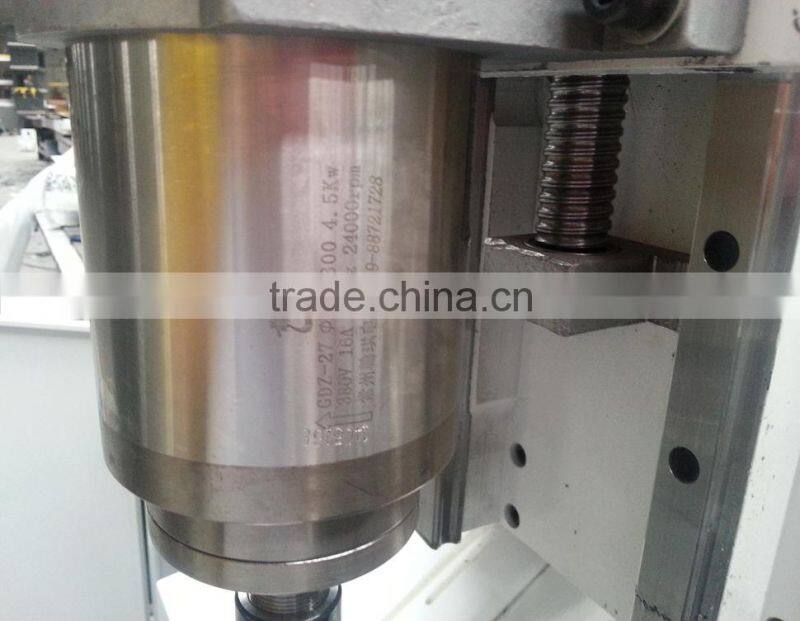

3.Machine Features:
Imported ball screw rod and Hiwin linear guide rail
----ensure accuracy and high precision
Quality sensor switch
----improve the machine working safty
High-performance driven motor
---- ensure that the machines high speed and accuracy
Big power sub-division motors
---- keep stable moving, improve your working efficacy
Large compatibility of drawing software
Type3, Art compatible Artcam/Type3/Ucancam/JDPaint
Continuing working after the break point/power failure
----lower the rejection rate
Optional items
----servo motor, vacuum adsorption working table, rotary axis

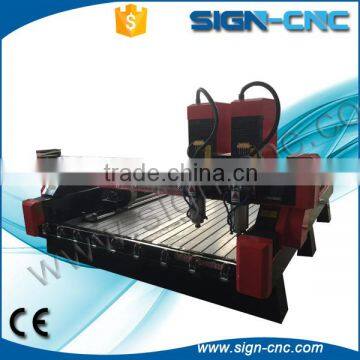

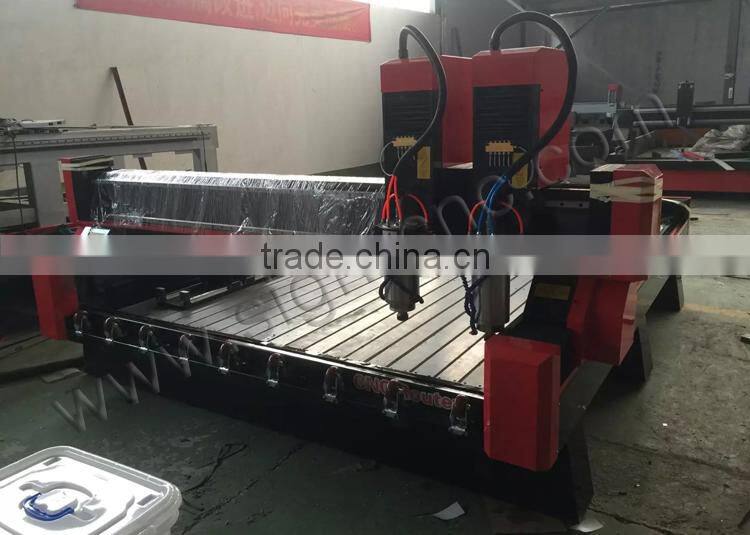

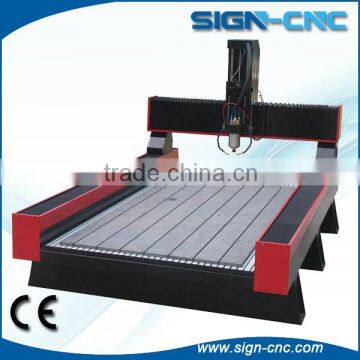

4.Machine reference pictures:
5.Application:
Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.
6.Technical Parameter:
Model |
SIGN-1325S |
SIGN-1530S
|
SIGN-2030S |
|
XY Working size |
1300*2500mm |
1500*3000mm
|
2000*3000mm |
|
Z feed Height |
200mm / 300mm heighten Gantry optional |
|||
Frame: |
Bigger and thicker Steel tube structure |
|||
Table Surface |
T-slot (Option: Vacuum Table) |
|||
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|||
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
|||
Max. Power Consumption: |
(Without spindle) 2.0Kw |
|||
Max. Rapid Travel Rate: |
33000mm/min |
|||
Max. Working Speed: |
25000mm/min |
|||
Spindle Power: |
3.0 / 4.5 / 6 KW |
|||
Spindle Speed: |
0-24000RPM |
|||
Drive Motors: |
Stepper( Servo Optional) |
|||
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V) |
|||
Command Language: |
G code |
|||
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
|||
X,Y,Z repositioning Accuracy: |
±0.01mm |
|||
X,Y Resolution |
<0.01mm |
|||
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
|||
Running Environment Temperature: |
0 degree - 45 degree |
|||
Relative Humidity: |
30% - 75% |
|||
Guarantee |
One year |
|||
|
Optional Parts |
Air cooling spindle or Water cooling spindle Dust collector Vacuum Pump Rotary system Mist-cooling system Yaskawa/ Panasonic Servo motors |
|||

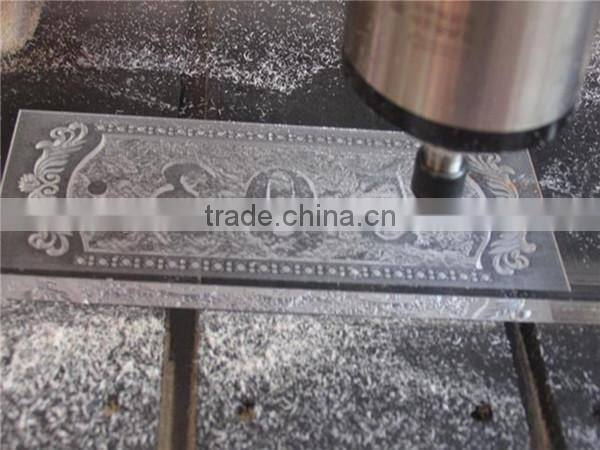

7.Samples:
8.Delivery and Transport:
FOB Qingdao. If other port needed, please tell me in advance.
CIF. Please tell me your destination port in advance. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
9.Our after-sale service
Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.
Exceed warranty period 1 year: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
10.Would you mind telling us the flowing information, we will recommend the most suitable cnc router and the best rice for you. Or we can customize one for you.
What materials do you want to engrave?
For different types of cnc routers apply to different materials (wood ,stone, marble, foam etc.)
What's the max. size of the materials? (Length*Width*Thickness)
For it decides the working size of machine.(for example: SW-1325: 1300*2500*200mm)

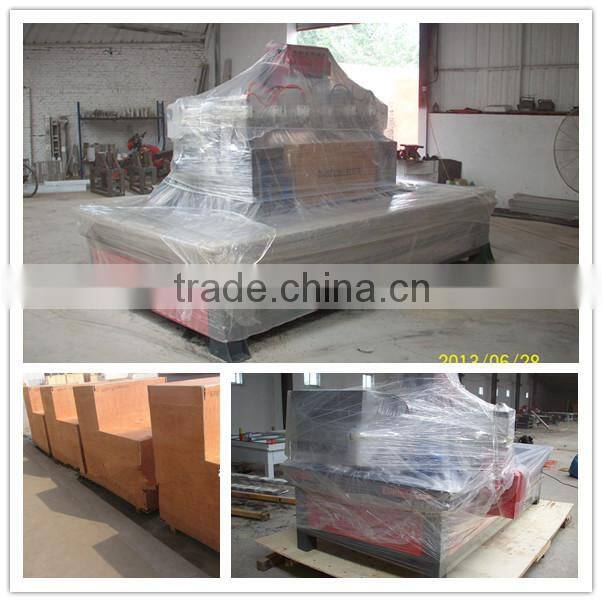

11.Package
Please feel free to contact us for further more information!
