SIGN cnc router machine for wordworking
- 300 Set / Sets per Month
- Qingdao
- Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN-CNC | Model Number: | SIGN-1325A | Voltage: | 110/220/380V |
Power(W): | 3.0KW | Dimension(L*W*H): | 1700*2900*1400mm | Weight: | 1200KG |
Certification: | CE / ISO | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
SIGN cnc router machine for wordworking :
Different size for your choose | ||||
300*300mm | 400*400mm | 600*600mm | 600*900mm | 1300*1200mm |
1300*1800mm | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
CNC router Machine Features:
1.---Working area is 1300*1800mm/1300*2500mm/1500*3000mm/2000*3000mm, according your demand to make it, for different size wood and materials.
2.--- Z axis feeding height is 150mm.

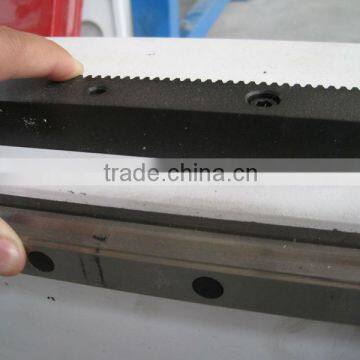

3.---Hiwin/TBI brand square guide rails and pinion and rack, for Z axis use square guide rails and ball screw.

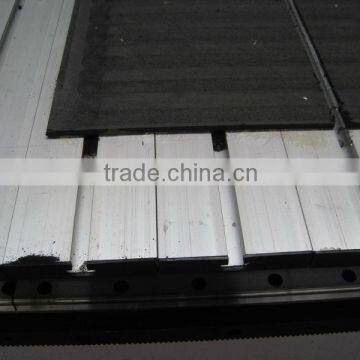

4.---T-slot can be process the different shape materials. 8 PCS clamp will send to you to gether with the machine.

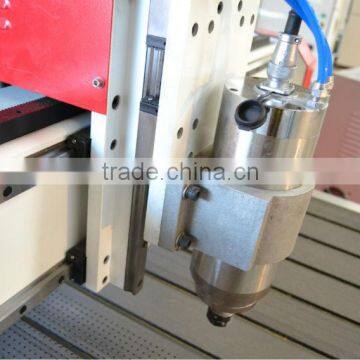

5.---3.0/4.5kw water cooling spindle, Low noise high rotated speed (24000rpm). Famous brand in China Qiancheng
6.---Continuing working after the break point/power failure, lower the rejection rate.
7.---NCtudio control system. and Mach3 and DSP is option
8.---CE certificate

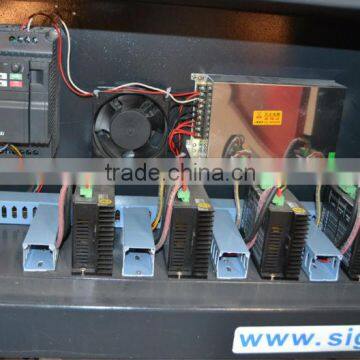

9.---Y adopt durable driving by synchronizing wheel consist of belt and gear shaft. Leadshine stepper motor
10.--Using quality sensor switch, improve the machine working safty .
11.--Compatible with the Artcam / Type3 / Ucancam / JDPaint such CAD / CAM software, 2D/3D processing.
12.--Tool box for cnc router.
Applicable Industries:
This type cnc router machine used for Woodworking, Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.
Technical Parameters:
Model | SIGN-1325A | SIGN-1530A | SIGN-1830A | SIGN-2030A |
XY Working size | 1300*2500mm | 1500*3000mm | 1800*3000mm | 2000*3000mm |
Z feed Height | 150mm(200mm / 300mm heighten Gantry optional) | |||
Frame | Steel tube structure | |||
Table Surface | T-slot (Option: Vacuum Table) | |||
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings | |||
Z Structure | Hiwin Rail Linear Bearings and Ball Screw | |||
Max. Power Consumption | (Without spindle) 2.0Kw | |||
Max. Rapid Travel Rate | 33000mm/min | |||
Max. Working Speed | 25000mm/min | |||
Spindle Power | 2.2 / 3.0 / 4.5 KW | |||
Spindle Speed | 0-24000RPM | |||
Drive Motors | Stepper( Servo Optional) | |||
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) | |||
Command Language | G code | |||
Operating System | Ncstudio (options: DSP /Mach3 PC Software) | |||
X,Y,Z repositioning Accuracy | ±0.01mm | |||
X,Y Resolution | <0.01mm | |||
Software Compatibility | Type3/UcancameV9 software, (Option: Artcam software) | |||
Running Environment Temperature | 0 degree - 45 degree | |||
Relative Humidity | 30% - 75% | |||
Guarantee | One year | |||
Optional Parts | Air cooling spindle or Water cooling spindle Dust collector Vacuum Pump Rotary system Mist-cooling system Yaskawa/ Panasonic Servo motors |

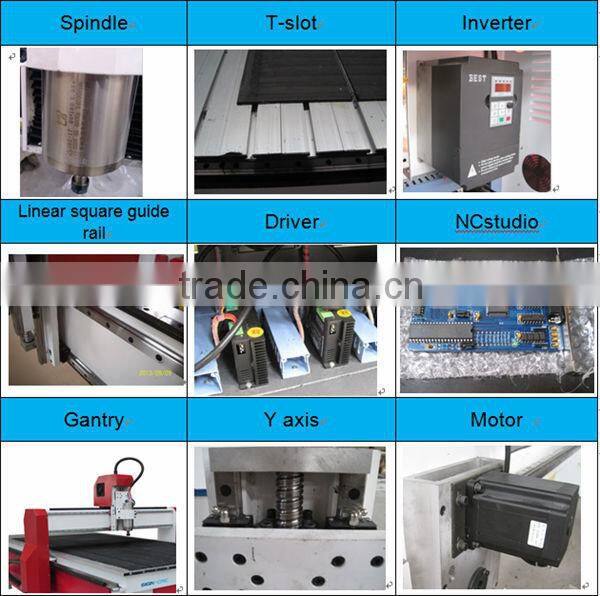

Pictures of machine parts:
Option iteams:

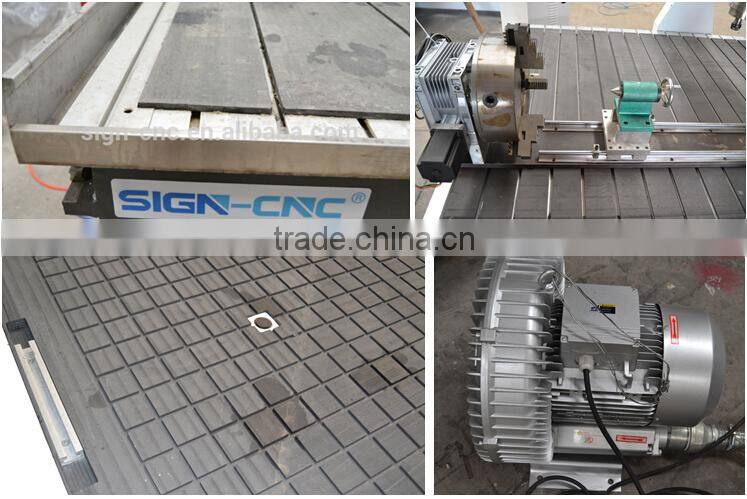

1.---Vacuum Adsorbing Table and Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps. Conveniently and save fixing time.
2.---Rotary device for big or small cylindrical workpieces engraving optional.
3.---Water tank/sink. Processing metal materials can add water cooling system, which can cool the tools, avoiding the high temperature breaking tools. And the sink is made off stainless steel. Can be used lifetime. But if use vacuum table can need choose what tank.
4.---DSP is option iteam. If you don't want to control this machine with computer you can choose DSP handle.
5.--- Servo motor and driver is option.
6.--- dust colletor is option.
Samples display: Wood PVC, acrylic and so on
Packing:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case( The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
Our Services:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
Other hot sale cnc router
Cooperation with us:
About Us:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
FAQ
1.Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
2.Q: This is my first time to use this machine, is it easy to operate?
A: There are guide videos that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
