wood cnc router machinery/ atc cnc router for woodworking/ wood door making cnc router cutting
1.Machine brief:
SIGN-1325atc is a high equipped woodworking CNC Router. It can change the tools automatically..

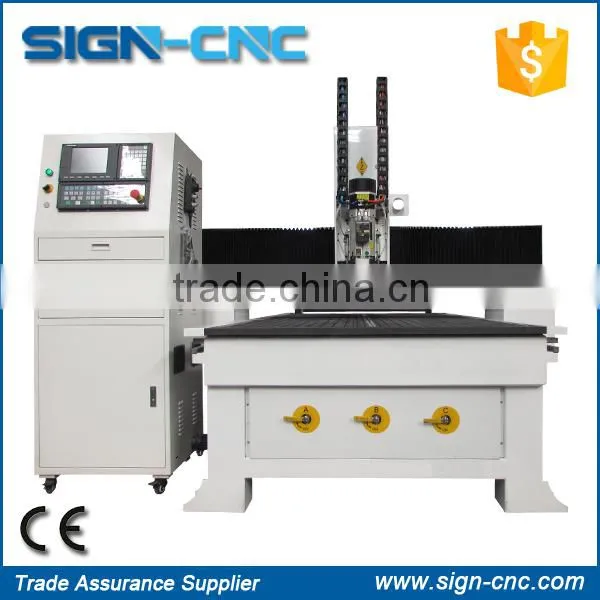

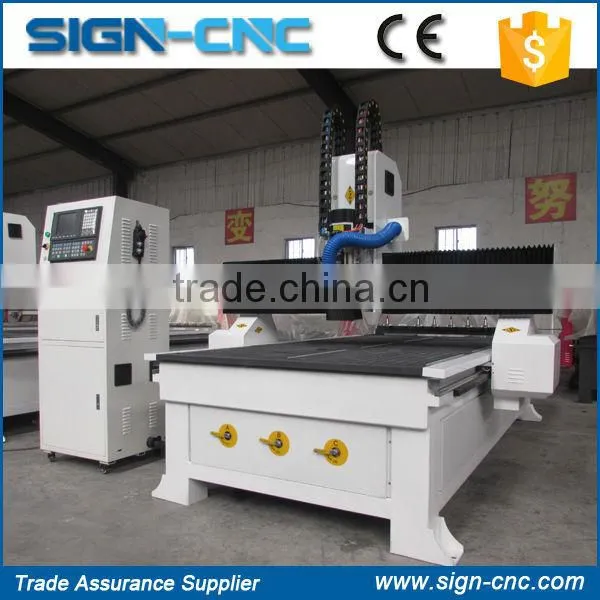

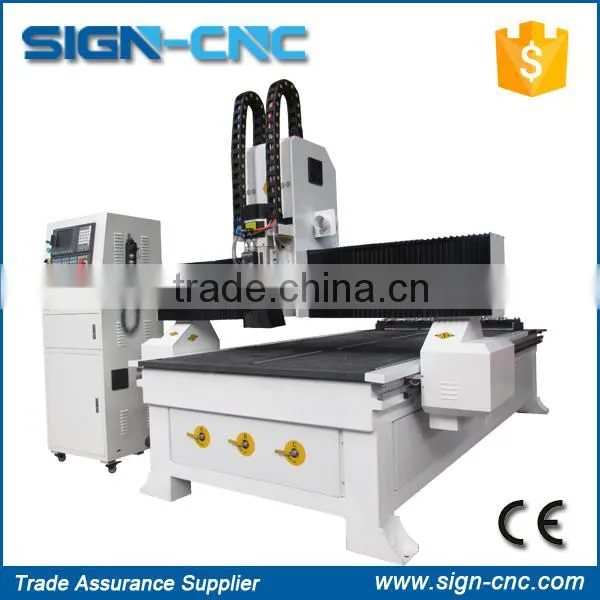

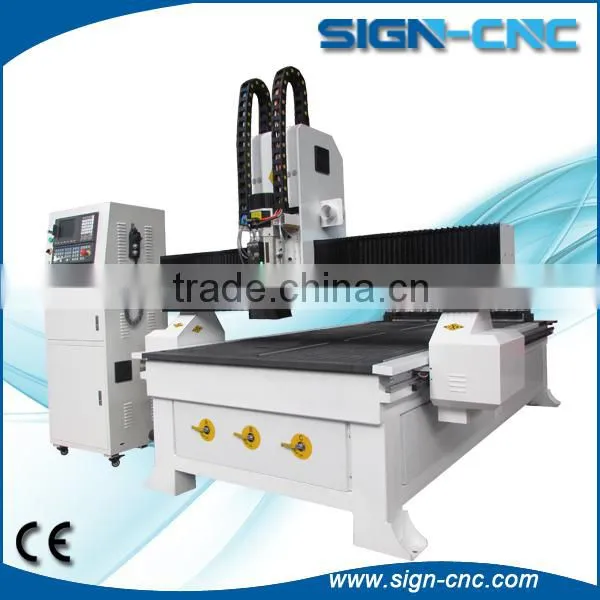

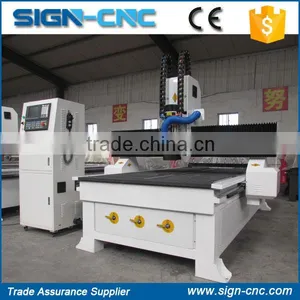

2.Machine pictures:
3.Machine Features:
Imported ball screw rod and Hiwin linear guide rail
----ensure accuracy and high precision
Quality sensor switch
----improve the machine working safty
High-performance servo motor and driver
---- ensure that the machines high speed and accuracy
Imported Syntec control system
---- multi function and easy to operate
Large compatibility of drawing software
Type3, Art compatible Artcam/Type3/Ucancam/JDPaint
Continuing working after the break point/power failure
----lower the rejection rate
Optional items
----vacuum adsorption working table, rotary axis
4.Machine reference pictures:
| Taiwan Syntec control system | |
| Italy 9kw HSD air cooling spindle with 24000 RPM | |
| linear type tool magazine with 8 cutters | |
| Vacuum working table with T-slot | |
5.Application:
Applicable materials: wood, acrylic, PVC, MDF, artificial stone, organic glass, plastic, and copper and aluminum and other
soft metal materials.
Applicable industries: Furniture: wooden doors, cabinets, plate, office, solid wood furniture, tables, chairs doors and
windows. Wood products: speakers, game cabinets, computer tables, sewing machine, musical instruments.
6.Technical Parameter:
Model |
SIGN1325atc |
SIGN1530atc |
SIGN1830atc |
SIGN2030atc |
XY Working size |
1300*2500mm |
1500*3000mm |
1800*3000mm |
2000*3000mm |
Z feed Height |
200mm(300mm heighten Gantry optional) |
|||
Frame: |
Steel tube structure (150*250mm) |
|||
Table Surface |
Vacuum and T-slot Combined(Option: T-slot Table) |
|||
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|||
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
|||
Max. Power Consumption: |
(Without spindle) 2.0Kw |
|||
Max. Rapid Travel Rate: |
17000mm/min |
|||
Max. Working Speed: |
9000mm/min |
|||
Spindle Power: |
9 KW |
|||
Spindle Speed: |
0-24000RPM |
|||
Drive Motors: |
Stepper( Servo Optional) |
|||
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
|||
Command Language: |
G code |
|||
Operating System: |
Syntec control system |
|||
X,Y,Z repositioning Accuracy: |
±0.01mm |
|||
X,Y Resolution |
<0.01mm |
|||
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
|||
Running Environment Temperature: |
0 degree - 45 degree |
|||
Relative Humidity: |
30% - 75% |
|||
Guarantee |
One year |
|||
|
Optional Parts |
Air cooling spindle or Water cooling spindle |
|||
Dust collector | ||||
Vacuum Pump | ||||
Rotary system | ||||
Mist-cooling system | ||||
Yaskawa/ Panasonic Servo motors | ||||

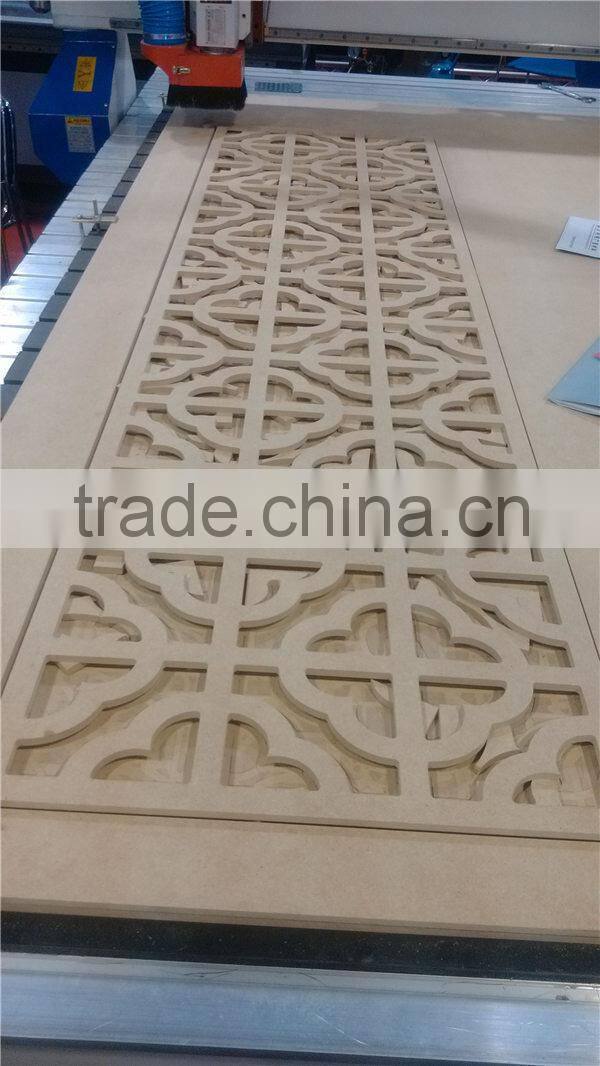

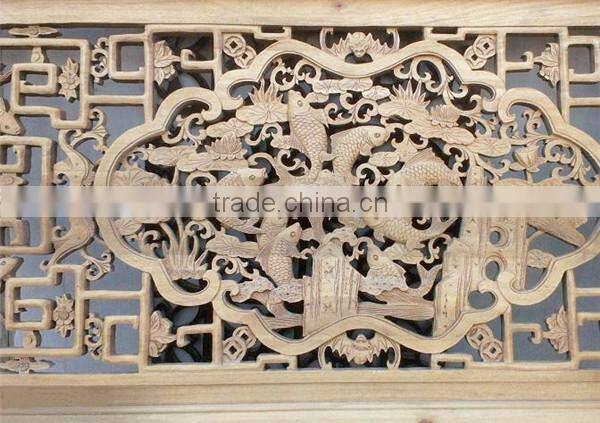

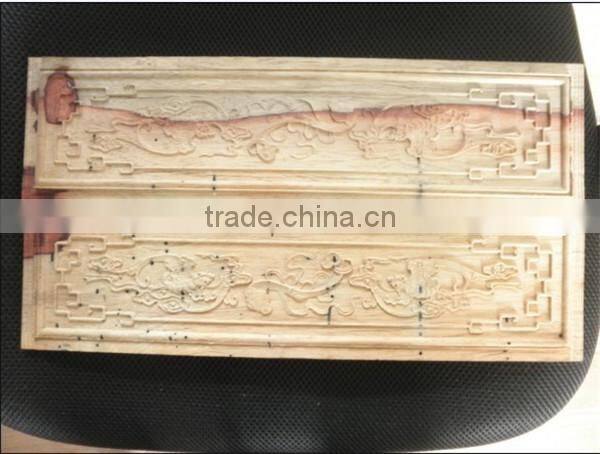

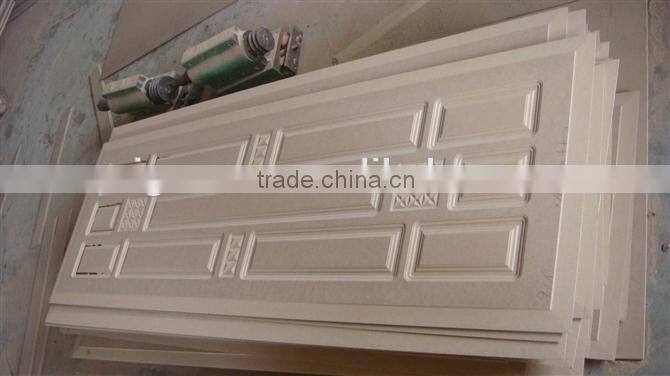

7.Samples:
8.Delivery and Transport:
FOB Qingdao. If other port needed, please tell me in advance.
CIF. Please tell me your destination port in advance. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
9.Our after-sale service
Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.
Exceed warranty period 1 year: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
10.Would you mind telling us the flowing information, we will recommend the most suitable cnc router and the best price for you. Or we can customize one for you.
What materials do you want to engrave or cut?
For different types of cnc routers apply to different materials (wood ,stone, metal, foam etc.)
What's the max. size of the materials? (Length*Width*Thickness)
For it decides the working size of machine.(for example: SIGN-1325: 1300*2500*200mm)
11.Package
Company certificate:
Our clients:
Please feel free to contact me:
Name: Andy
Whatsapp: 008618615200463
Skype: signnc02
