china manufacturer cnc wood router with high quality for furniture equipments
1.Machine brief:
SIGN1325-3 is Cost -Effective woodworking CNC Router. It has three spindles and can change the tools automatically.

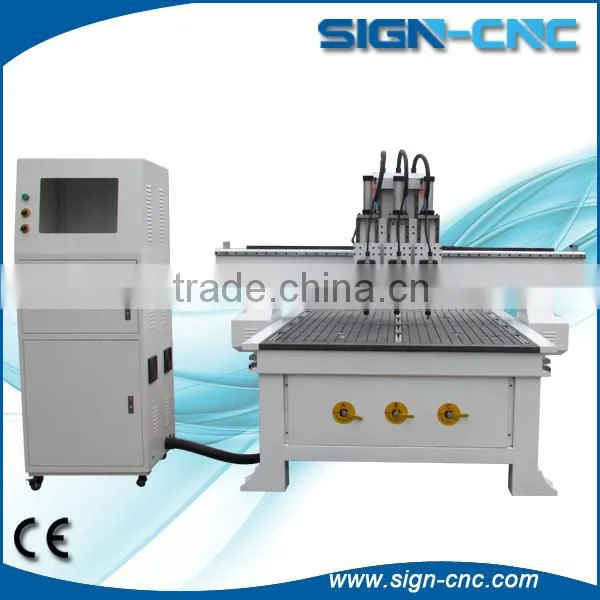

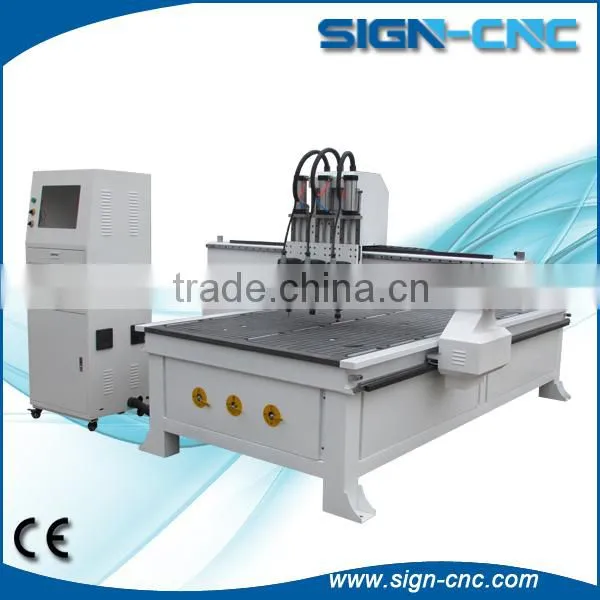

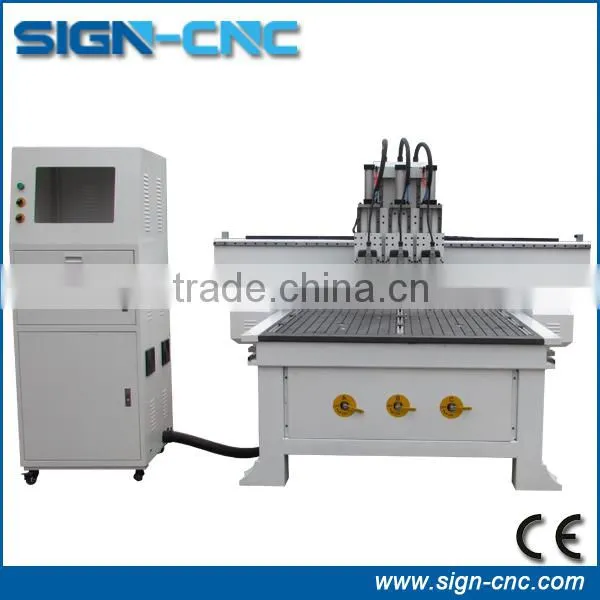

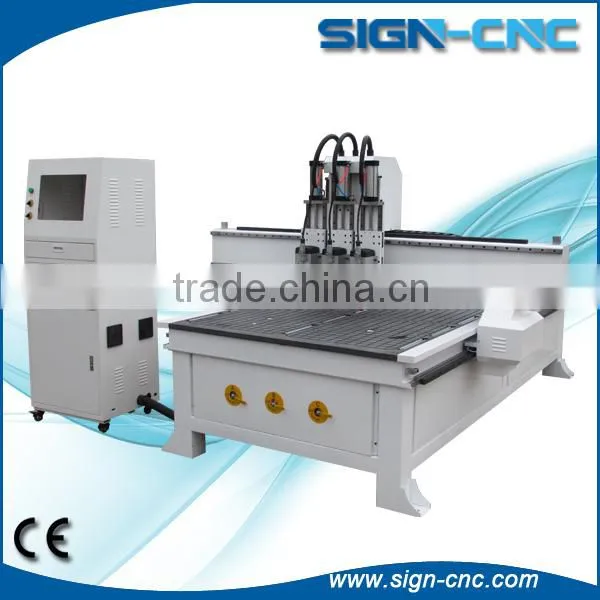

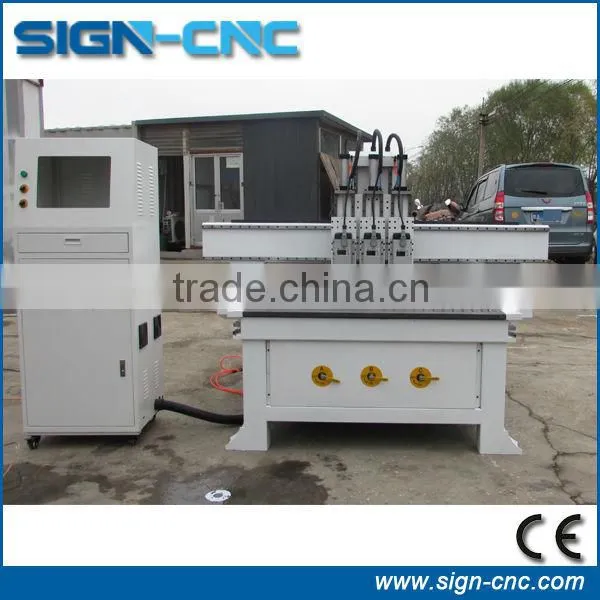

2.Machine pictures:
3.Application:
Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.

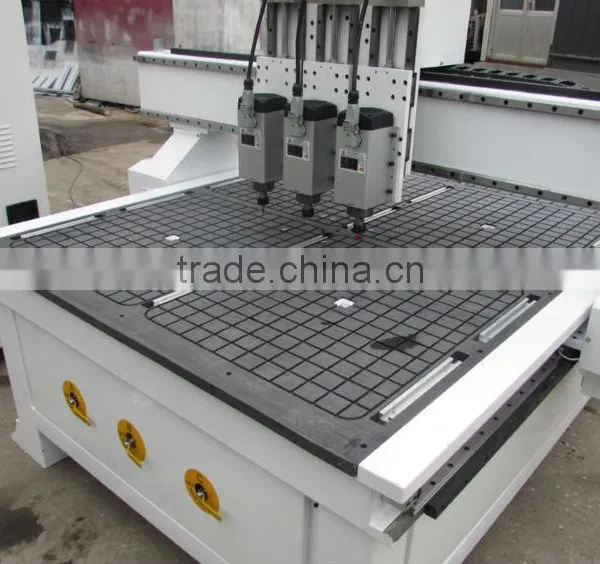

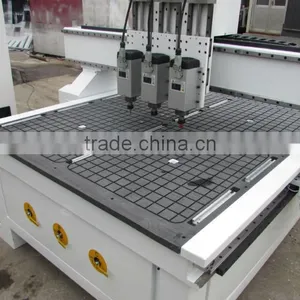

4.Machine detail photos:
5.Machine Features:
Imported ball screw rod and Hiwin linear guide rail
----ensure accuracy and high precision
Quality sensor switch
----improve the machine working safety
High-performance driven motor
---- ensure that the machines high speed and accuracy
Big power sub-division motors
---- keep stable moving, improve your working efficacy
Large compatibility of drawing software
Type3, Art compatible Artcam/Type3/Ucancam/JDPaint
Continuing working after the break point/power failure
----lower the rejection rate
Optional items
----servo motor, vacuum adsorption working table, rotary axis
6.Technical Parameter:
Model |
SIGN1325-3
|
|||
XY Working size |
1300*2500mm
|
|||
Z feed Height |
200mm |
|||
Frame: |
Steel tube structure |
|||
Table Surface |
T-slot (Option: Vacuum Table) |
|||
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|||
Z Structure: |
Hiwin Rail Linear Bearings and TBI Ball Screw |
|||
Max. Power Consumption: |
(Without spindle) 2.0Kw |
|||
Max. Rapid Travel Rate: |
33000mm/min |
|||
Max. Working Speed: |
25000mm/min |
|||
Spindle Power: |
2.2 / 3.0 / 4.5 KW |
|||
Spindle Speed: |
0-24000RPM |
|||
Drive Motors: |
Stepper( Servo Optional) |
|||
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V) |
|||
Command Language: |
G code |
|||
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
|||
X,Y,Z repositioning Accuracy: |
±0.01mm |
|||
X,Y Resolution |
<0.01mm |
|||
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
|||
Running Environment Temperature: |
0 degree - 45 degree |
|||
Relative Humidity: |
30% - 75% |
|||
Guarantee |
One year |
|||
|
Optional Parts |
Air cooling spindle or Water cooling spindle Dust collector Vacuum Pump Rotary system Mist-cooling system Yaskawa/ Panasonic Servo motors |
|||
7.Samples:
8.Delivery and Transport:
FOB Qingdao. If other port needed, please tell me in advance.
CIF. Please tell me your destination port in advance. We could send machine to your local port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
9.Our after-sale service
Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.
Exceed warranty period 1 year: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should bear the shipping cost.
10.Would you mind telling us the flowing information, we will recommend the most suitable cnc router and the best rice for you. Or we can customize one for you.
What materials do you want to engrave or cut?
For different types of cnc routers apply to different materials (wood ,stone, metal, foam etc.)
What's the max. size of the materials? (Length*Width*Thickness)
For it decides the working size of machine.(for example: SW-1325: 1300*2500*200mm)
11.Package
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
FAQ:
How much does it cost to use?
There is no cost to use the machine. However, you are responsible for supplying your own materials. Occasionally we require users to purchase their own router bits, depending on how much routing is to be done and the type of material.
How long will my CNC order take to arrive?
CNC orders will generally be made within one to two weeks.
Shipping time depends on your location, but will usually take between one day and one week.
How much will CNC routing my design cost?
The cost is determined by the complexity of your design and the material type and thickness you’ve chosen.
The CNC cuts materials at a range of speeds and as a rule it takes longer to cut thicker materials. As a general rule of thumb, the more lines your design has, the more it will cost to make.
