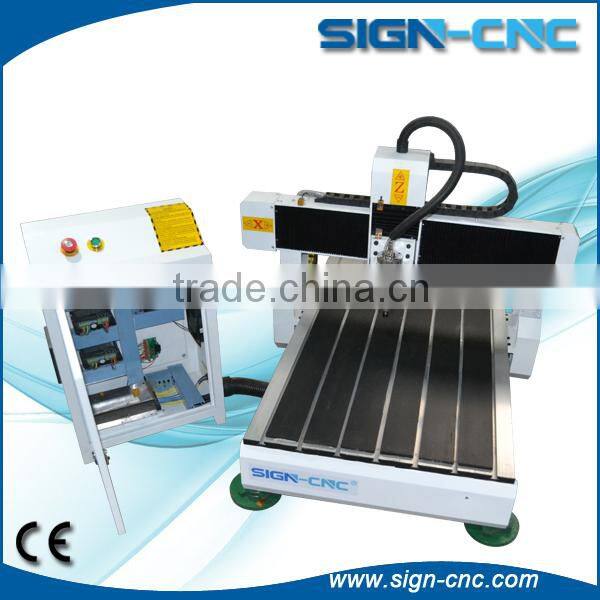

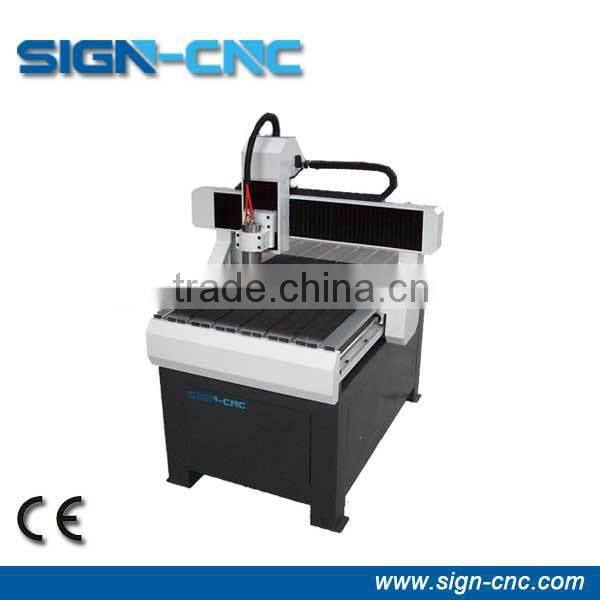

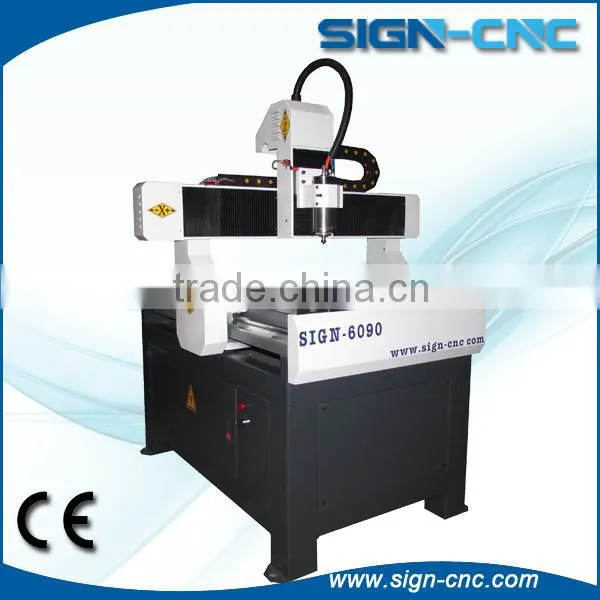

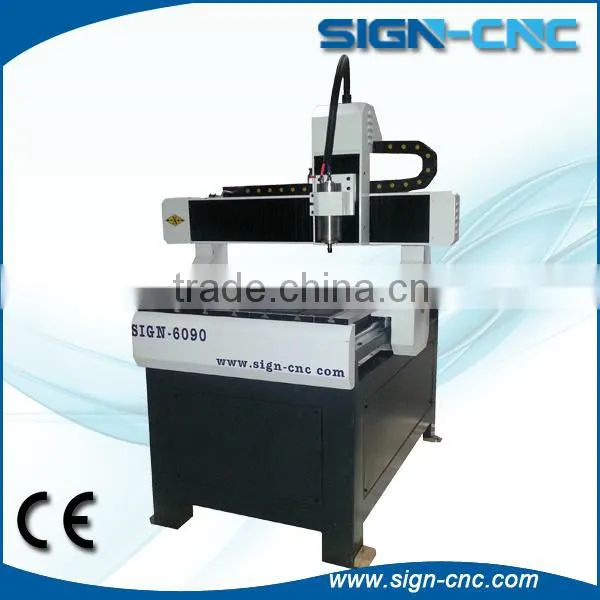

Economical Wood Stone Marble Granite Metal Advertising Engraving Cutter CNC Router Machine
Features:
1. domestic well-known brand, with high speed and efficiency.
2. with the memory of the break point, guarantee that can process the accident or previous day.
3. unique preservation way of the zero point.
4. Welded structure makes our routers more stable and the positioning accuracy is more accurance.

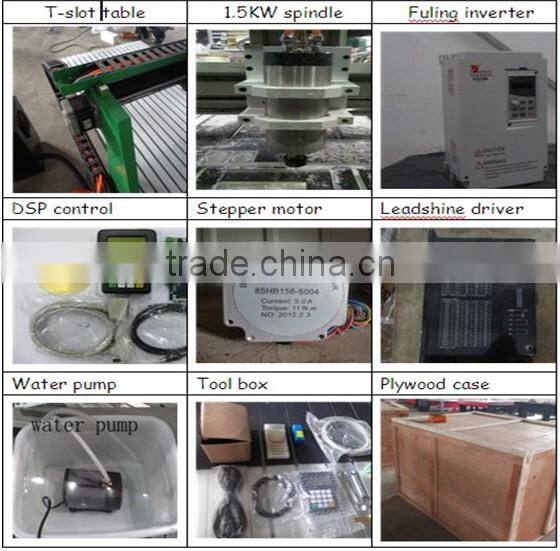

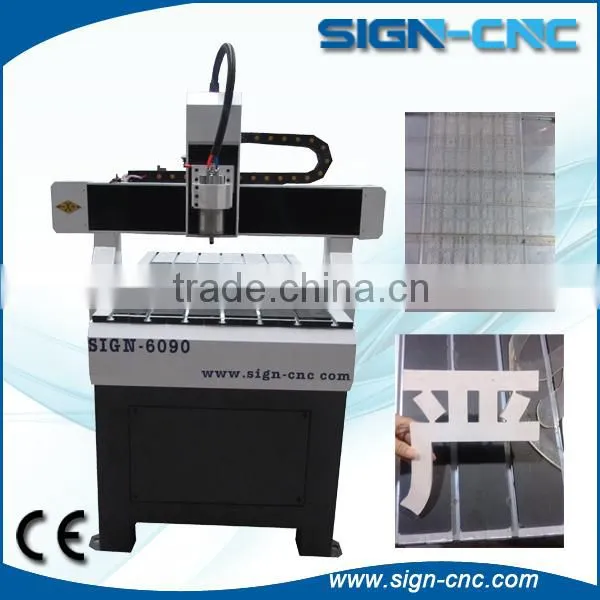

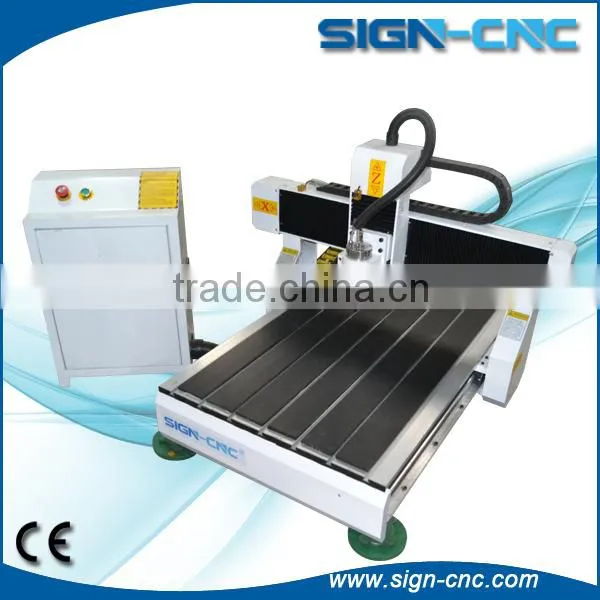

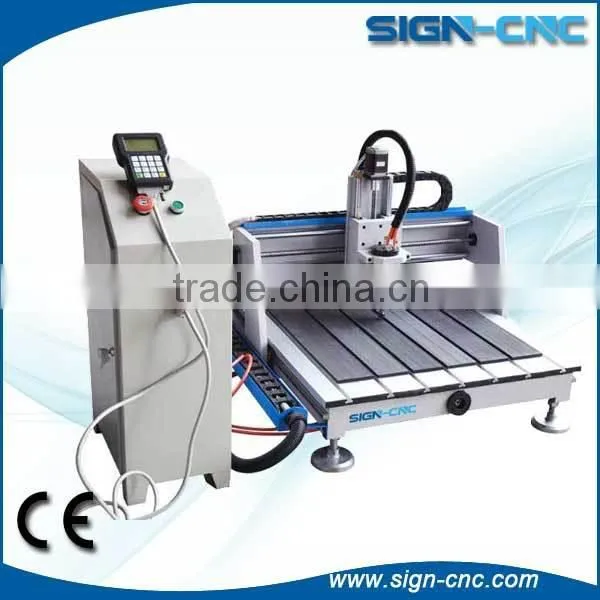

Advertising cnc router 6090 parts:
Parameters:
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
600x900x120mm |
2 |
Table Size |
720X1135mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Cast Aluminum |
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
7 |
Z Structure |
Ball Screw |
8 |
Max.Consume power |
3.0Kw |
9 |
Max.Speed |
0-6000mm/min |
10 |
Max.Working Speed |
0-3000mm/min |
11 |
Spindle Power Motor |
1.5Kw self-coolant spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Working Mode |
Stepper |
14 |
Working Voltage |
AC220V/50/60Hz |
15 |
Command |
G code, *uoo, *mmg, *plt |
16 |
Operating System |
DSP System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER11 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software, Artcam software |
22 |
Running circumstance |
Temperature: 0~45 Relative humidity: 30%~75% |
23 |
Packing Size |
1300x1050x900mm |
24 |
Net Weight |
165KG |
25 |
Gross Weight |
202KG |
All parameters above subject to change without prior notice | ||
Applications:
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on
materials including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

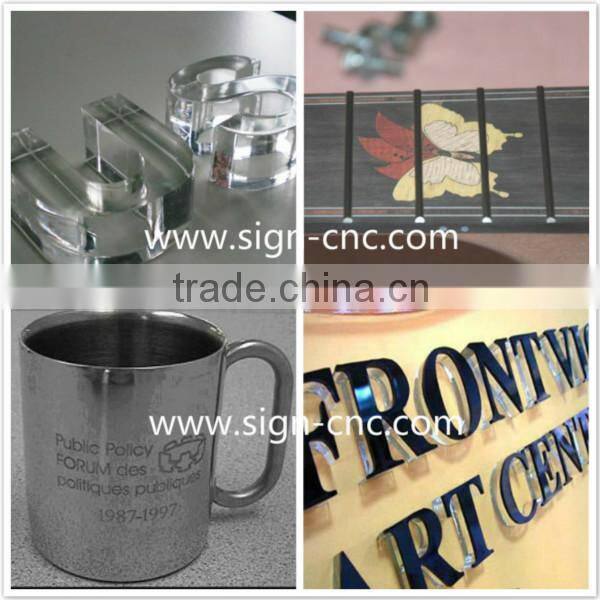

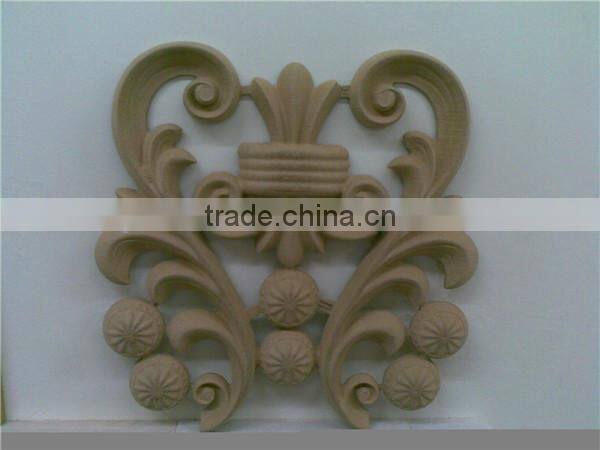

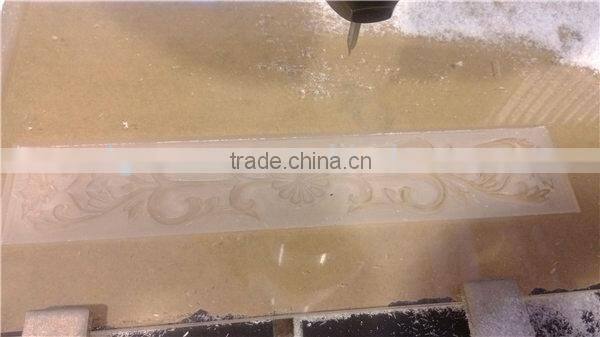

Working samples:

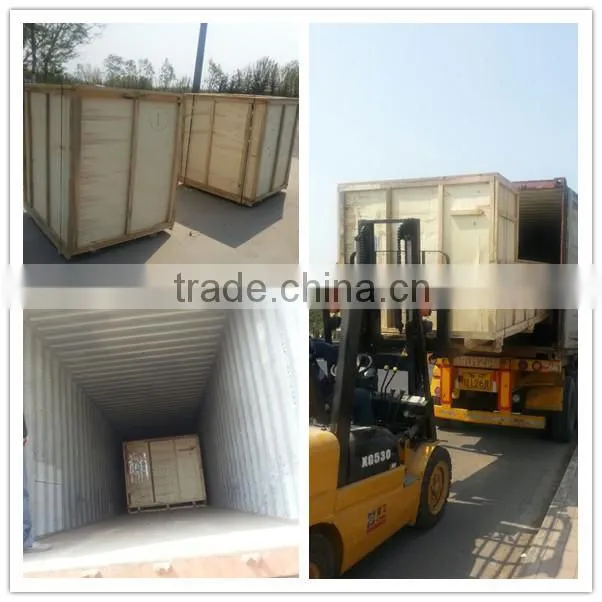

Machine packing:
Training and Use:
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
Warranty and After service
1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours, customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help
Please feel free to contact me for more information.
