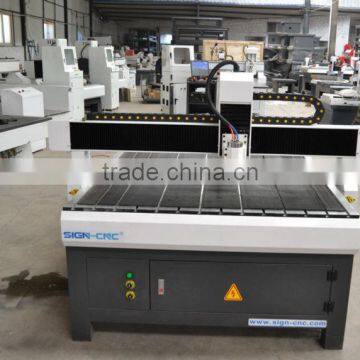

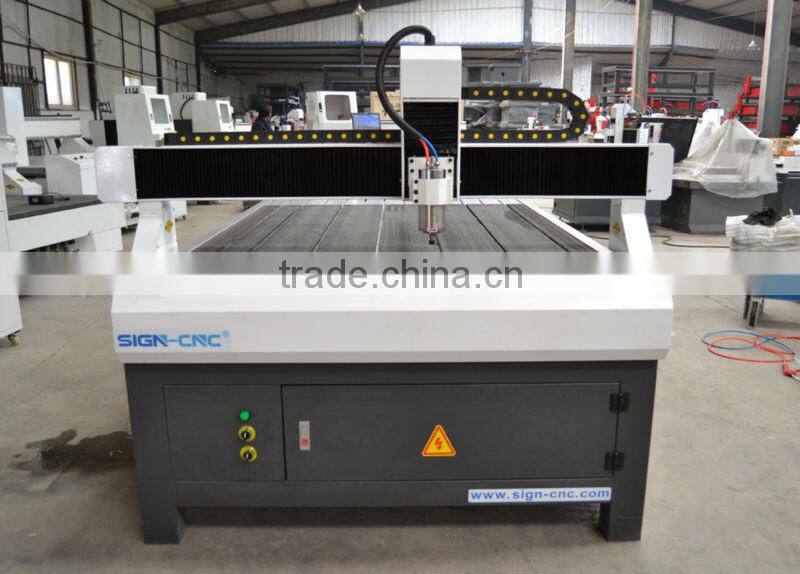

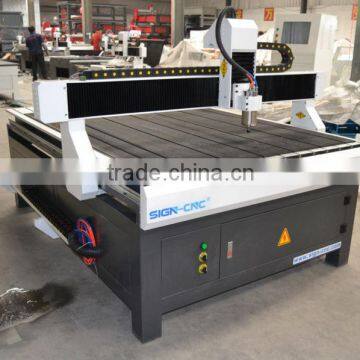

3D Wood Carving Machine/4x8 ft cnc router
1. Machine Features
1. Whole cast iron machine bed, tight and strong.
3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.
4. Low noise water cooling spindle,high rotated speed (24000rpm), can realize only diameter 1mm tools engraving on the hardness materials.

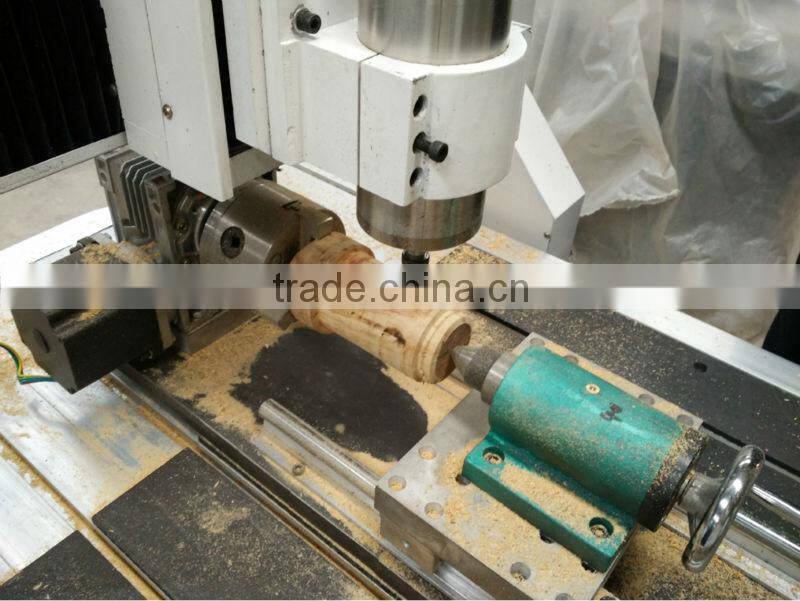

5. Rotary axis, can optional process cylindrical materials.
6. Processing metal materials can add water cooling system, which can cool the tools, avoiding the high temperature breaking tools.
7. Continuing working after the break point/power failure, lower the rejection rate.
8. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using
2.Application
Materials can be engraved:
---metal and non-metal working materials, like stone, wood, soft-metal, acrylic, pvc, mdf, plastic, glass, eva, rubber, etc.
Materials can be cut:
---metal and non-metal working materials, like wood, soft-metal, acrylic, pvc, mdf, plastic, rubber, etc.
3. Machine Samples
4. Technical Parameter
Model |
SIGN-1325 |
X,Y,Z Working Area |
1300x2500x150mm |
Rail type |
round rail |
Z feed Height |
150mm (200mm / 300mm heighten Gantry optional) |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z repositioning Positioning Accuracy |
±0.01mm |
Table Surface |
T-slot Extrusions |
Frame |
Welded steel structure |
X, Z Structure |
Rack and Pinion Drive |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
Max. power Consumption |
2.0Kw |
Max.Rapid Travel Rate |
1000mm/min |
Max.Working Speed |
5000mm/min |
Spindle Power Motor |
2.2 Kw water-cooling (option: air-cooling) |
Spindle Speed |
6000-24000RPM |
Drive Motors |
Stepper system (option: Servo) |
Working Voltage |
AC220V/50/60Hz |
Command Language |
G code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution |
<0.01mm |
Software Compatability |
Type3 software ( option: Wentai software, Artcam software) |
Running Environment |
Temperature: 0-45°C Relative humidity: 30%-75% |
5. Machine Parts
Standard machine parts :
cast iron bed
T-slot table
3 axis round rail and ball screw
2.2kw/3.0kw water cooling spindle power
Ncstudio system
Best inverter
Leadshine stepper motor and driver
Z=150mm
6. Optional Parts
1. Rotary system (D=80mm/100mm/150mm/200mm) , used for engraving some cyliner materials
2. Water tank :use for cooling the cutter when processing metal materials, avoid the cutter stick the materials
3.DSP control system(off line control the machine)
4.water tank(use for metal,glass,stone material engraving,)
8. Packing parts
We use the strong non-fumigation wooden case with steel tube under the pallet, so it can avoid any damage to the machine.
9. After Sale Service
1.We are Professional CNC Router Manufacturer and with the development of our factory ,
2.Technical support by phone, e-mail or MSN around the clock
3.Friendly English version manual and operation video CD disk
4.7-15 working days after down payment or full payment
5..Machine will be adjusted before it is delivered , operation disk/CD was included.
6.Our technician can give you remote guide online(Skype or MSN) if you have any question
7.Engineers available to service machinery overseas, seller and buyer discuss the charges
10. Why select SIGN CNC ?
We offer Woodworking Engraving Machine ,Advertising Engraving Machine ,Laser Marking Machine ,Plasma Cutting Machine .Our machines have already found a good sale in Europe and all over the world .
In addition ,If you are interested in our machine ,we will give you more details and competitive price ,and try our best to satisfy you ,we have perfect after-sale service ,We offer professional technician to teach you by on line if you have any question.
We hope we can establish commercial partner in the near future .
Welcome to SIGN CNC
11. FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
