Home > Products > Advertising CNC Router > Hot sale! 6090 4 axis cnc router for sale/6090 router cnc
Hot sale! 6090 4 axis cnc router for sale/6090 router cnc
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN CNC | Model Number: | SIGN-6090 | Voltage: | 220V/380V |
Power(W): | 1.5KW/2.2KW/3.0KW | Dimension(L*W*H): | 1.4*1.2*1.45m | Weight: | 350kg |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

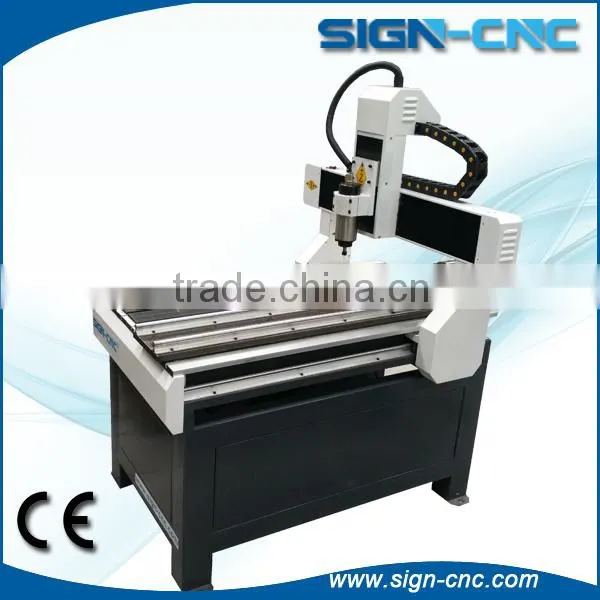

Hot sale! 6090 4 axis cnc router for sale/6090 router cnc
Machine Features
1. Adopts imported ball screw ,long life time,high precision.
2. Moving gantry, good moving stability.
3. High power variable frequency spindle, infinitely variable speed, low noise.
4. Equipped with all cutters and engraving relief function.
5. PCI control system, displaying 3D tracking status, breakpoint memory.
6. Key board and mouse can be operated 3D analog display function.
7.Machine with high cutting speed and good moving stability.
8. Keeping high precision of small machine, and can be engraved large objects.
Technical parameters
Model | SIGN-6090 |
X,Y,Z Working Area | 600x900x150mm |
Table Size | 720X1140mm |
Z feed Height | 150mm (200mm /300mm heighten Gantry optional) |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z repositioning Positioning Accuracy | ±0.01mm |
Table Surface | T-slot Extrusions |
Frame | Whole cast structure |
X, Y, Z Structure | TBI round rails and ball screw |
Max. power Consumption | 2.0Kw |
Max. Rapid Travel Rate | 1000mm/min |
Max. Working Speed | 5000mm/min |
Spindle Power Motor | 1.5kw, 2.2kw, 3.0kw, 4.5kw is optional |
Spindle Speed | 6000-24000RPM |
Drive Motors | Stepper system (option: Servo) |
Working Voltage | AC220V/50/60Hz (380V option) |
Command Language | G code |
Operating System: | Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 software ( option: Wentai software, Artcam software) |
Running Environment | Temperature: 0-45°C Relative humidity: 30%-75% |

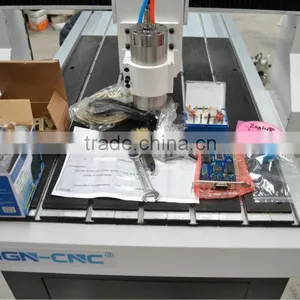

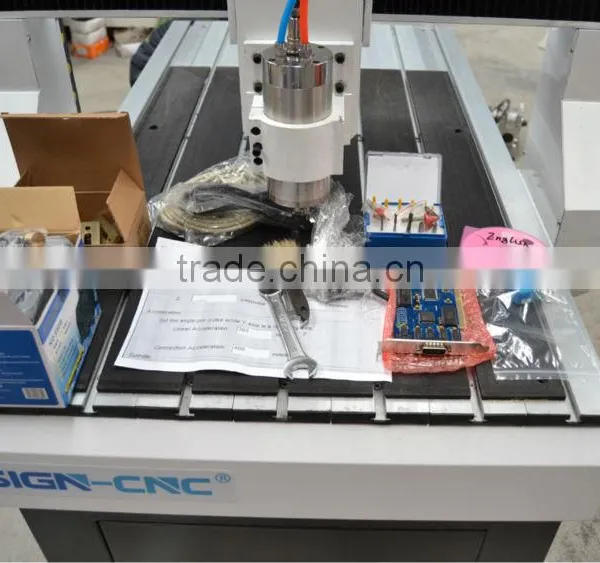

CNC Router standard part

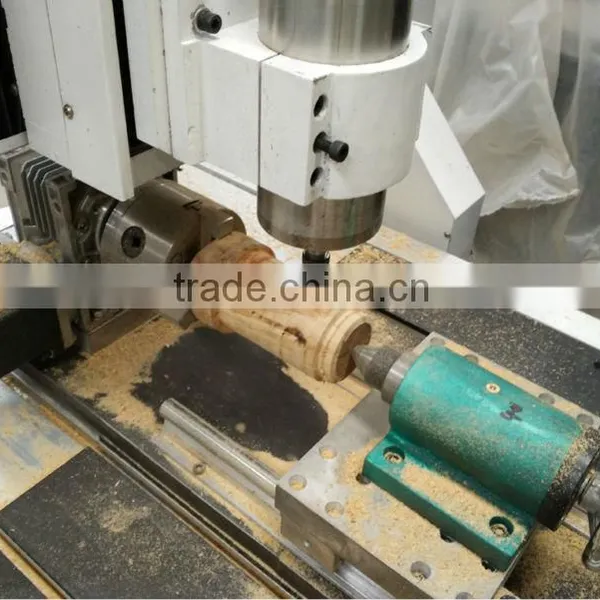

4. Sample
Arcylic engraving cutting
wood engraving cutting
PVC engraving cutting

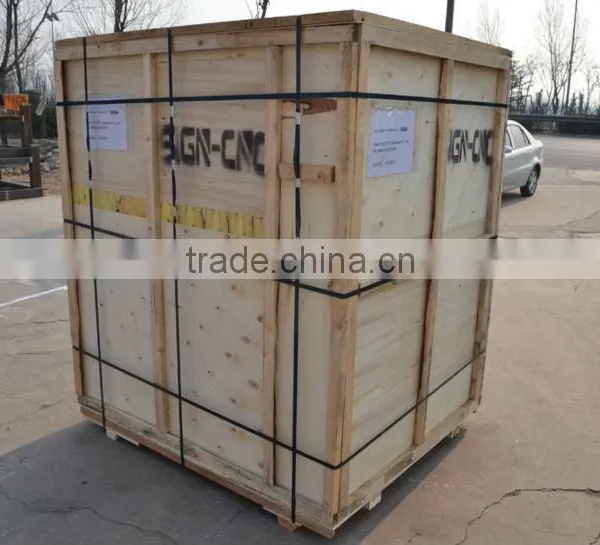

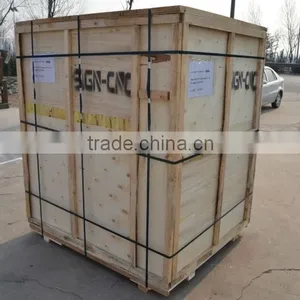

Standard export wooden cases wrapped with water proof materials
1. 24 hour Technical support by phone, e-mail or MSN around the clock
2. Friendly English version manual and operation video CD disk
3.7-15 working days delivery after down payment or full payment
4. Machine will be adjusted before it is delivered
5. Engineers available to service machinery overseas, seller and buyer discuss the charge
1. We are the professional CNC Router supplier and have 5 years’ rich experience
in this field.
2. SIGN CNC is the famous brand in China. We are manufacture and have own factory,
if necessary, you can come here to visit our factory and we will give you a warm welcome.
3. We offer advertising cnc router, woodworking cnc router, stone cnc router and
multi-heads cnc router, cnc router with rotary attachment and other cnc router.
We also have laser machines and metal cutting machine.
4. Our machines have already found a good sale in Europe and all over the world.
If you tend to know our machines, we will give you more details and competitive price
1.I want to buy one cnc router machine , buy i do not know how to choose ,what should i do ?
According to our professional experience, choose one suit cnc router machine , it depends on your max working size and main processing materials ,please tell me your processing we can give my advice.
2. which computer version the cnc router support?
Our standard operating system is Ncstudio, it support windows xp system , if you want to the machine support win7 /win8 system, we can suggest you the March3
3.if i want to engraving round material,what kind of equiment should i choose?
We have rotary device support round material engraving,for choose suitable dimeter,
please tell me your round material max dimeter.
