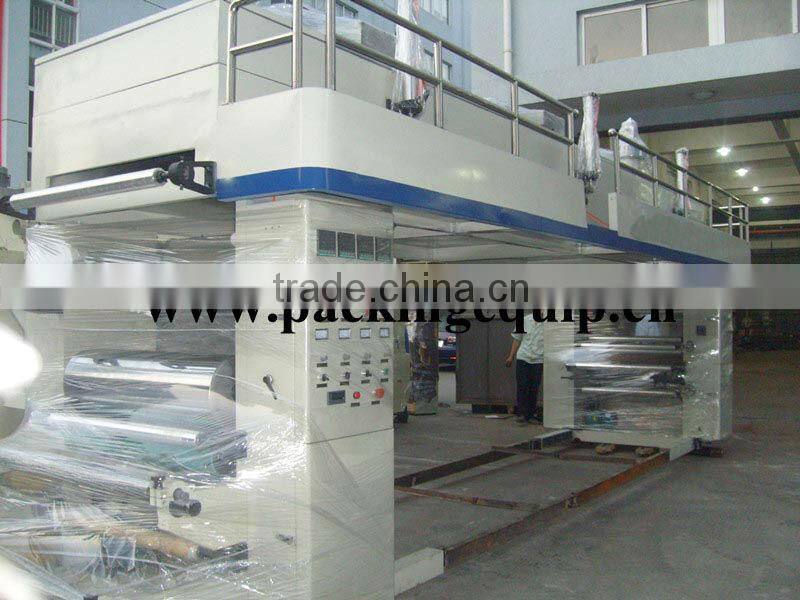

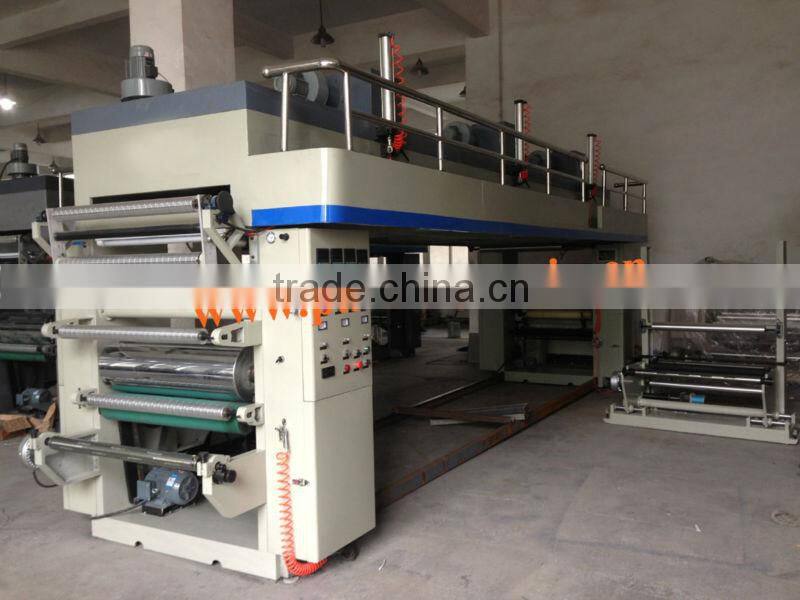

FG-A800/1200 High-speed Dry Lamination Machine

FG-A800/1200 High-speed Dry Lamination Machine photo-1
US$ 25,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
Huana Brand
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin China
Brand Name Huana Brand
Model Number FG-A
Voltage 380V, 3Phases
Power(W) 35KW
Dimension(L*W*H) 9.5*2.3*2.8M
Weight 4500KGS
Certification CE Certification, ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

High-speed dry lamination machine /dry laminator is used to laminate BOPP,PET,CPP,PVCD,al-plated film,al-tissue & comound film.

Main features:

1-       Lamination and coating adopts double inverter motors.

2-       Dry box tension controlling adopt pressure sensor automatically adjusting.

3-       The first unwinding station adopts photoeyes EPC controlling system, the second unwinding station adopts two stations (double unwinder)

4-       Lamination and coating adopts air-cylinder pressing.

5-       Rewinding unit adopts moment motor(torque motor) to control the tension.

Parameters:

Model

FG-A800

FG-A1000

FG-A1100

FG-A1200

Laminating Material

Plastic film, Paper, aluminium foil, compound film etc.

Laminating layer

2layers

2layers

2layers

2layers

Max. width of lamination

800mm

1000mm

1100mm

1200mm

Lamination speed

90-120m/min

90-120m/min

90-120m/min

90-120m/min

Mechanical speed

150m/min

150m/min

150m/min

150m/min

Max. rewinding/unwinding diameter

600, 800

600, 800

600, 800

600, 800

Dry box temperature available

120°C

120°C

120°C

120°C

Total Power

48KW

50KW

53KW

55KW

 FG-A800/1200 High-speed Dry Lamination MachineFG-A800/1200 High-speed Dry Lamination Machine
