Help CenterPortable AC Solar Kit 1000W to 5000W
Related Products
Specifications
1, For AC Home Loads Using2, Durable Solar Kits
3, Back up 3 Days
4, High Solar Power Efficiency
5, Top-end Power Inverter
1. Overview
In this system, 2160W solar module transfers the solar energy to electricity which charges the 24V battery through three 30A controllers. The battery bank can stock electric energy which then can be supplied, through an inverter, to the load.
2. Constitute of the system and the connection
1. Constitute
The system consists of 12pcs 180W solar modules, 3 solar charge controllers Solarix PRS3030, 12pcs 1200AH-2V batteries, 1 inverter SPHS3000-224 and other accessories.

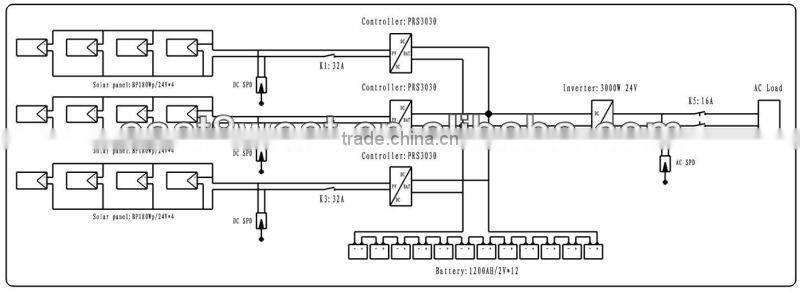

2.System schematic diagram
(Diagram 1)
3,System installation
1,Set the foundation well referring to the following diagram

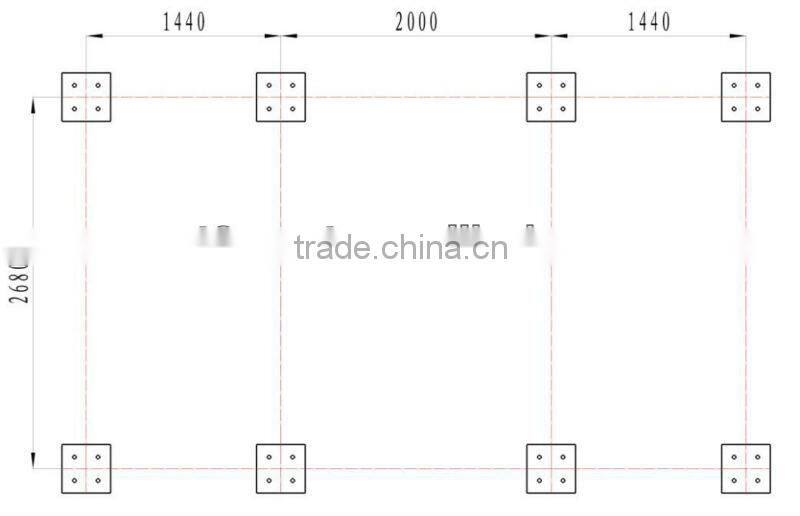

Supporter Foundation Configuration(Diagram3-1)
2, Install the supporters on the concrete foundations Diagram 3-2:

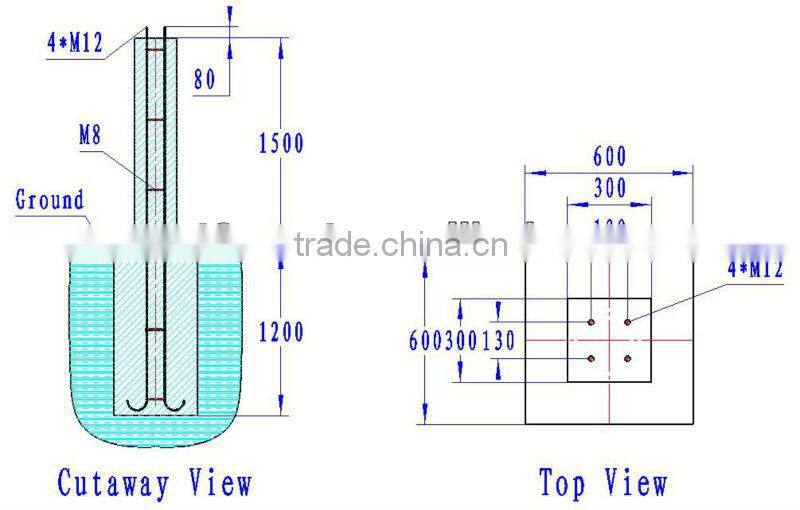

Concrete Foundation(Diagram3-2)
3, Supporter and Solar Module Installation Diagram(Diagram3-3):

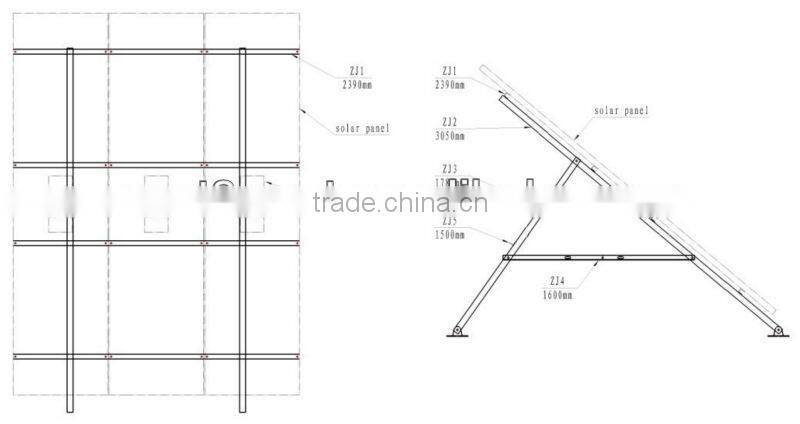

Supporter Installation Diagram(Diagram3-3)
4,Wiring follow diagram 5. The 6pcs solar module wire led into one junction box and led out in parallel.

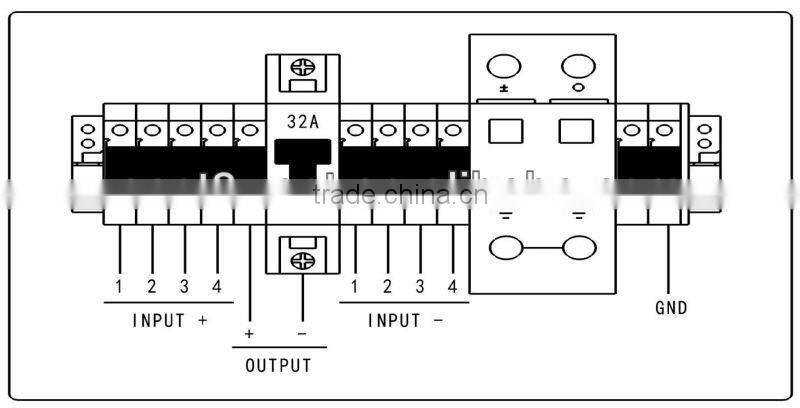

Junction Box Wring(Diagram 4-1)
5,12pcs batteries put in series--24V
Battery Wiring Diagram (Diagram 4-2)

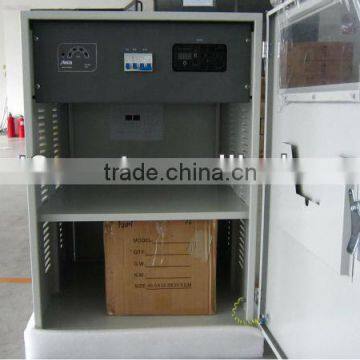

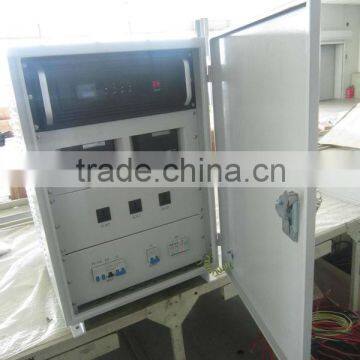

6,Connect the terminals of battery outgoing wire, 2 junction box output wires (PV1&PV2), connection between load and distribution box. Then the installation is over. Layout in the distribution box and wiring.

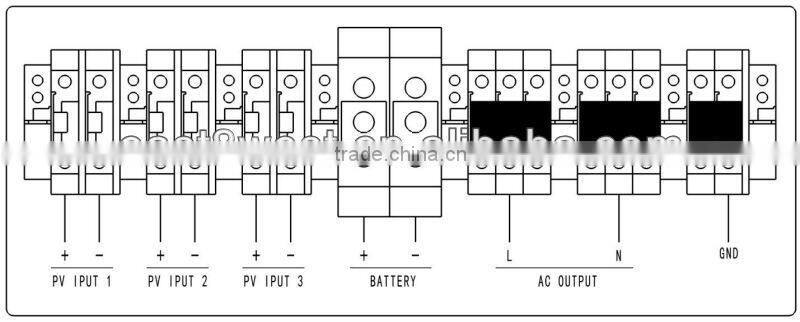

Wiring(Diagram 4-3)
4,Operation
1Switch on K1 and K2 and K3 (Refer to Diagram 1), the battery will be charged through the controllers.
2,Switch on K4 and the inverter, there comes AC output.
3,Switch on K5, Multi-purpose socket will have AC output.
5,System maintenance
1 Clean the solar modules with soft cloth or wash them every week or every month. Cover the solar modules with tarpaulin when there is sandy storm.
2,Check the bolts of the solar panel holder every 6 months.
3,Keep the battery far away from fire,and ensure that the batteries are with 30%capacity at least or there will be a discount on the life of the battery
4,Check the controller and the inverter every 6months.
