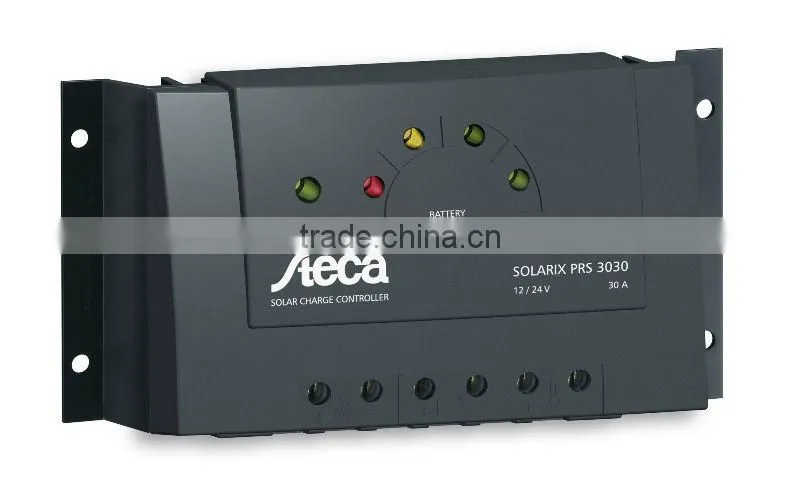

Help CenterSolar Charge Controller/Solar Controller/Solar Regulator (PRS3030)
Related Products
-
Solar Charge Controller/Solar Regulator-20A (PRS2020)US$ 30 - 60MOQ: 1 Set -
Solar Charge Controller/Solar Controller/Solar Regulator (PRS1515)NegotiableMOQ: 1 Set
-
Solar Charge Controller/Solar Controller/Solar Regulator (PRS1010)NegotiableMOQ: 1 Set
-
Solar Charge Controller/Solar Controller/Solar Regulator (Solsum 10.10B)NegotiableMOQ: 1 Piece
-
Steca Solar Charge Controller 8A (Solsum 8.8B)US$ 20 - 40MOQ: 1 Piece

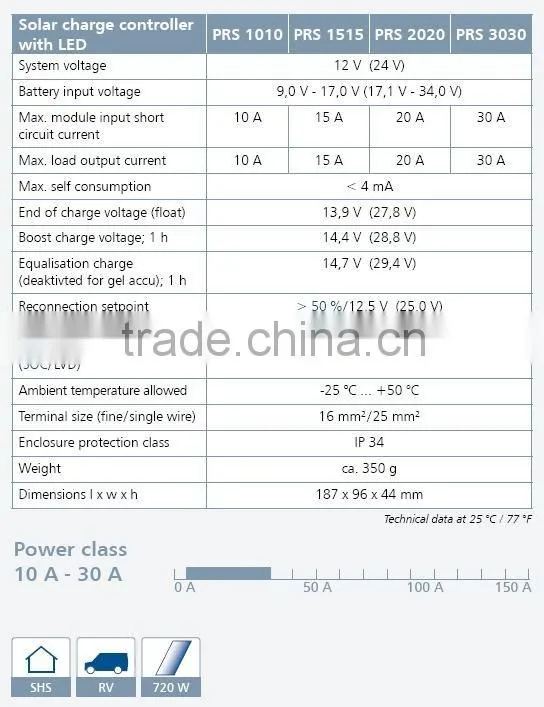

Specifications
Solar Charge Controller/Solar Controller/Solar RegulatorSolar System Controller
Low-loss serial controller
The simplicity and high performance of the new Steca Solarix PRS solar charge controller make it particularly attractive. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.
Several LEDs in various colours emulate a tank display, which gives information on the charge status of the battery. Here, Stecas latest algorithms are employed in order to guarantee optimal battery maintenance. The Solarix PRS charge controllers are equipped with an electronic fuse, thus ensuring the optimal protection. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.
The Solarix PRS charge controllers are universal charge controllers, which means they can be used with lead-acid batteries or gel batteries without the need for complex configuration settings.
For larger projects, the charge controllers can also be equipped with special functions. These include the night light function, and selectable charging plateau and deepdischarge protection voltages.
Functions
Low-loss serial controller
PWM-controlled constant-voltage charging
Battery charging with automatic charging
mode selection (float, boost, equal)
Recognises and carries out a maintenance charge
(boost charge every 30 days if idle)
Automatically adjusts to the voltage level 12 V/24 V
Current-dependent load deactivation
Automatic load reactivation
Temperature compensation
Grounding on the plus side
Integrated self test (start voltage 17.0 V)
Made in Germany (development and production)

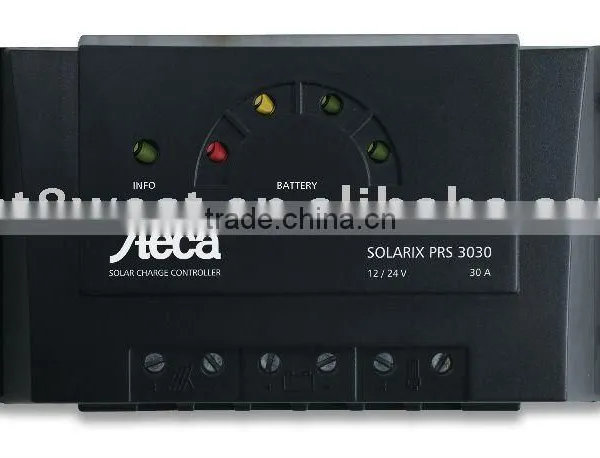

Display
4 separate LEDs to display the battery charge status
LEDs (red/green) to display the function status
Electronic protection functions
Battery-overload protection (HVD)
Deep-discharge protection (LVD)
Automatic electronic fuse
Reverse-polarity protection at module input,
of the load and the battery connection
Reverse-polarity protection of the module
Short-circuit protection of the load and the module
Good electromagnetic compatibility
Idling protection in case no battery is connected
Prevention of back current into the module
Integrated temperature compensation of the end-ofcharge
voltage (0 °C to +50 °C, factor -4mV/K/cell)
Update Date:2010-05-21 19:58:42
