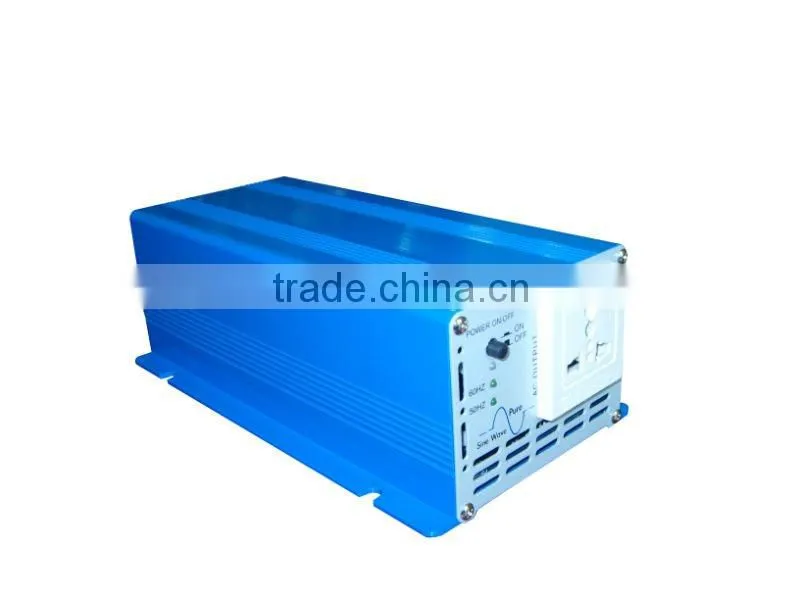

Car Power Inverter 300W (SPHS 300)

Name: Car Power Inverter 300W (SPHS 300)
Brand: SPHS
SKU: 118436795
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

SPHS

Model Number:

SPHS 300

EastWest Energy Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name SPHS

Model Number SPHS 300

Output Power 201 - 300W

Output Type Single

Size 250*129*82mm

Weight 1.9 kg

Input Voltage 12/24/48 V

Output Voltage 110VAC ± 5%//220VAC ± 5%

Type DC/AC Inverters

Output Frequency 50Hz ± 3%/60Hz ± 3%

Output Current 0.6A

Specifications

Car Power Inverter 300W
DC 12V/24V Input, AC 220V output
High efficiency 90%
Made in Taiwan

Item	Production Type
	SPHS300-212	SPHS300-224		SPHS300-248
Continuous Output Power	300W
Surge Rating	600W
Efficiency(full load)	>87 %
No Load Current Draw	< 0.7A (12V)	< 0.4A (24V)			< 0.2A (48V)
Output Waveform	Pure Sine Wave
Frequency(Switch Selectable)	50Hz ± 3%/60Hz ± 3%
Output Voltage	110VAC ± 5%//220VAC ± 5%
input Voltage	10-16VDC(12V)	20-32VDC(24V)	40-64VDC(48V)
Temperature protection	55 ºC ± 5 ºC
Protection	Overload/Short Circuit/Reverse Polarity(Fuse)/ Over or Under Input Voltage Over Temperature
Fan Control	• 5-stage thermal control fan

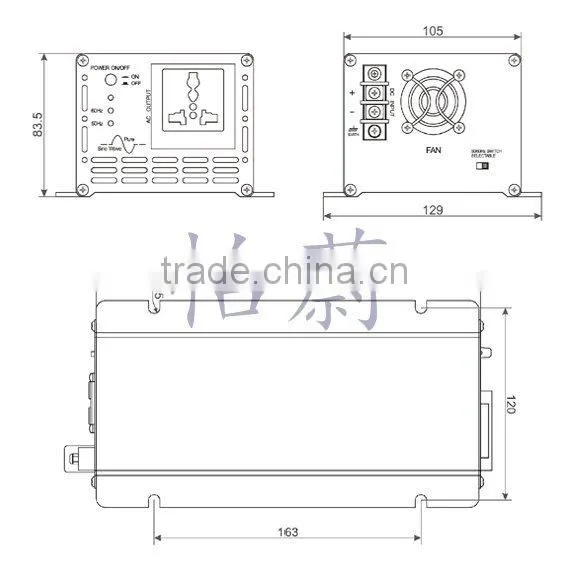

Dimensions(mm)	250×129×82
Net weight (kg)	1.9
Gross weight (kg)	2.8
