Solar Steca Grid Inverter 3600W

Solar Steca Grid Inverter 3600W thumbnail-1
Solar Steca Grid Inverter 3600W photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Steca
Model Number:
Steca Grid 3600W
Contact Supplier Request Quote Chat Now
EastWest Energy Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Brand Name Steca
Model Number Steca Grid 3600W
Output Power 1 - 200KW
Output Type Single

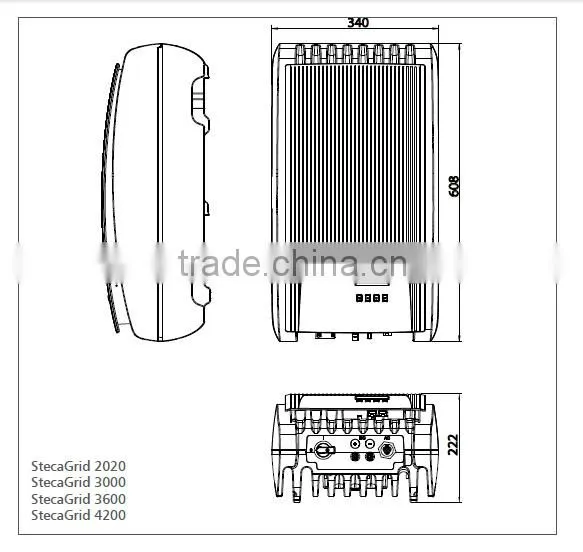

Size 340*608*222mm
Weight 9kg
Input Voltage 350-845V
Output Voltage 185-230V
Type DC/AC Inverters
Output Frequency 50Hz and 60Hz
Output Current 16A

Specifications

Highest efficiency,
Simple installation,
Made in Germany,
Long service life,
Integrated data logger

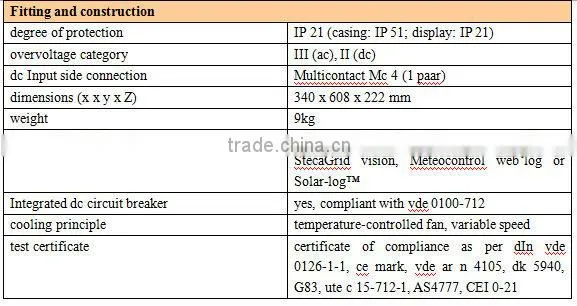

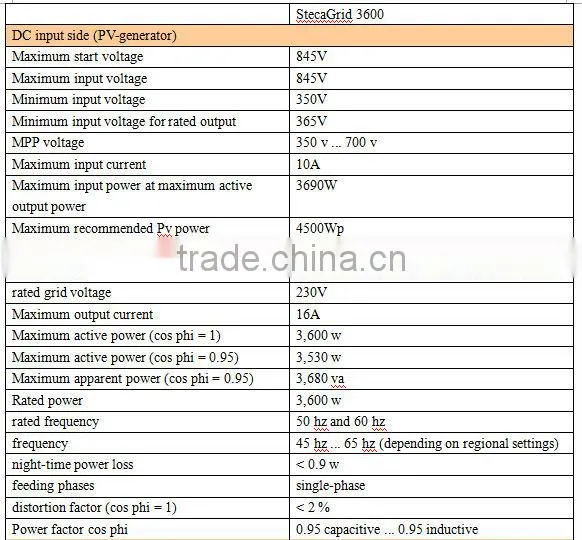

Specifiaction of Steca Grid Inverter 3600W:



Inverter topology

the new “coolcept” inverter topology, with an innovative circuit design that achieves highest efficiency, has now been integrated into these StecaGrid inverters.

the “coolcept” inverter topology is based on a single-stage transformerless switching concept that uses proven standard components to implement symmetric step-down converters with downstream pole-reversing circuits.




Highest efficiency with longer service life

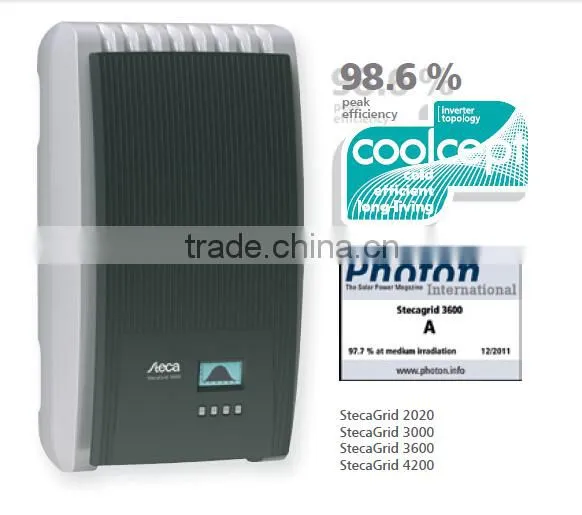

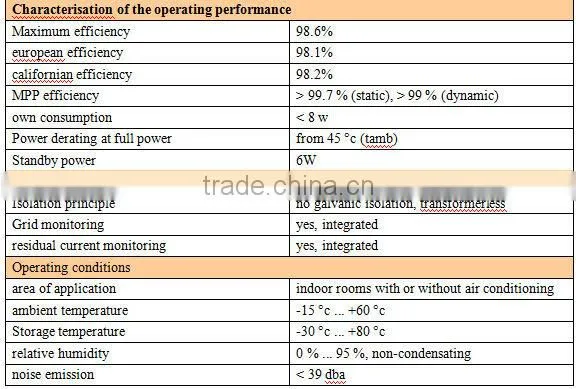

the high efficiency results in a peak efficiency of 98.6 % and a european efficiency of up to 98.2%, which results in less lost power that must be dissipated into the environment. this improves your yields.

the efficiencies of these inverters are only very slightly dependent on the module input voltage. this allows the number and type of modules to be freely selected without resulting in a yield loss.

In addition to this, a new and unique cooling concept inside the inverter ensures an even distribution of the dissipated heat and a long service life for the device.



Product design and visualisation

for the first time, the very high efficiency allows the use of a design housing made of plastic. this offers many advantages, for example in the installation. the overall surface temperature of the StecaGrid remains very low. the inverters have protection class II.

the StecaGrid has a graphical LCD display for visualising the energy yield values, current performance and operating parameters of the system. Its innovative menu allows individual selection of the various measurements.

the guided, pre-programmed menu allows easy final commissioning of the device.



Installation

the lightweights weigh only 9 kg and can be easily and safely mounted on a wall. The supplied wall bracket and practical recessed grips for right and left handed installers make mounting of the device simple and convenient. The device does not need to be opened for installation. all connections and the DC circuit breaker are externally accessible.



Product features

1.Simple installation

2.Integrated data logger

3. Firmware update possible

4. Low housing temperature at full load

5. Functionally perfect, environmentally-friendly plastic housing

6. Lowest possible own consumption

7. Integrated DC circuit breaker

8. Protective insulation according to protection class II

9. Very long service life

10. Droop Mode for integration in hybrid systems

(further information: catalogue Steca Pv off Grid/Single-phase and three-phase ac hybrid systems)

11. Fixed voltage mode for other energy sources

12. Service menu for parameter adjustment

13. 7-year warranty after registration





Displays

1.Multifunction graphical lcd display with backlighting

2. Animated representation of yield



Operation

1. Simple menu-driven operation

2. Multilingual menu navigation



Options

1 System monitoring with Solar-log and web log

2.Can be connected to the StecaGrid vision display unit or a large-format display.



Solar Steca Grid Inverter 3600WSolar Steca Grid Inverter 3600WSolar Steca Grid Inverter 3600W





Solar Steca Grid Inverter 3600WSolar Steca Grid Inverter 3600W
