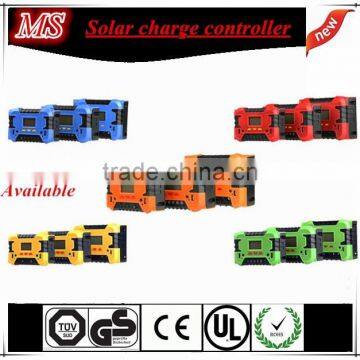

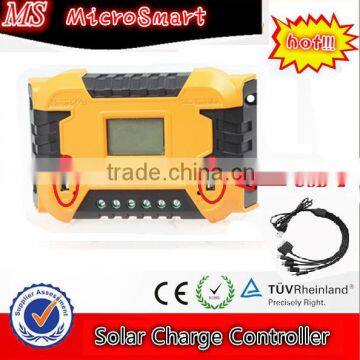

Price Pwm Solar Charge Controller Manual 10A 15A 20A 25A 30A 40A 50A 60A 80A Solar Charge Controller
US$ 11 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
BYGD/OEM
Model Number:
Solar Charge Controller
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Hot New Design 24v 50a Pwm Solar Power Charge ControllerUS$ 38.66 - 39.66MOQ: 1 Piece -
Solar Charge Controller 48 Volt 12V 24VUS$ 11 - 20MOQ: 1 Piece
-
Big Promotion for Hot Sale 30a 12v 24v Auto Solar Charger ControllersUS$ 38.66 - 39.66MOQ: 1 Piece
-
Free Samples Available New Fashional 20A Solar Charger ControllersUS$ 21.8 - 22.8MOQ: 1 Piece
-
Original Design 40A 12v 24v Auto With LCD Solar Charger ControllersUS$ 21.8 - 22.8MOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
BYGD/OEM
Model Number
Solar Charge Controller
Application
Solar System Controller
Rated Voltage
Other, 12V/24V
Maximum Current
10A\15A\20A\25A\30A\40A\50A\60A\80A
ORIGINAL 40A pwm 12V/24V solar charge controller
Product Description
2) Features
- PWM mode with 12v/24v auto

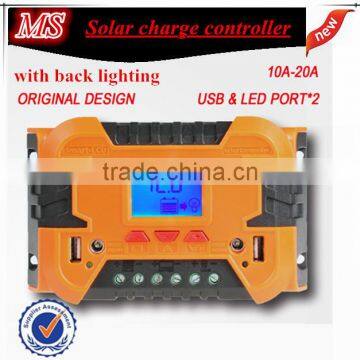

- LCD Display with Backlight

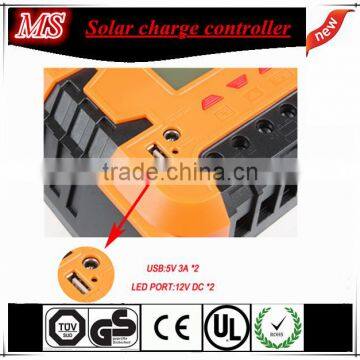

- Dual DC 5v Output for LED lights
- Duoble USB 5V/2.1A max

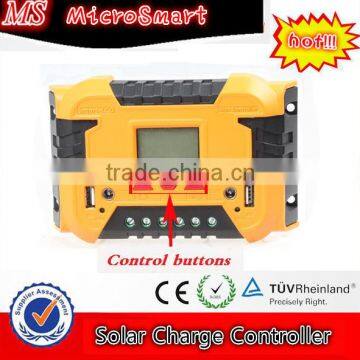

- Simple button operation
- Hard Cover Material
- Timing Mode(1-24hours)
- Automatic Temperature Compensation
- Overload/Short-Circuit Protection
- Reverse Polarity Connection Protection
- Over Voltage Protection
- Low Voltage Protection
3)Protection
- Overload Protection
- Overheat Protection
- Short Circuit Protection
- Reserve Polarity Protection
- High&Low Volatge Protection
4)Technical Data
2016 orginal 40a Solar charger controller 12v 24v for street light | ||
Mode |
MS4024 | |
| Rated Voltage | 12V 24V Auto | |
| Rated Charge Current | 40A | |
| Over Charge Voltage | 13.7V/*2(24V) | |
| Over Discharge Voltage | 10.5-11V/*2(24V) | |
| Low Discharge Reconnection | 12.6V/*2(24V) | |
| Max Solar Input Voltage | 17.2V(12v)/34.8V(24V) | |
| Charge Mode | 3 Phase PWM Charge | |
| USB Output | 5V/2.1A Max | |
| Temperature Compensation | -3mv/℃/cell | |
| Empty Load Wastage | <45mA | |
| Loop Voltage Drop | <200mv | |

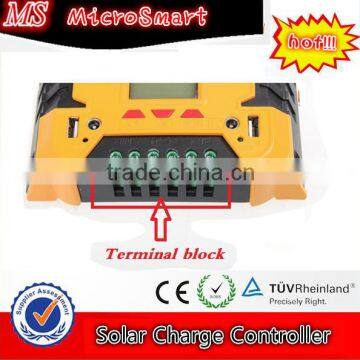

| Installation Cable Area | ≤7# AWG (16mm2) | |
Mounting hole spacing |
90 mm×178 mm --Φ5 | |
| Operating Temperature | -10℃~60℃ | |
| Stroage temperature | -30℃~70℃ | |
| Temperature Testing | Auto Sensor | |
| LCD Display with Backlight | Voltage/Work Mode/Tempature | |
| Protection |
Overload,overheat,high&low voltage, short-circuit, Revese protection |
|
| G.W. | 0.65kg/pc | |
| Size | 188*113*50mm/pc | |
| Warranty | 12 months | |
| Certificate | CE/ROHS | |
4)Appliance
- Solar System
- Solar Power
- Street Light
- Industry
Packaging & Shipping
- Neutral Color Box for piece and Carton for pieces
- Delivery:3-5 days for sample, 10-35 days for order
- Experience in OEM/ODM
-
By Sea Delivery from Shanghai/Ningbo/Shenzhen By Air Departure from Shanghai/Shenzhen Airport By Express Post by DHL, EMS, UPS, TNT
