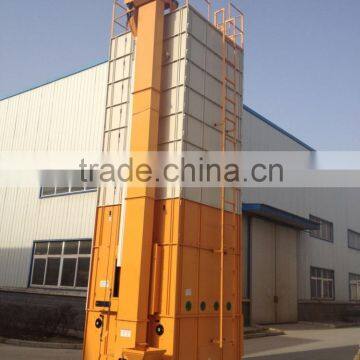

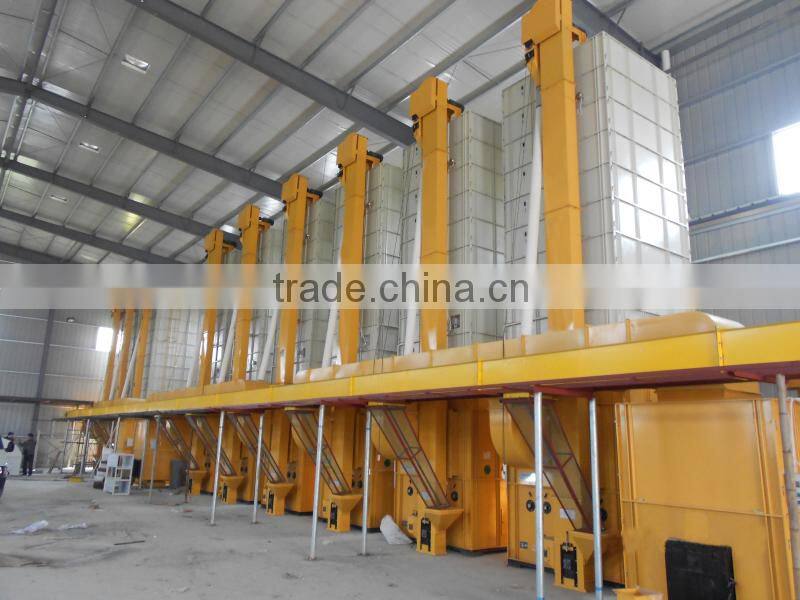

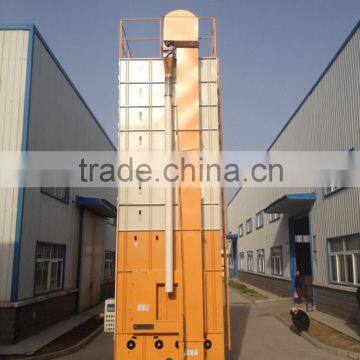

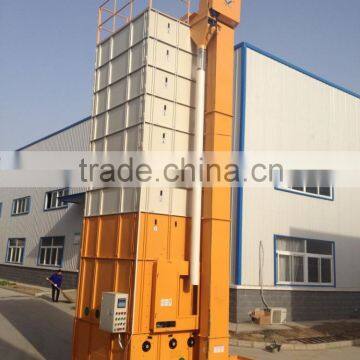

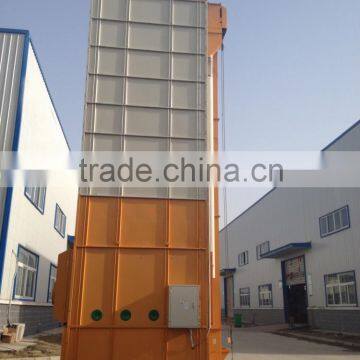

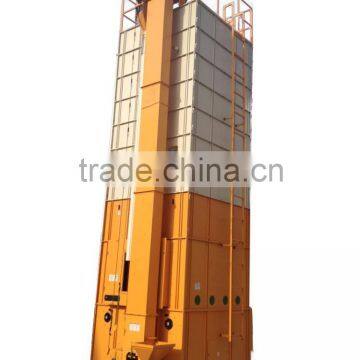

ANON Varieties Of Grain Complete Automatic Low Temperature Drying Machine
Specifications:
1.with advanced & mature design
2.high automatic drying processing
3.low cost
4.available circulation drying
detail parameter below:
Low-temperture Grain Dryer Specification | |||
Model |
5H-10 |
||
Loading capacity |
Paddy(kg) |
2300-10000(one time full filling) |
|
Wheat(kg) |
2700-12144(one time full filling) |
||
Weight(with husk burner) kg |
4800 |
||
Dimension(mm) |
H |
7436 |
|
L |
4828 |
||
W |
2492 |
||
Ventilation Fan |
Model |
4-72-6A |
|
Rated air flow(m3/h) |
6677-13353 |
||
Husk Burner(optional) |
Model |
indirect hot air heating(automatic temperature control) |
|
Ignition mode |
manual |
||
Fuel consumption(kg/h rice hull) |
17-23 |
||
Fuel |
rice hull,wood,Straw,anthracite |
||
Electric Power |
Voltage/Frequrecy |
three phase 380V,single phase 220V/50Hz |
|
Total Motor power (kw) |
7.15 |
||
Function |
Loading time(min) |
paddy |
55-70 |
wheat |
55-70 |
||
unloading time(min) |
paddy |
50-65 |
|
wheat |
50-65 |
||
Thruput kg/h |
910 |
||
Drying rate (%/h) |
1-1.5 |
||
Device |
Safety Device |
full load buzzer,thermal-over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device |
|
Standard Device |
online moisture monitor,grain temperature sensor,fault removal sensor |
||
1.Thermal energy,husk consumption and exhausted ash product listed are for reference only.Actual data will differ from variety,moisture content and impurity. | |||
.
Features
1.Multifunctional design which is applied to paddy,wheat,corn,soybean,rapeseed and other seeds.The dryer adopts indirect heating which is non-pollution and can remove the dust in the grain;
2.Temperture&moisture are monitored throughout the complete duration of the work,automatically,safely and fleetly;
3.In order to avoid the excessive drying,then adopts the automatic water testing stopping devices;
4.Burning the abandoned rice husk,firewood,straw,indirect heat extraction,clean hot air for drying material without any pollution;
5.Breakthrough Tower Drying Technology.This model adopts computer control,makes continuous drying,and achieves circulation drying;
6.Awarded the national patent techology and passed the quality system certification of the dryer;
7.The cost of the fire material & fuel is very lowest, husk of the grain ,straw,coal,diesel oil can be used as the fire material for the Biomass Furnace;
Standard Devices

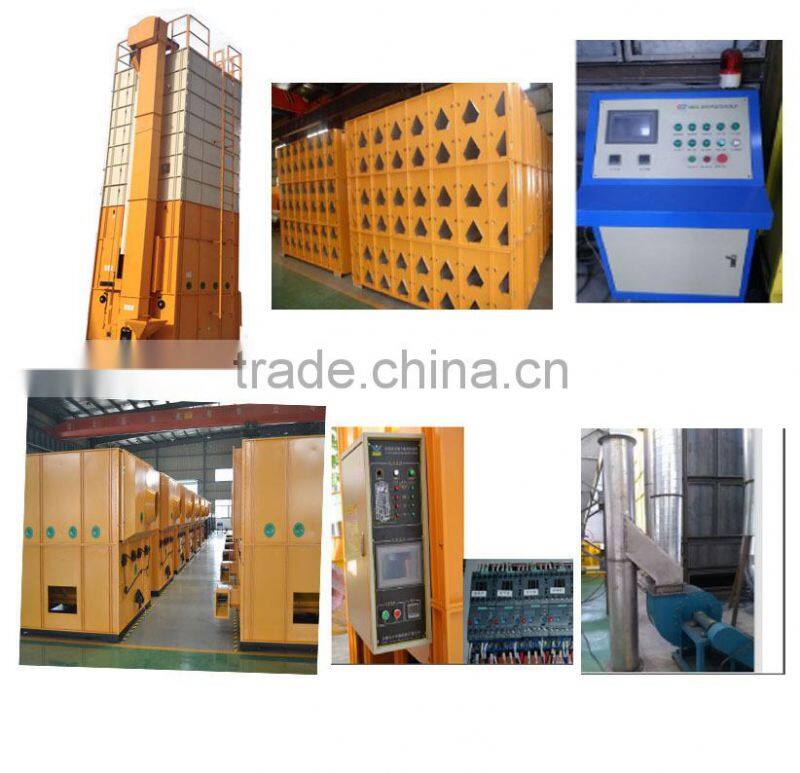

Online Moisture Monitor;Conveying System;Unloading System;Drynig System;Tempering System;Elevator;Exhaust Fan In Low Noise;Automatic Control System;
Installation Details
1.Our company will arrange our engineer by custormer's request to install and debug until the grain dryer can get good drying effect;
2.We will supply basic drawing,installing drawing,and the flowing technical drawing.According to the installation instructions of manufacturer,the customer can install machine by yourself,It also can save cost;
3.If the customer don't need factory installed,we can negotiate to use third party installation;
4.We will assist the buyer to do the commodity inspection and other export affairs;
Payment terms :T/T , L/C,Western Union ,PayPal,Escrow ,MoneyGram
Delivery Time :5-7 working days after deposit , 3-4 working days for inventory
Packing :Neutral Carton,Wooden case for large size
Shipping :By sea , by air and by express delivery
Advantages:
1)fully automatic production line
2)fast delivery
3)easy operate, we provide English version operation instructions
4)we have rich experiences to build the complete production lines at abroad ,and received high reputation from our customers
5)for good quality,best price as well as professional technical support.
6)trusted & guaranteed whole service with professional technical support before and after sales.
After-sales service
1) Assistance to build factory
2) Repairing and maintenance if any problem occur in warranty
3) Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told us, and we will try our best to support

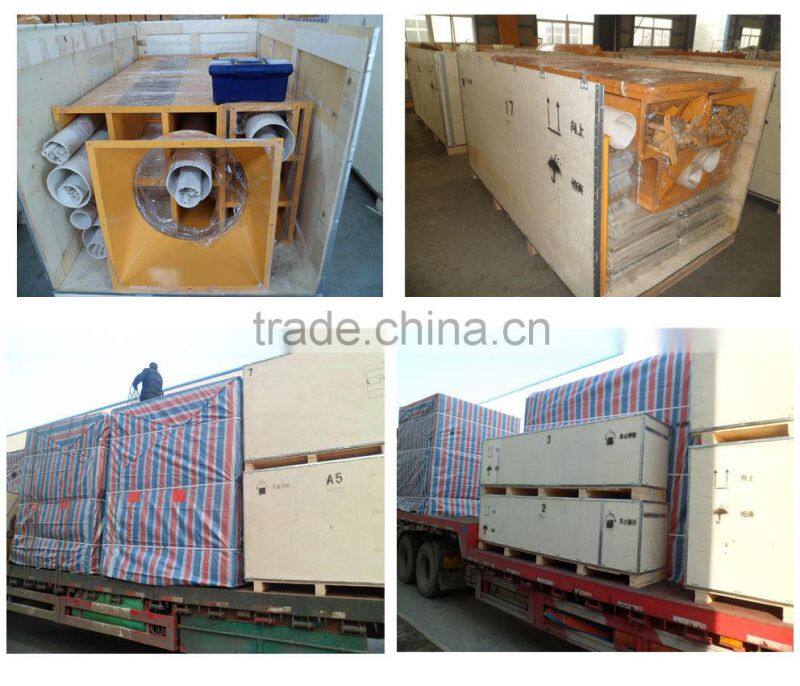

Packaging Detail:wooden case, export packing
Delivery Detail:15-25 days

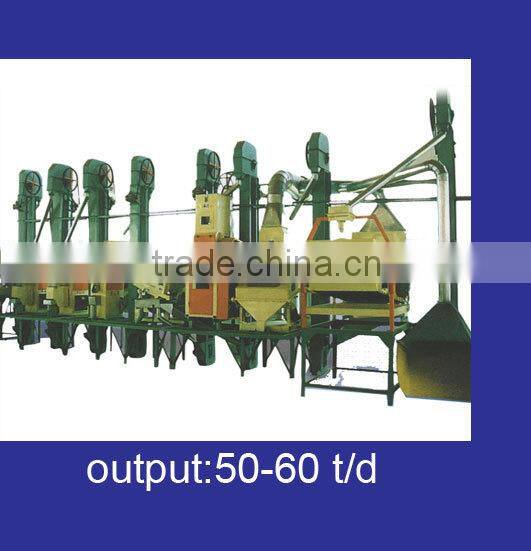

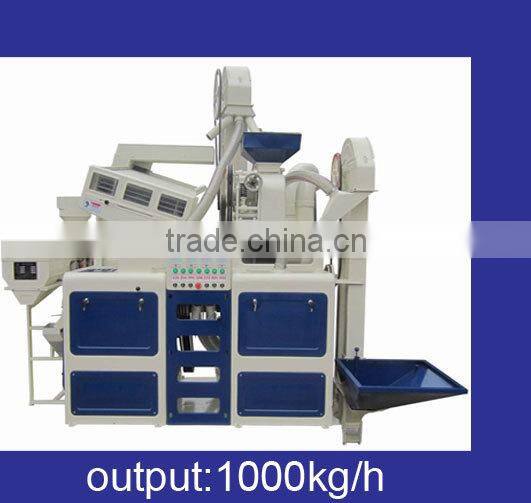

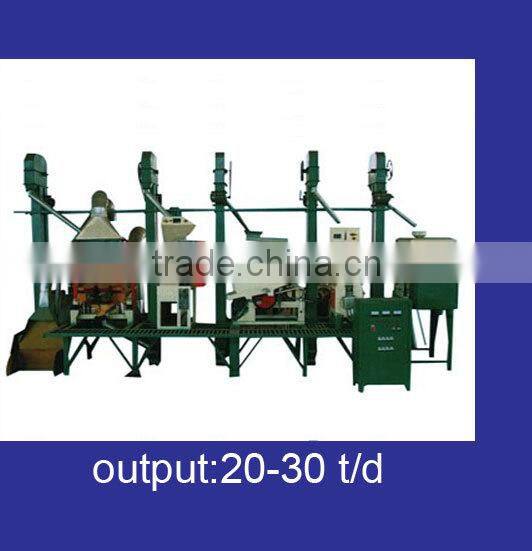

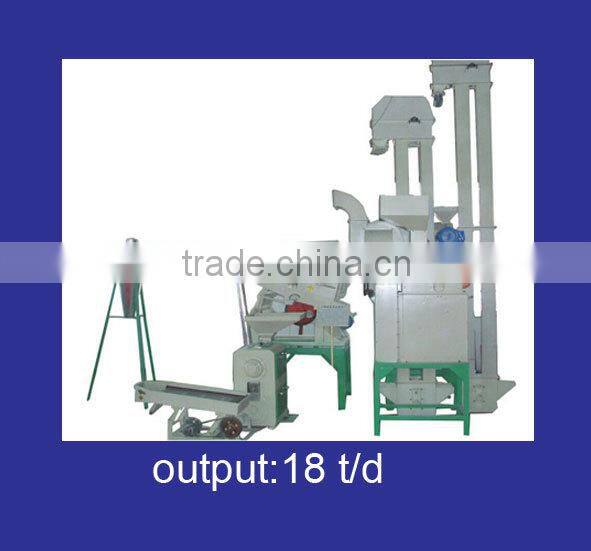

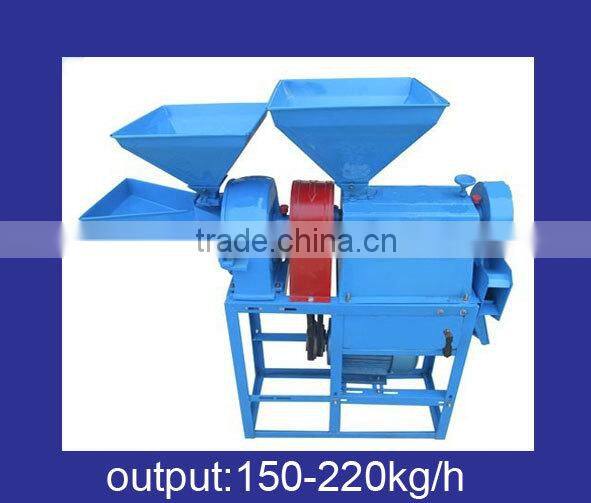

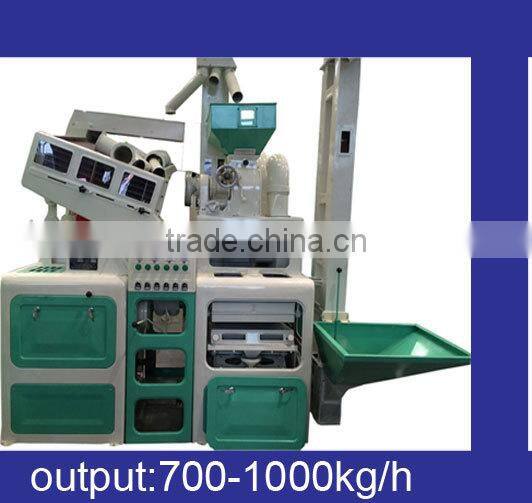

ANON Machine is the manufacturer for different rice milling machines in China, the 18-300ton/day complete rice mill machinery and different kinds of machines like husker, destoner, rice grader, color sorter, paddy dryer, etc.
We also start to develop the rice milling plant and installed successfully in Nigeria, Thailand, India, Sri Lanka, Indonesia and Qatar.
