Steel Silo assemble small grain silos with Aeration system
Who We Are ?
Goldrain Group -------the Manufacturer for the Silo .
What We Do ?
We mainly produce Silo :
1. Flat Bottom Silo
2. Hopper Bottom Silo

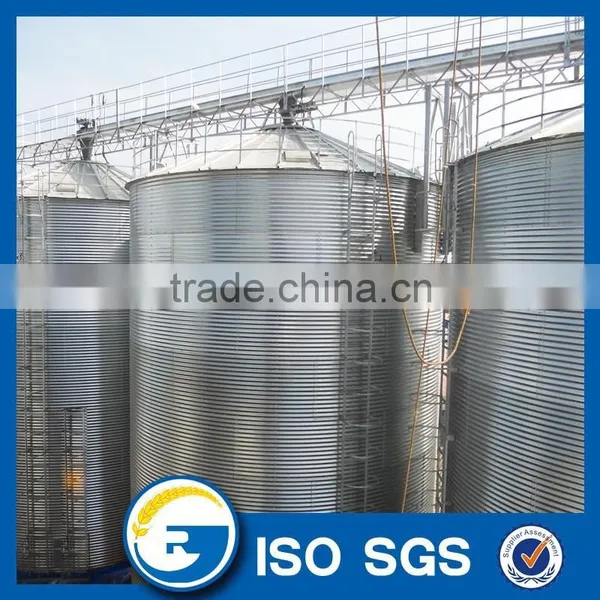

Now we produce the Small Silo-----300 MT Steel silo :

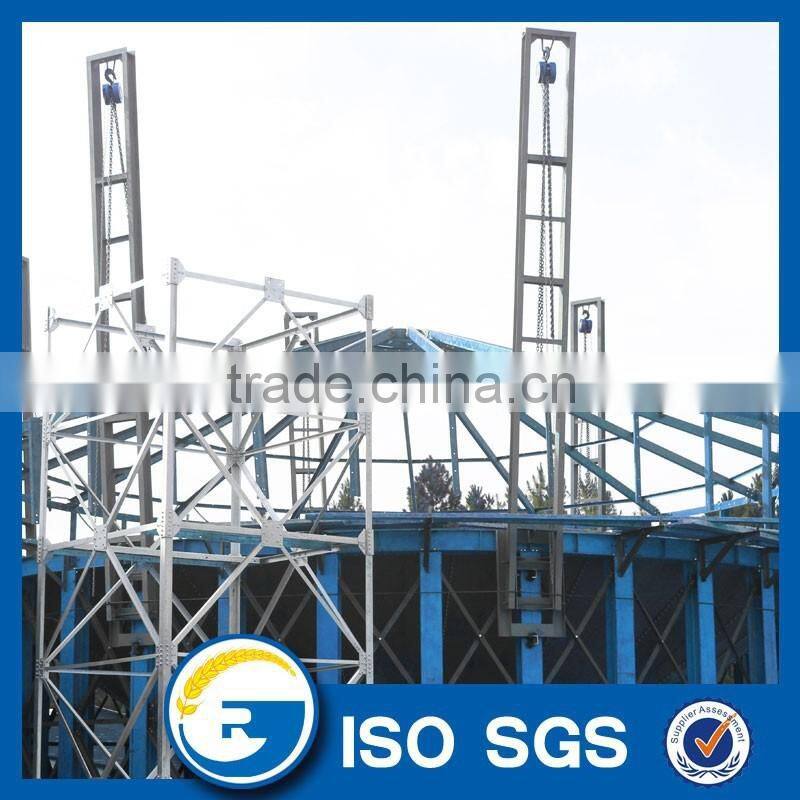

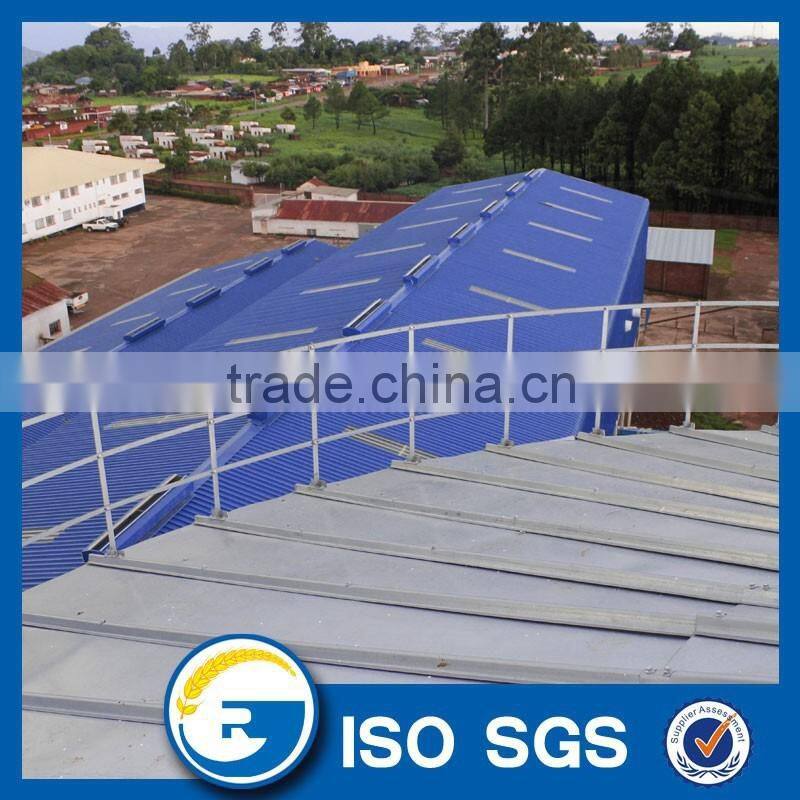

1. Silo Roof :
Roof plate and Purline and ring connected together , also Guard bar around .

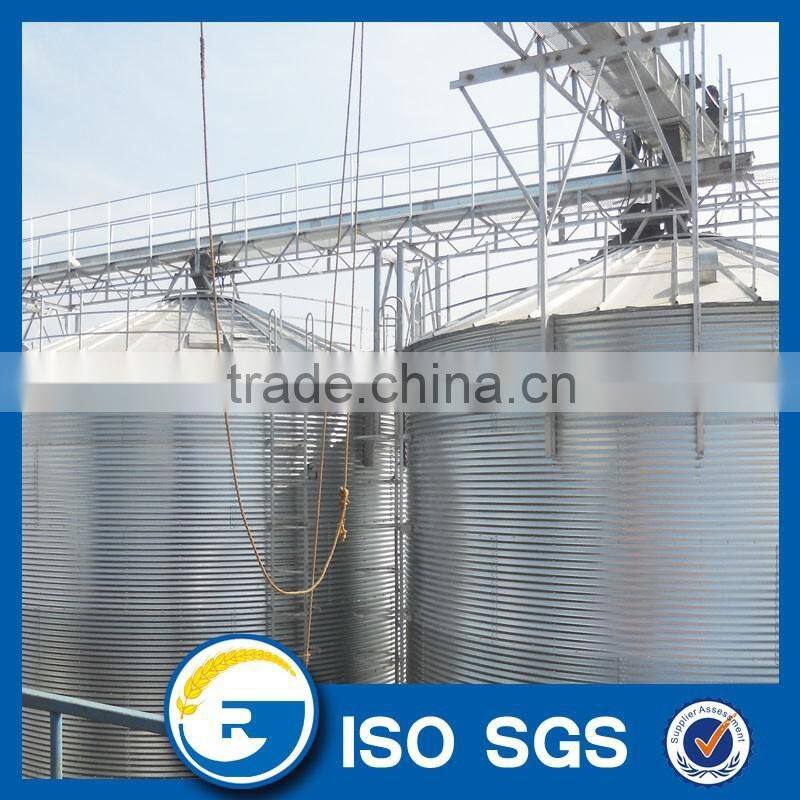

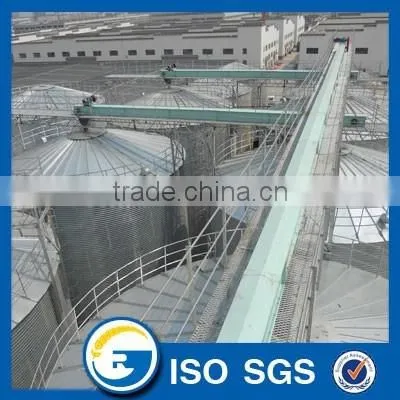

2. Scraper conveyor for Transporting the grain into the silo :

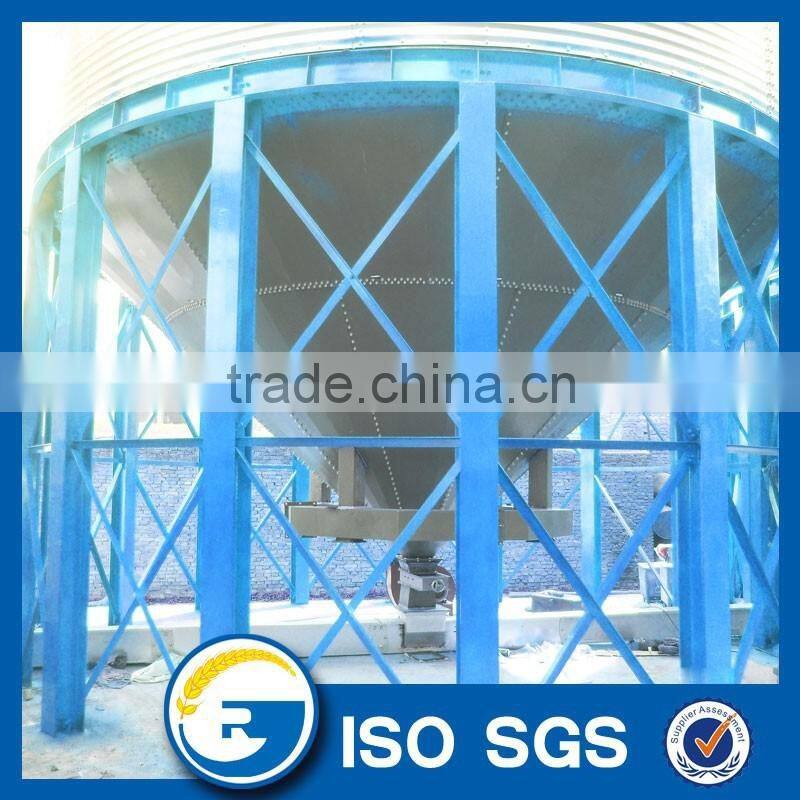

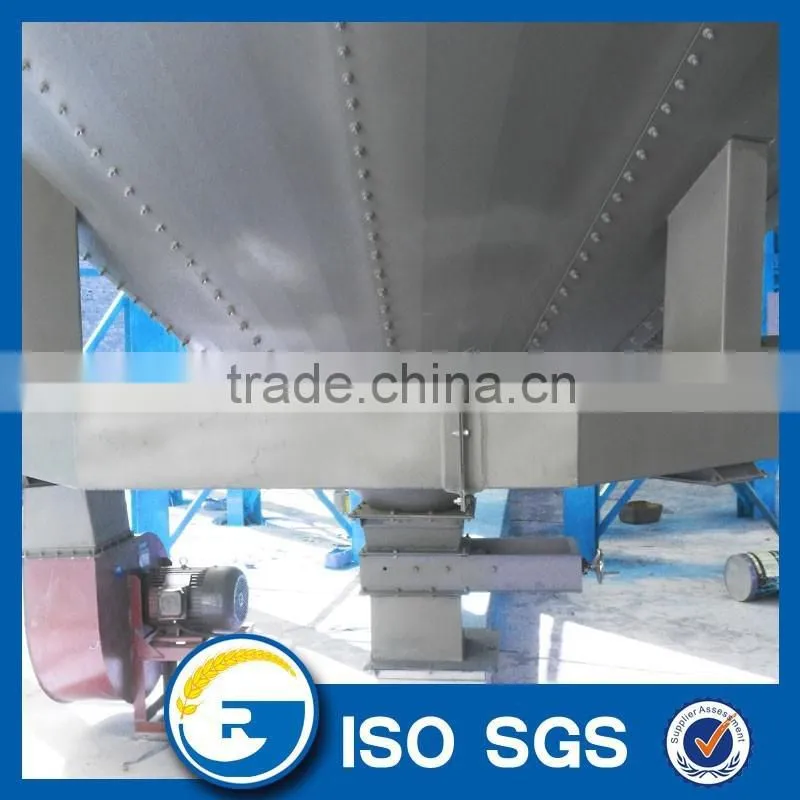

3. Silo Bottom :
The 300 tonnes Small Silo bottom is Steel Cone Base .

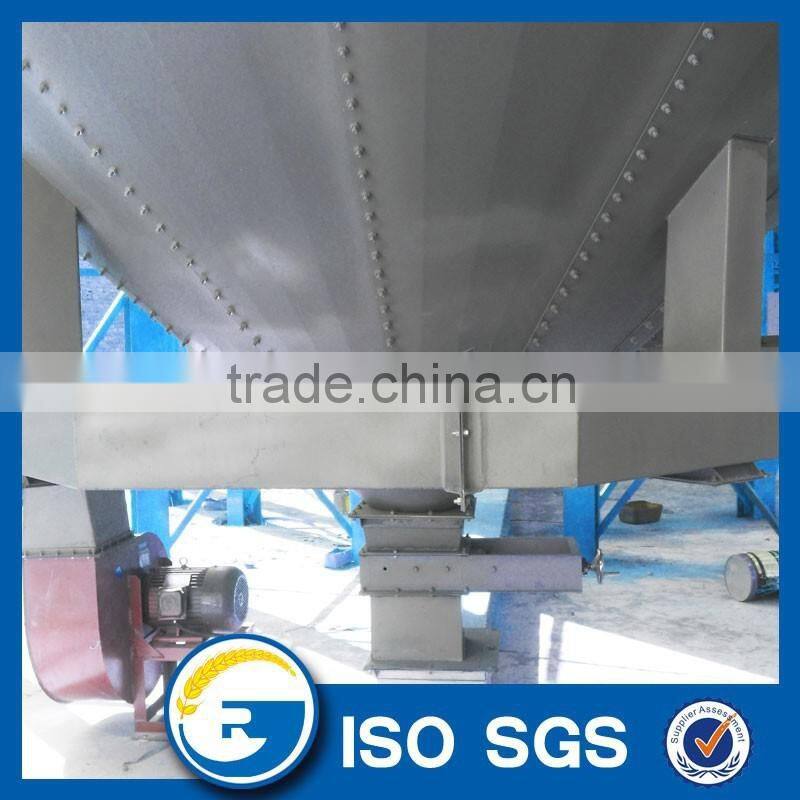

There are Manual gate valve and Electric gate valve for discharging , of course the Sraper conveyor unloading the grain directly from the silo bottom .
1. How can i know the grain state inside the Silo ?
We equip the Level monitor system inside the Silo to indicate product level in the silo, because silos, are built with cone, to prevent bridging in the silo. So as the product flows down the silo, the product levels needs to monitored & measured.
2. How can i control the grain inside the Storage silo stayed a good condition ?
we equip the Temperature control system, Circulation Fumigation system , Aeration system .
To prevent damage to the grain caused by the increase in temperature and humidity,

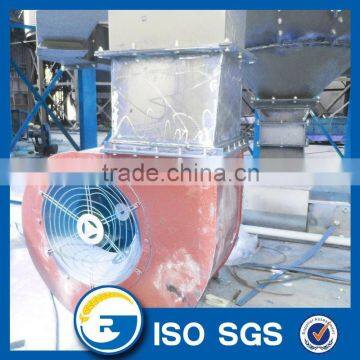

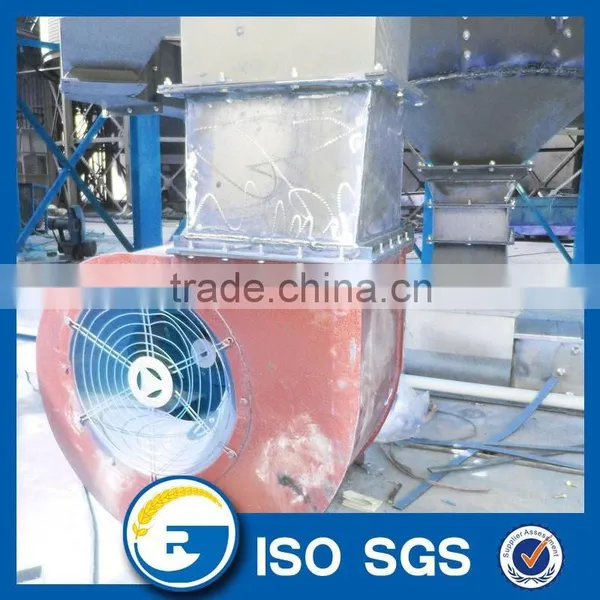

3. What does aeration cooling do?
Aeration cooling creates cool, uniform conditions throughout the grain to preserve grain quality, restrict or prevent mould growth and slow or stop insects breeding. Mould and insect development is slowed at temperatures below 200C and most insects stop reproducing at temperatures below 150C. Unlike aeration drying, aeration cooling can be achieved with airflow of 2-3 litres of air per second per tonne of grain and is best managed with an automatic aeration controller.
4. Can I use aeration to dry grain in storage?
Aeration that provides more than 15 litres of air per second, per tonne of grain can be used to reduce grain moisture content by a few percent. The risk of using less air (smaller fans) is that moisture will be pushed partway up through the grain but not all the way out the top of the silo. This leaves a band of even higher moisture grain susceptible to mould and insect attack.
5. What type of rubber and sealant is best for sealing silos?
Polyurethane based rubbers and sealants should be used for sealing silos. Silicon based products can potentially contaminate the grain. Look for a rubber with a strong memory, that is one that springs back to its original shape after being compressed
