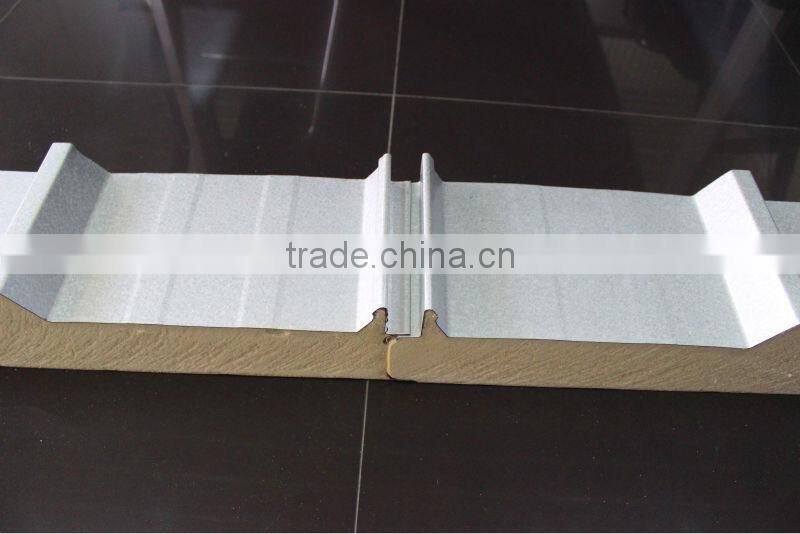

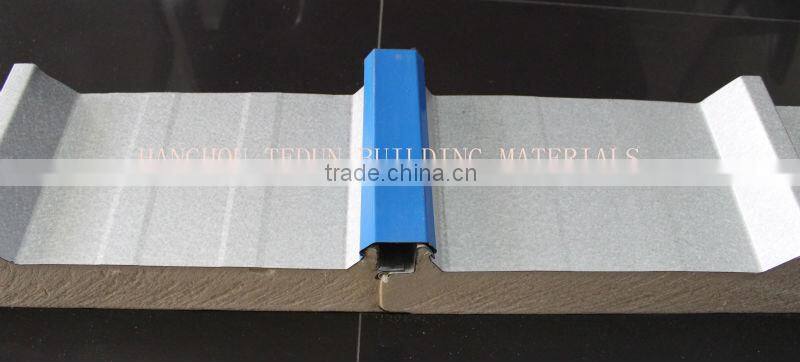

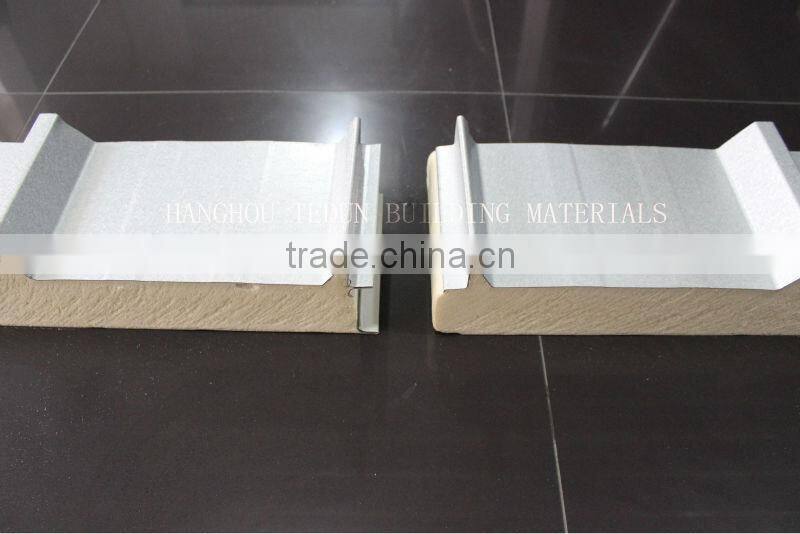

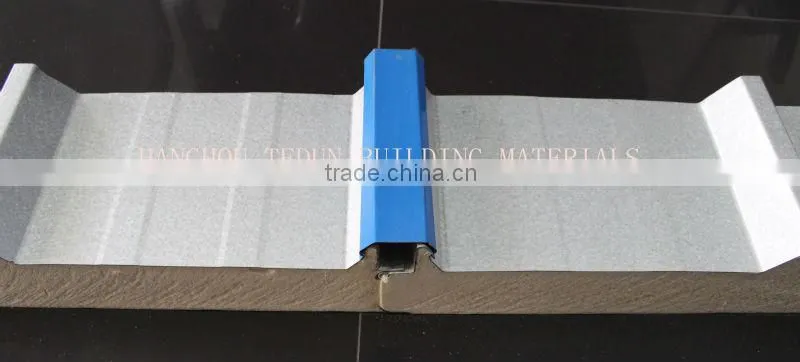

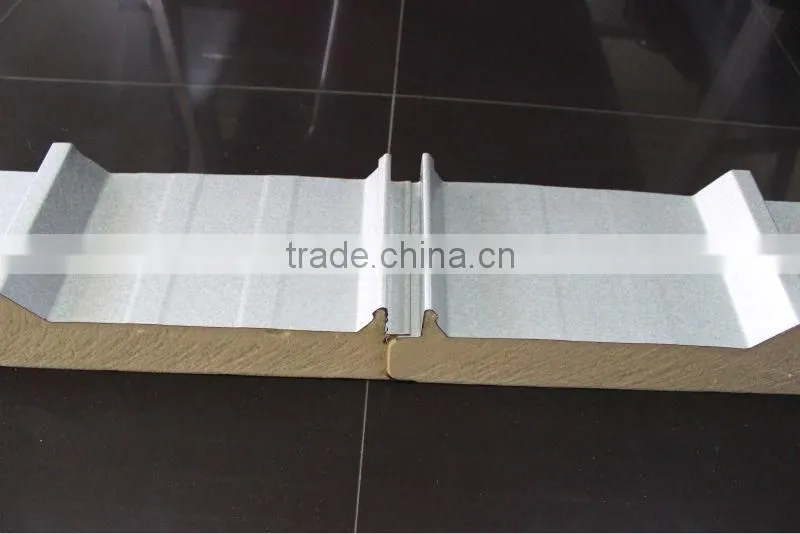

Help CenterGalvalume PU Sandwich Panel
Related Products
Specifications | |
Item |
PU965 |
Materials |
Polyurethane foam and galvalume steel sheet |
Structure |
Upper layer: galvalume steel sheet |
Core: polyurethane foam | |
Bottom layer: galvalume steel sheet | |
Thickness |
Upper layer: 0.3~0.6mm |
Core: 30-100mm | |
Bottom layer: 0.3~0.6mm | |

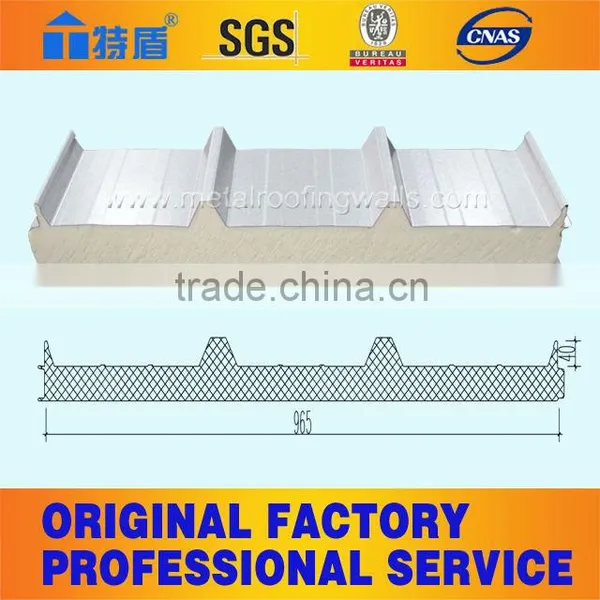

Effective width |
965(mm) |
Length |
11.8m(40GP), 5.8m(20GP) |
Polyurethane foam density |
35-42kg/m³ |
Service time |
10~20 years |
Characteristics |
Light in weight, heat insulation, water resistant, green and environmental |
Application |
Roofs for factory buildings, storages, exhibition halls, gymnasiums etc |
Characteristics |
|
PU sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, and weather fastness, etc. |
|
The sandwich panel has excellent insulating performance: heat insulation, sound insulation, waterproof performance, etc. |
It is easy to install and can be used times over. |
Applications |
|
The sandwich panels can be used in large industrial plants,warehouses supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place. |
The temporary facilities in the construction site, such as office, warehouse. |
|
It is also widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings, etc. |
SKYPE:july_1616
TEL:0086 13588177994
Send Inquiry to This Supplier
