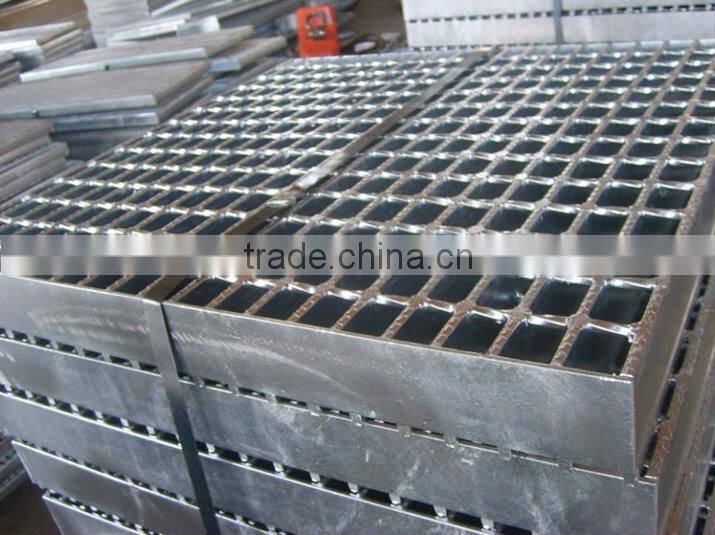

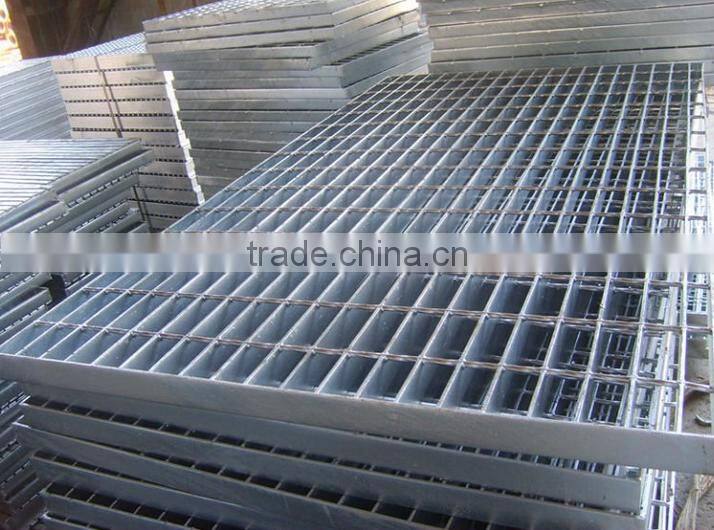

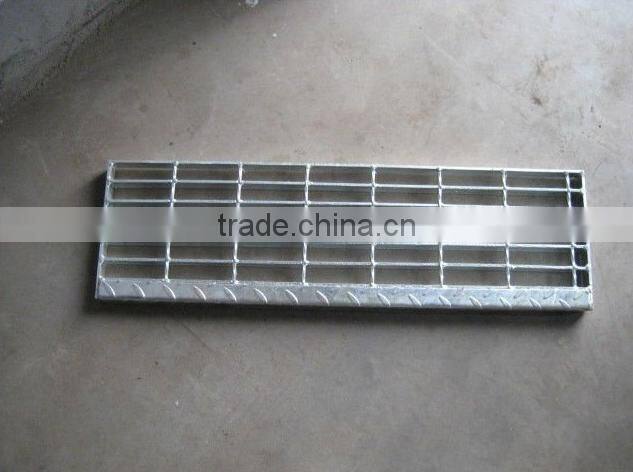

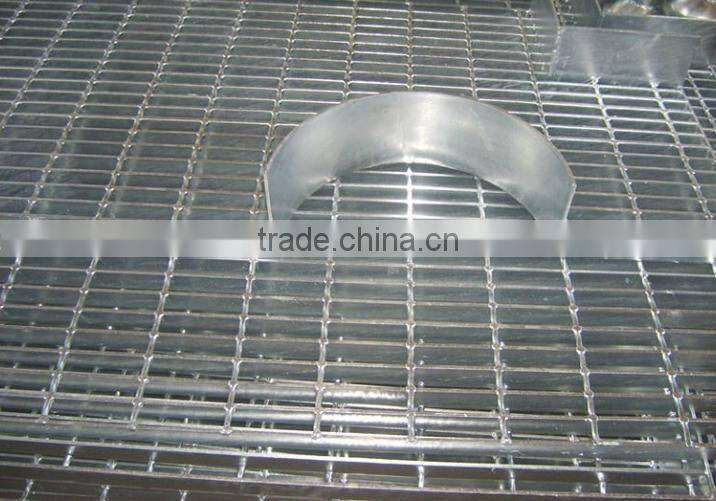

Widely used Anping Sanqiang Steel grating
HOPE THIS GREEN COLOR CAN MAKE YOUR EYES COMFORTABLE
Characteristics:1easy to operate2.can form an overall construction with great ensile tensile strength,3.the pressure resistance4.vibration-proof,5.bearing the temperature change.
Steel grating is made by welding with flat steel and bars with certain distance,It goes through cutting,opening ,edging and other processes,The products enjoy the features of high strenth,light structure,high bearing ,convenience for loading and other properties,The hot sipped zinc coating makes the product excellent anti-corrosion resistance.
Steel grating is widely used in the platform,corridor,bridge,manhole cove,stairs,fencing for petroleum ,chemical,power plant,waste treatment plant,civil engineering projects and environmental projects.
Series | Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification ( Width * Thickness) | |||||
( mm ) | ( mm ) | 20*3 ( mm ) | 25*3( mm ) | 32*3( mm) | 40*3( mm ) | 20*5( mm ) | 25*5( mm ) | |
1 | 30 | 100
| G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
|
| 50
| G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
2 | 40 | 100
| G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
|
| 50
| G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
3 | 60 | 50
| G203/60/50 | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Series | Bearing Bar Spacing | Cross Bar Spacing |
Bearing Bar Specification ( Width * Thickness) | ||||||
| ( mm ) | ( mm )
| 32*5 ( mm ) | 40*5 ( mm ) | 45*5 ( mm ) | 50*5 ( mm ) | 55*5 ( mm ) | 60*5 ( mm ) | |
1 | 30 | 100
| G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 | |
|
|
| 50
| G325/30/50 | G405/30/50 | G4555/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
2 | 40 | 100
| G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 | |
|
|
| 50
| G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
3 | 60 | 50
| G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 | |
