Specifications
a.full range in type & dimensionb.largest production capability
c.reliable manufacturer (a state-owned company)
anti skid steel grid

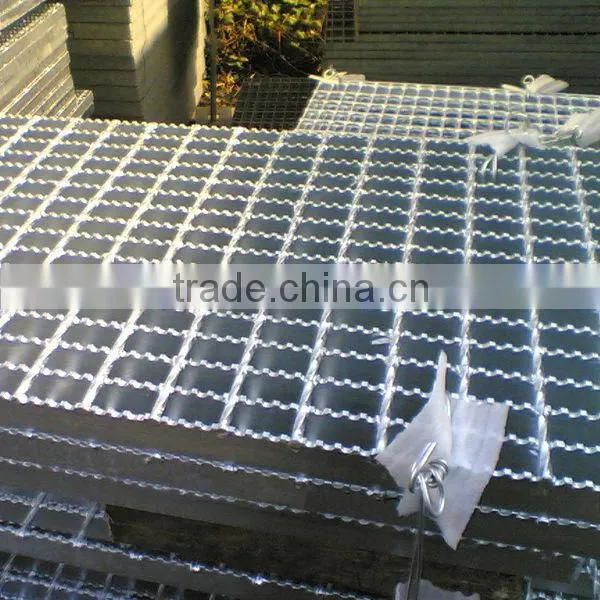

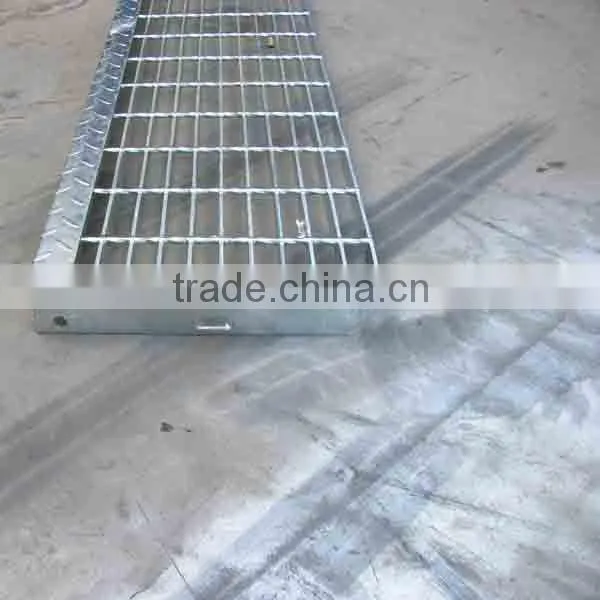

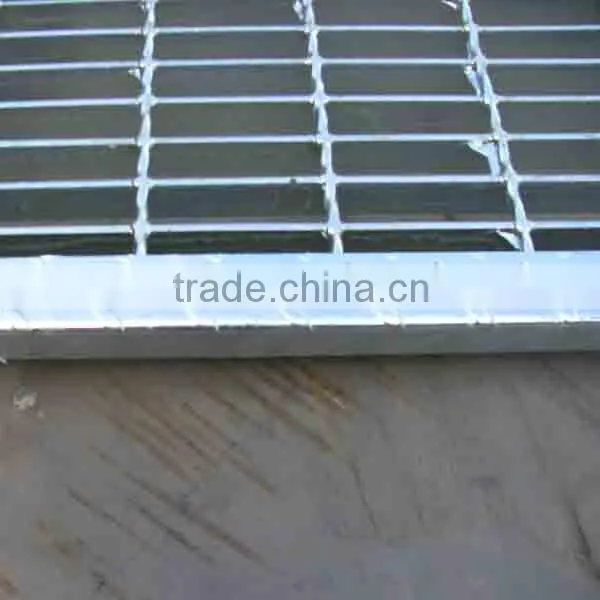

Anti skid grid
Anti skid bar grid
1.Comprehensive type and broadest range in dimension.
1.1 Material Q235 , or other equivalent material
1.2 Grating Conformity Standard: YB/T4001, ANSI/NAAMM-MBG531, BS4592, AS1657, JS3101
1.3 Grating Dimension
Load Bearing Flat Bar size |
Thickness≥3mm, depth ≥19mm |
19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5…..40X6, 40X8, 40X10,….90X6…. | |
Pitch of Load bearding flat bars(mm) |
12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80…… |
Pitch of cross bars(mm) |
38.1, 50, 50.8, 70, 75, 80, 100, 101.6, 102…… |
The sizes and dimension is not limited to above.

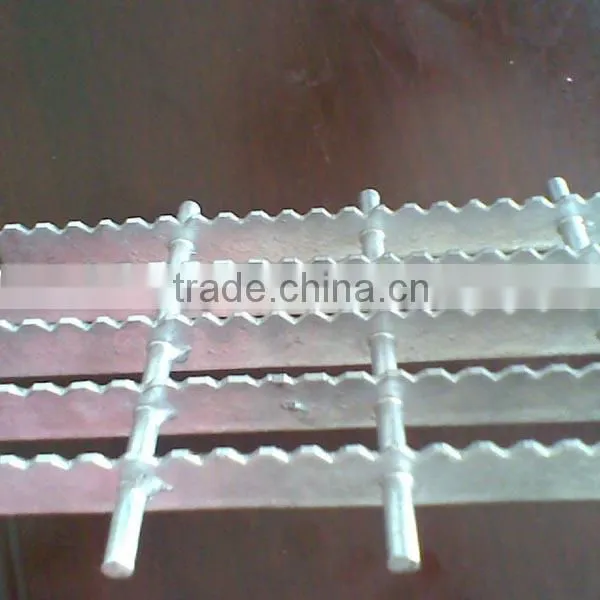

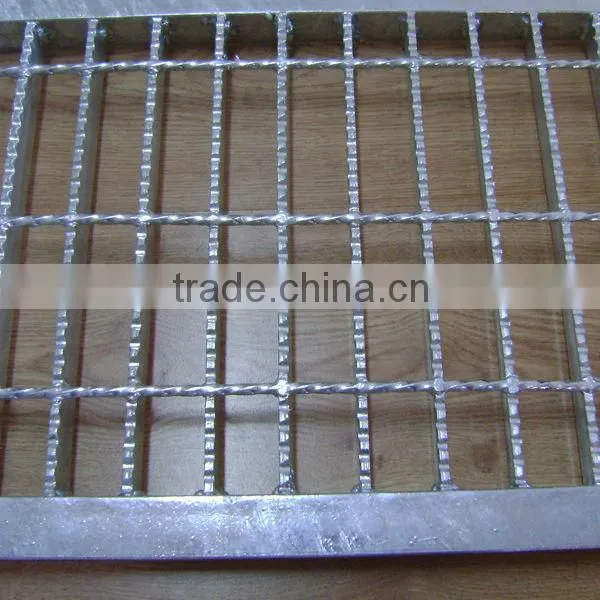

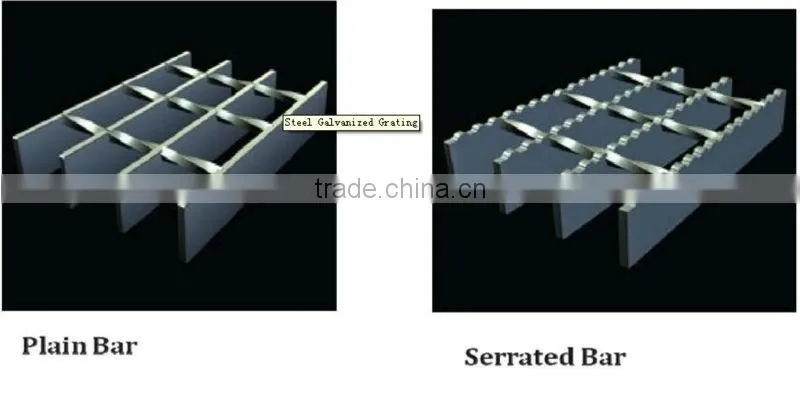

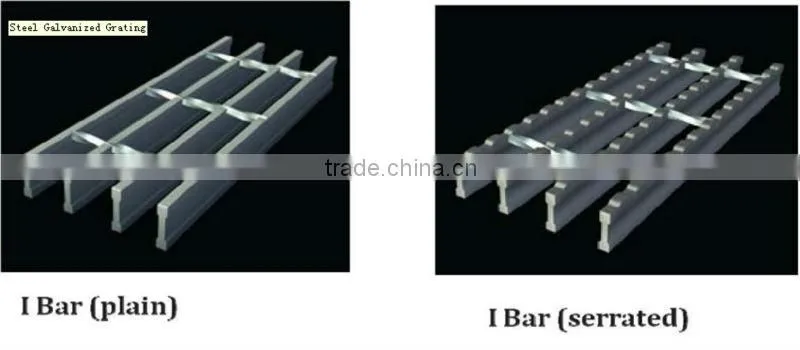

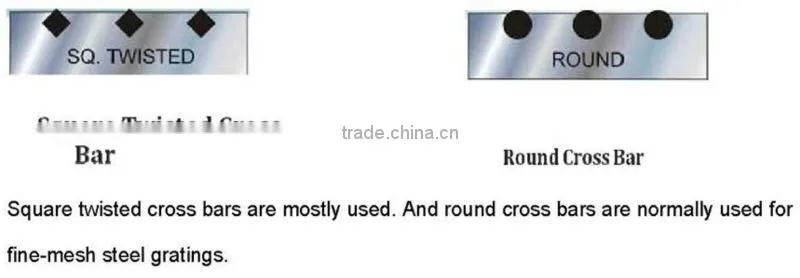

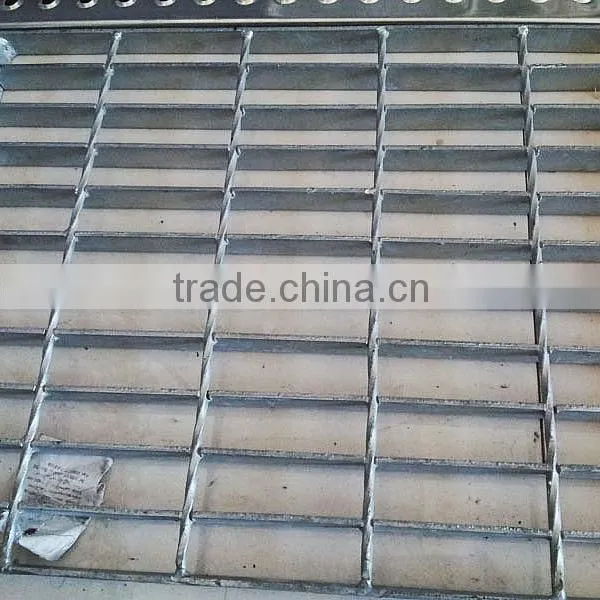

1.4 Grating type: flat bar: plain type, plain I type, serrated type, serrated I type; cross bar: round type and square twisted type.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
Type |
Welded steel grating, anti skid steel grid |
Steel flat size |
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm |
Beraing bar pitch |
12.5,15,20,25,30,35,40,50mm |
Cross bar pitch |
38,50,80,100mm |
material |
Low carbon steel, stainless steel, aluminium |
Surface treatment |
Untreated, hot galvanized, painted |
Standards |
China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS 1657-1985 |
If any products can meet your require, please contact me without hesitate, best price will be offered!
