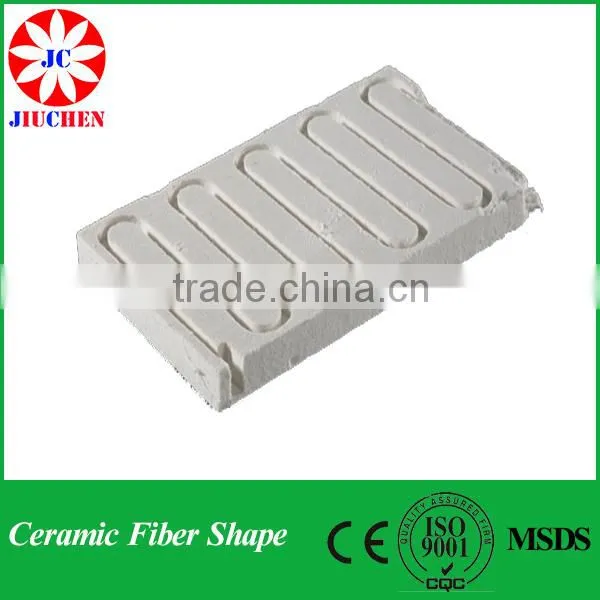

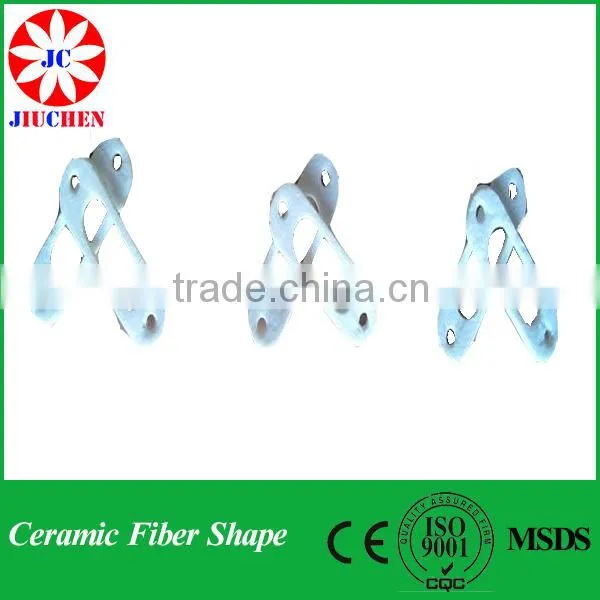

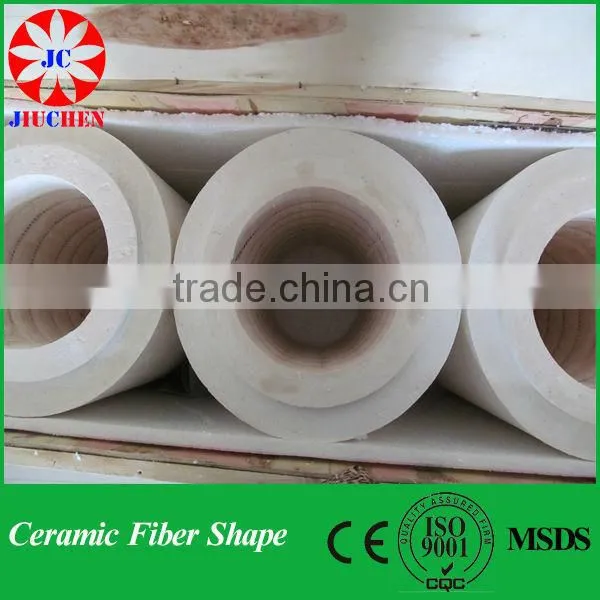

Special Shaped Ceramic Fiber Insulating shapes Description
Jiuchen Vacuum FormedSpecial-shaped Ceramic Fiber,taking corresponding common ,standard ,high pure,high alumina and ziroconium-contained type aluminum silicate fiber as raw material, are manufactured by means of vacuum suction-straining technology or dry process.
The products are non-brittle materials and and have high intensity, accurate dimension and can be made according to requirement of clients. Moreover they can directly contact with their good fire-resistance and heat insulation.
Characteristics:
- Low heat storage
- Low heat loss
- Excellent wind corrosion resistance
- Excellent thermal shock resistance
- Excellent compressive strength
- Excellent sound absorption capability
- Excellent performance of contraction and installation
Special Shaped Ceramic Fiber Insulating shapes Application
Survey hole of industry furnace, insert hole of thermometer
Burner brick of industry furnace and furnace door
Thermal insulating material of heat and electrical equipment
Technical data
Item |
product |
common |
standard |
High pure |
High Aluminum |
Aluminum Zirconium |
High Zirconium |
|
Classification T(°C) |
1260 |
1260 |
1260 |
1400 |
1400 |
1400 |
||
Working T(°C) |
≤1000 |
1000 |
1100 |
1200 |
1300 |
1400 |
||
Density(kg/m3) |
320±15 |
320±15 |
320±15 |
380±15 |
320±15 |
320±15 |
||
|
Liner Shrinkage(%)at 1000°C×24h (Density 128kg/m3) |
≤-4 |
≤-3 |
≤-3 |
≤-3 |
≤-3 |
≤-3 |
||
Tensile strength(MPa) |
≥0.5(110C dry) |
|||||||
ChemicalComposition(%) |
AL2O3 |
44--45 |
45--46 |
47--49 |
52--55 |
47--51 |
39--40 |
|
AL2O3+SiO2 |
96 |
97 |
99 |
99 |
---- |
----- |
||
AL2O3+SiO2+ZrO2 |
---- |
----- |
---- |
---- |
99 |
99 |
||
ZrO2 |
---- |
---- |
---- |
---- |
8--9 |
15--17 |
||
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
0.2 |
||
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
0.2 |
||
Specification(mm) |
According to customers’supplied drawings |
|||||||
