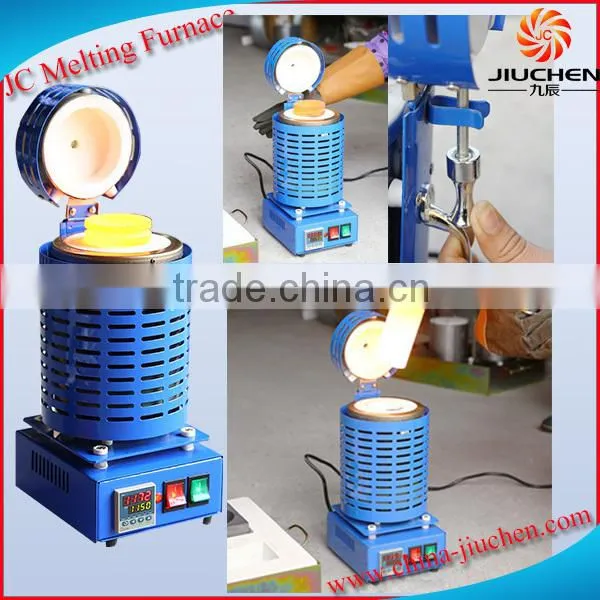

220V Single Phase 1kg Electric Aluminium Melting Furnace
- 500 Unit / Units per Month
- Qingdao Port
- T/T Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Shandong, China | Brand Name: | JIUCHEN | Model Number: | JC-K-220-2 |
After-sales Service Provided: | Overseas service center available |
Product Description

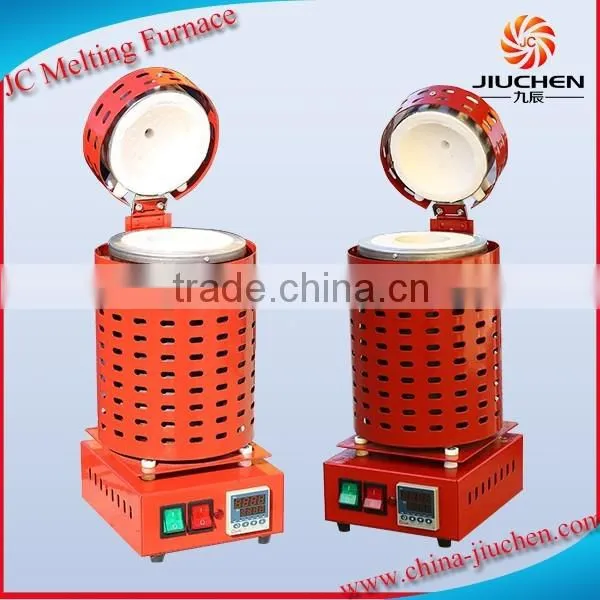

220V Single Phase 1kg Electric Aluminium Melting Furnace
JIUCHEN Furnace features a controller that is operational whether the furnace is on or off. Once you've reached your casting temperature, you can turn the machine off and still actively monitor the metal temperature--ideal for casting multiple alloys. You can remove one crucible and pour the metal, then insert the next crucible and adjust the temperature for your next melt.
Use this furnace to efficiently melt non-ferrous alloys for casting and making ingots. To pour molten metal, use the included tongs to lift out the crucible or use the built-in handle to simply pick up and pour directly from the furnace.
Some of the Metals that can be melted with this Furnace;Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc.Melts Pure Jewelry grade Metals such as: Gold 8k-24k, Silver (coin,sterling,fine), Copper, and more.

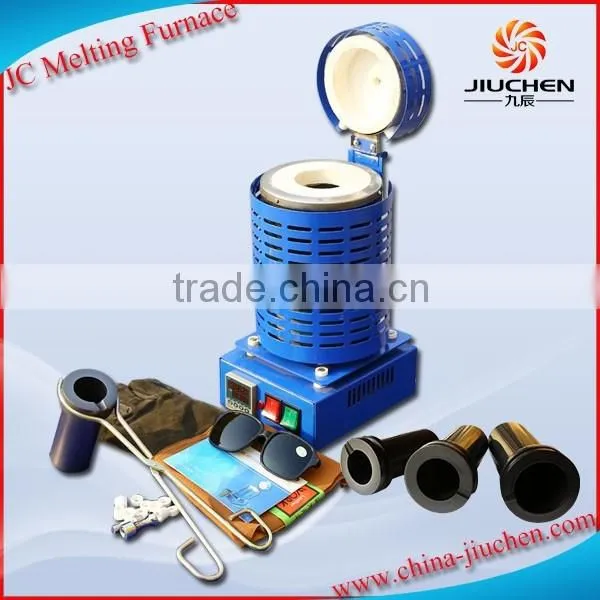

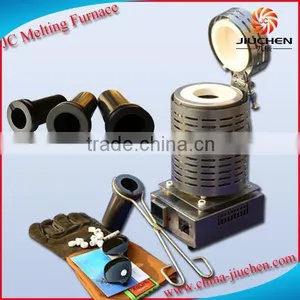

One Furnaces Unit delivery with:

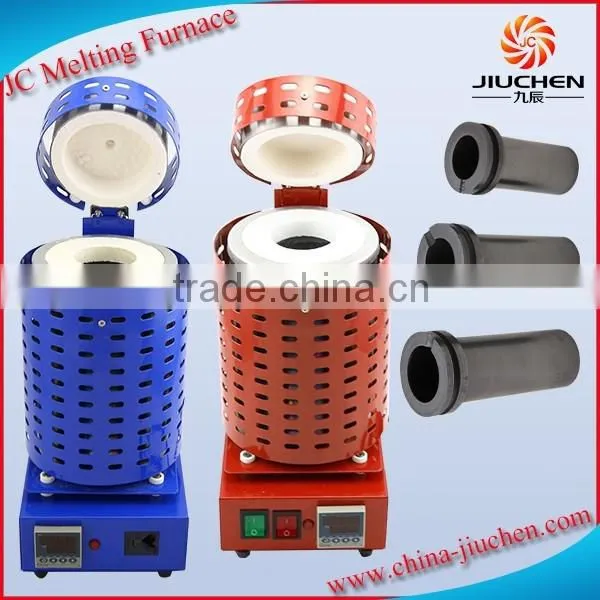

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional

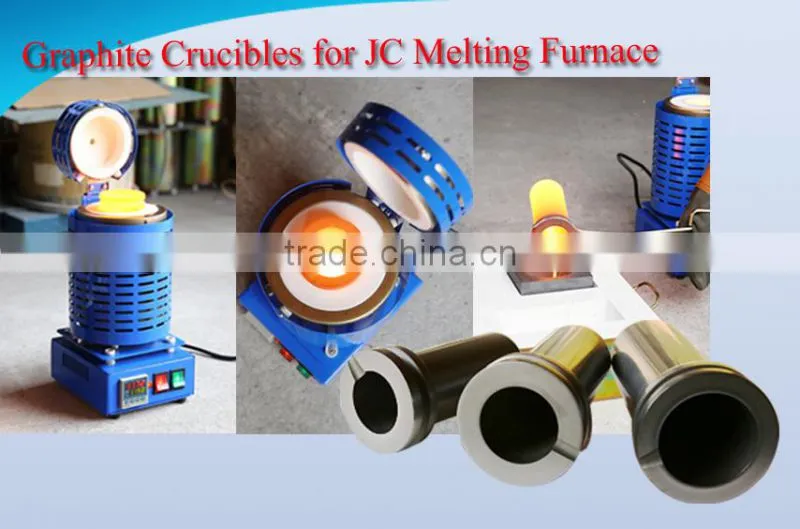

1-1kg graphite crucible
1-crucible tongs.
1-replacement fuse.
1-insulating heat glasses.
1- gloves.
Aluminium Melting Furnace Breif Instruction
Use | Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs. |
Construction | Access to crucible from top,manual cover closing |
Insulation | Multilayer insulation with double thickness of ceramic fiber |
Electricity | Single-phase 220VAC1500W,50Hz,220V standard plug |
Heating | Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber |
Working temp | 2192F (1200C) Temperature controlled with an accurate digital thermostat |
Melting Speed | (Model JC-K-220-2) 15-20mins heat up to 1200 Degrees Celsius 25-30Mins(JC-K-220-1) heat up to 1200 Degrees Celsius |
Standard Delivered with | 1x1kg crucible,1xcrucible tongs,1xinsluation glasses,1xgloves |
Advantages of Aluminium Melting Furnace
1. Light weight and small volume;
2. High efficiency of refining;
3. Easy installation and operation;
4. Fast speed of raising temperature, the temperature is constant;
5.Safe and environment-friendly operation;
6.Complete Protection:Equipped with over-voltage,over-current,over-heat,water shortage device which control and protect automatically;
7.Insulated lid holds heat in and keeps oxygen out for a cleaner melt.
8. You can melt pure silver & gold or alloys such as sterling silver, 14k gold 18k gold up to pure.
9. It takes 4-5 Minutes to first warm up depending on the metal your melting and 11-15 minutes to fully melt your metal depending on the form of material. Shot or small parts melt faster than large bars or blocks.
10. Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

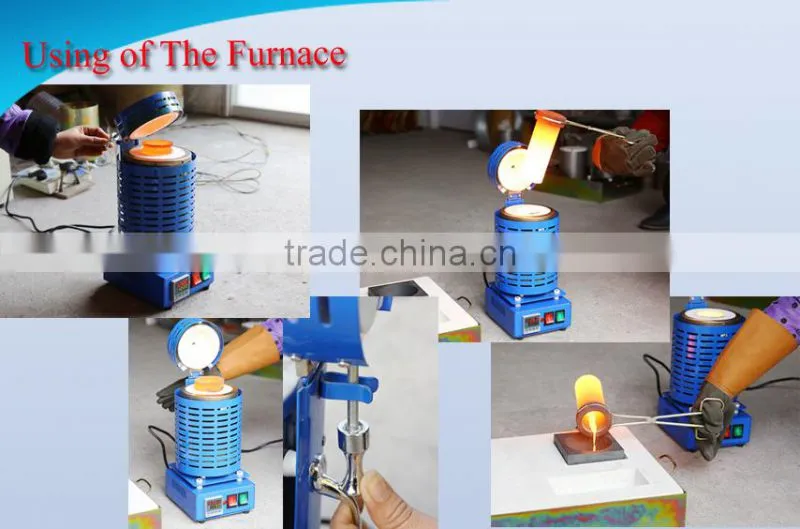

Aluminium Melting Furnace Instruction
The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat allowing you to set the desired melting temperature.
The RED switch turns on the heating element to start the melting process.
The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.
To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.
To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.
When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.
Press the red button to start the melting process.
When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal into your prepared flask.

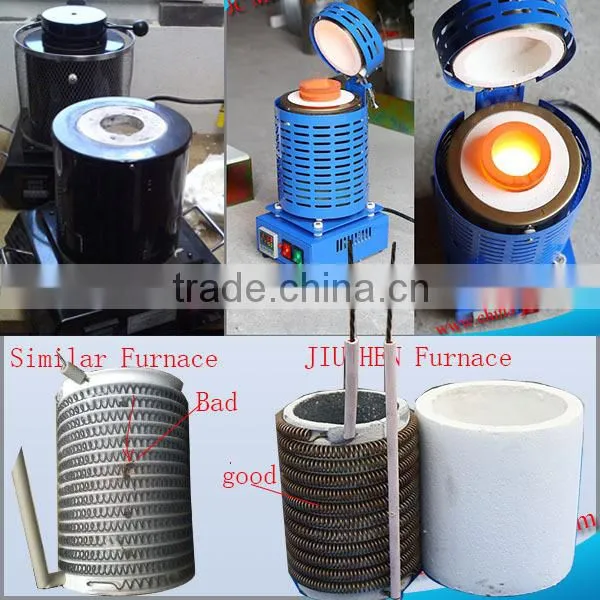

Difference Feature JIUCHEN with Other Similar Furnace
Items | JC Electric Furnace | Other Similar Furnace |
Furnace chamber | Adopts new advanced SIC material with no crack no distortion under normal temp 1-1200 Degrees Celsius,which prevents disadvantage of short work life with tranditional ceramic fiber, quartz chambers. | Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life. |
Heating Coil | Material: Fe-Cr-Ni alloys Limited test temp up to 1600°C,make sure long continues continuous work time under normal 1200°C,which effectly extend furnace work life | Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves. |
Heating Speed | JC-K-220-1(220V1Kw) 25-30Mins JC-K-220-1(220V 2Kw) 15-20Mins | 25-45mins: Reheat:15-30mins Then need 10-15mins to complete finish the melting. |
Working temp | 1-1200 Degrees Celsius | 1-1150 Degrees Celsius |
Aluminium Melting Furnace Package Aluminium Melting Furnac Shipping We can accept T/T,Paypal,Western Union,Escrow,the best and fast way is Paypal.
We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination,
We will send the goods within 3 working days after the full payment has been confirmed.
Warranty and Return:
All the products have been tested before ship out.
All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.
If there is no man-made problems,we will replace or repair for you freely.
