Home > Products > Metal Wire > Electro and Hot Dipped Galvanized Iron Wire All Gauge Verified by TUV Rheinland

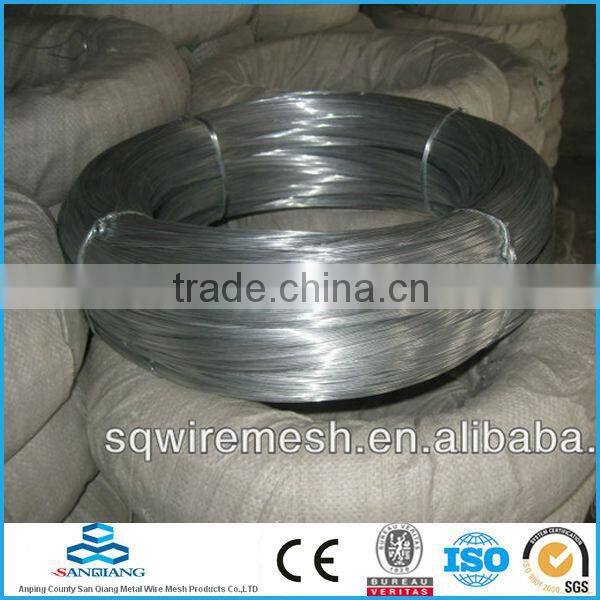

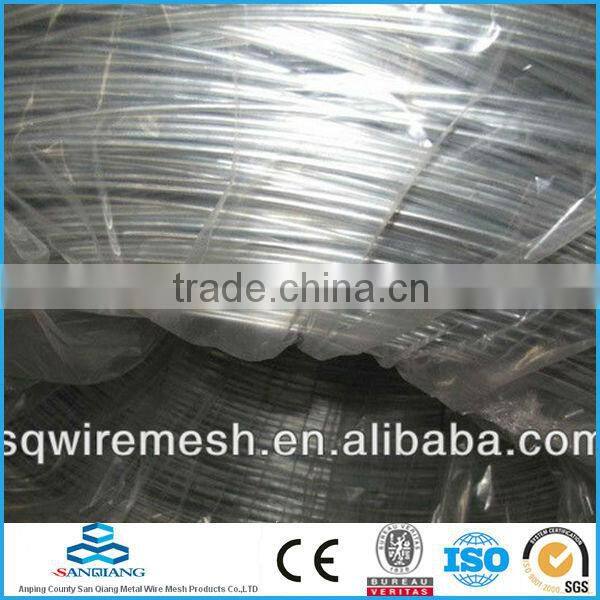

Electro and Hot Dipped Galvanized Iron Wire All Gauge Verified by TUV Rheinland
- Xingang China
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | SANQIANG | |
| Model Number | SQ-20-1 | Surface Treatment | Galvanized | |
| Galvanized Technique | Electro Galvanized | Type | Flat Wire | |
| Function | Baling Wire | Wire Gauge | 0.1MM-6.5MM |
Product Description
Specifications
Electro and Hot dip Galvanizedwire diameter:0.20-5.2mm
zinc coating:12-300g/m2
tensile strength:350-550MPa
fast deliver
Galvanized Iron Wire Processing & Features:
This kind of galvanized wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes.
Use for weaving mesh ,construction binding ,etc.
Electro/Hot Dipped Galvanized Wire Technical/Mechanical Characters:
ASTM Standard: A641/A641M-98
Material: SAE1006/1008,Q195/235 SAE1050/1065
Standard wire gauge BWG6 to BWG25.
Zinc coating: 8-25g/sqm for Electro Galvanized Wire; 60g - 220g/sqm for Hot Dipped Galvanized Wire
Heavy coating: >200grams/sq.m or according to our customers' requirement >250grams/sq.m
T.S.: 300/550Mpa, 350/450Mpa, 450-550Mpa, 600-800Mpa, 700-900Mpa 1100-1300Mpa, 1300-1700Mpa etc.

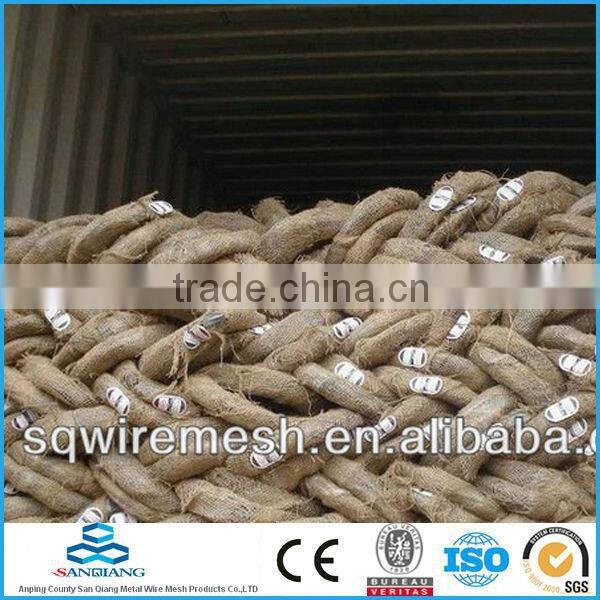

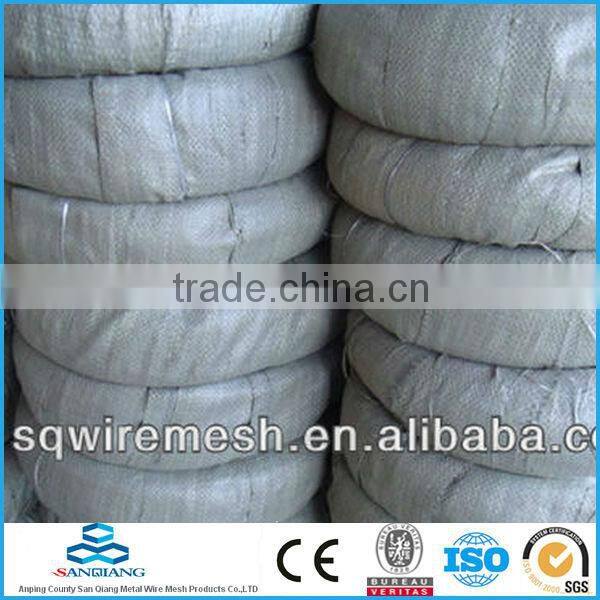

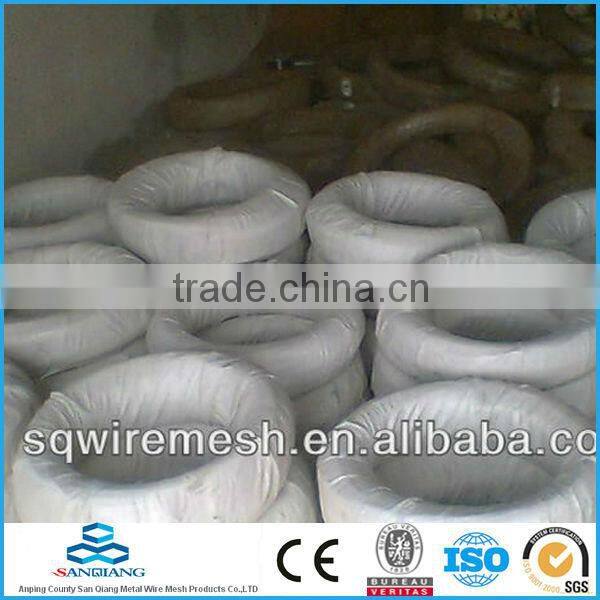

Packing: 1kg-1000kgs/coil
Application: This kind of wire is extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packagin
Wire Gauge
Wire Gauge | SWG in mm | BWG in mm | Wire Gauge | SWG in mm | BWG in mm | |
4 | 5.89 | 6.04 | 21 | 0.81 | 0.81 | |
5 | 5.38 | 5.58 | 22 | 0.71 | 0.71 | |
6 | 4.87 | 5.15 | 23 | 0.61 | 0.63 | |
7 | 4.47 | 4.57 | 24 | 0.55 | 0.55 | |
8 | 4.06 | 4.19 | 25 | 0.50 | 0.50 | |
9 | 3.66 | 3.76 | 26 | 0.45 | 0.45 | |
10 | 3.25 | 3.40 | 27 | 0.41 | 0.40 | |
11 | 2.95 | 3.05 | 28 | 0.37 | 0.35 | |
12 | 2.64 | 2.77 | 29 | 0.34 | 0.33 | |
13 | 2.34 | 2.41 | 30 | 0.31 | 0.30 | |
14 | 2.03 | 2.11 | 31 | 0.29 | 0.25 | |
15 | 1.83 | 1.83 | 32 | 0.27 | 0.22 | |
16 | 1.63 | 1.65 | 33 | 0.25 | 0.20 | |
17 | 1.42 | 1.47 | 34 | 0.23 | 0.17 | |
18 | 1.22 | 1.25 | 35 | 0.21 | 0.12 | |
19 | 1.02 | 1.07 | 36 | 0.19 | 0.10 | |
20 | 0.91 | 0.89 | ||||
Also make according to requirement | ||||||
Raw Materials : SAE1006 Low carbon Steel Wire Rod 6.5mm
Sanqiang Factory
If you have any demand, pls feel free to contact me!
