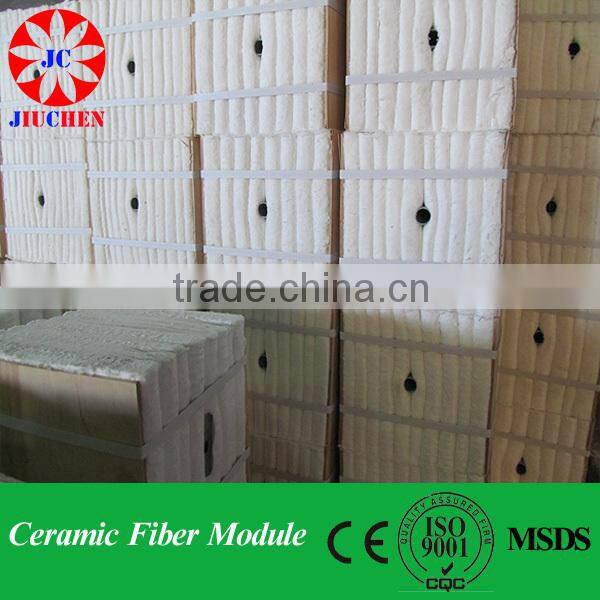

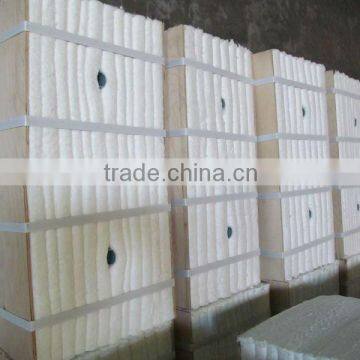

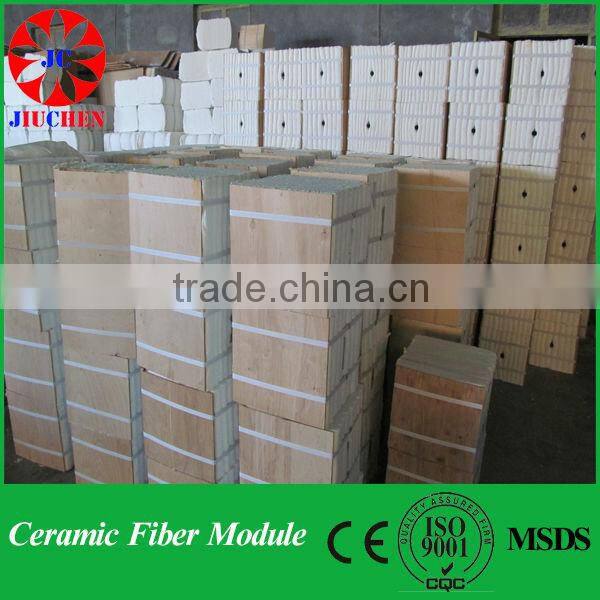

Heat Insulation Thermal ceramic block

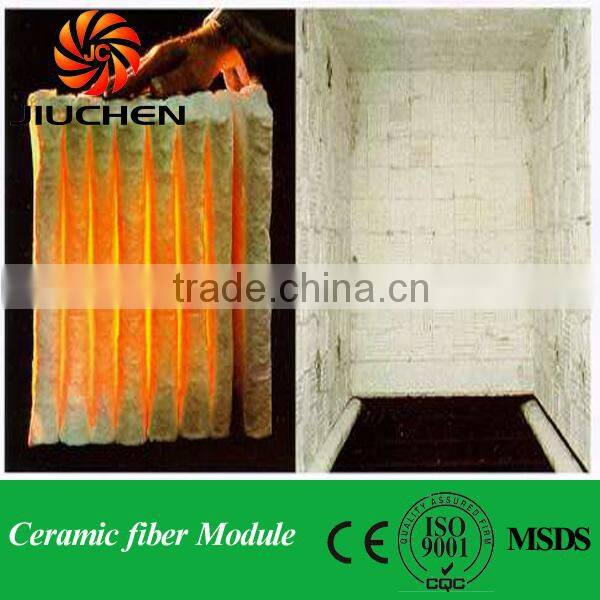

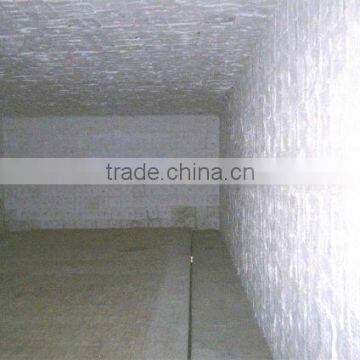

is made from continuous fold ceramic fiber blankets under pression .These Modules are specially design to meet or improve the thermal insulation requirements of industry furnace. There are various anchor systems. The ceramic fiber module is a new type of refractory furnace lining products aiming at simplifying and speeding up furnace construction and improving the integrity of furnace lining. This product has clean and white color as well as formal dimension, which can be directly fixed on the anchor nailon steel plate for shell of industrial furnace with excellent refractory and insulating effect. Thus, it has improved the refractory andInsulating integrity of furnace and pushed forward the progress of furnace construction technology.
Features:
1. Easy and fast installation
2.Low heat storage fuel costs
3.This design creates a very light lining,less steel required
4.Several anchor systems
Product Application:
1.Steel industry:types of furnaces including heating furnaces, heat treatment furnaces ladle cover,annealing furnaces,bell-type furnaces
2.Ceramic industry: shuttle-type kilns, end-fired furnaces,tunnel kilns and other types of ceramic furnaces,kiln cars,kiln doors.
3.Petrochemical industry:cracking furnaces,converting furnaces,constant/reduction press furnaces,flue pipes.
4.Heat-treatment industry: annealing furnaces, normalizing furnaces, drawing furnaces,pit furnaces, kiln cars.High- temperature equipment, for example, pot furnaces, electricity resistance furnaces and other kinds of industrial furnaces.
Technical Data:
ITEM |
PRODUCT |
COM |
STD |
HP |
HA |
HZ |
Classification Temperature(℃) |
1100 (2012℉) |
1260 (2300℉) |
1260 (2300℉) |
1360 (2480℉) |
1430 (2606℉) |
|
Working Temperature (℃) |
<1000 (1832℉) |
1050 (1922℉) |
1100 (2012℉) |
1200 (2192℉) |
1350 (2462℉) |
|
Density(kg/m3 ) |
220+/-15 |
220+/-15 |
220+/-15 |
220+/-15 |
220+/-15 |
|
Chemical Composition % |
AL2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
AL2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
AL2O3 + SiO2 +ZrO2 |
- |
- |
- |
- |
99 |
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
Fe2O3 |
<1.2 |
<1.20 |
0.2 |
0.2 |
0.2 |
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
Dimension (mm) |
600x240-300x100-200, 300x300x150-300 |
|||||

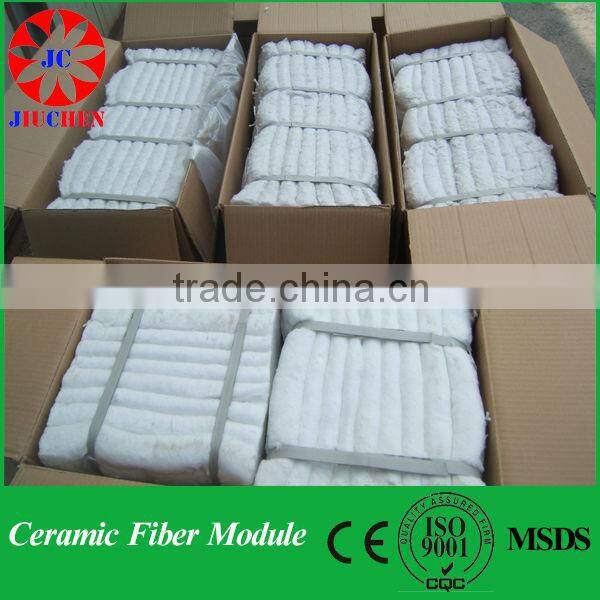

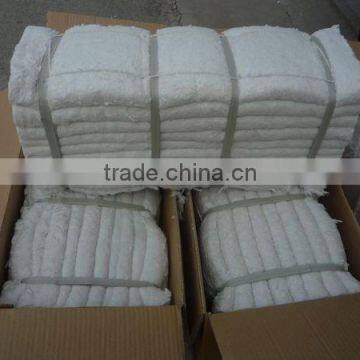

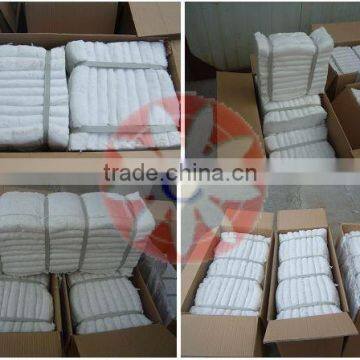

plastic bag inside,carton or woven bag outside
1.quickly delivery
2. good quality
3. good after-sale services.
ISO Quality management System
Production control:
Inspection report
If you have any questions about our products,pls feel free to contact us!
