Steel Grating
Description

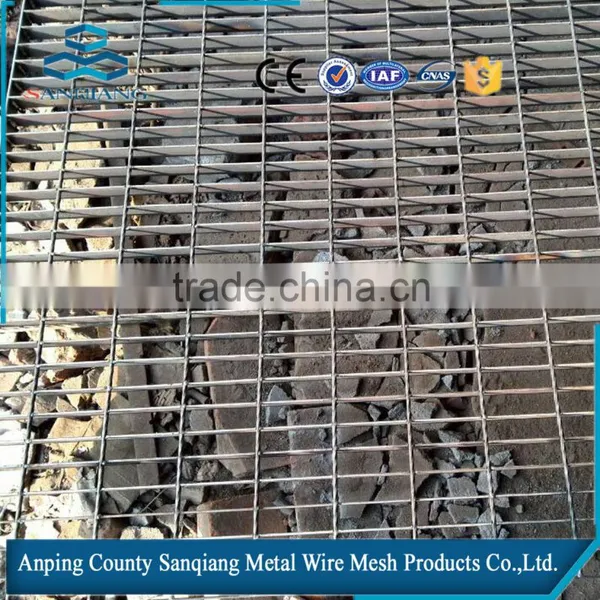

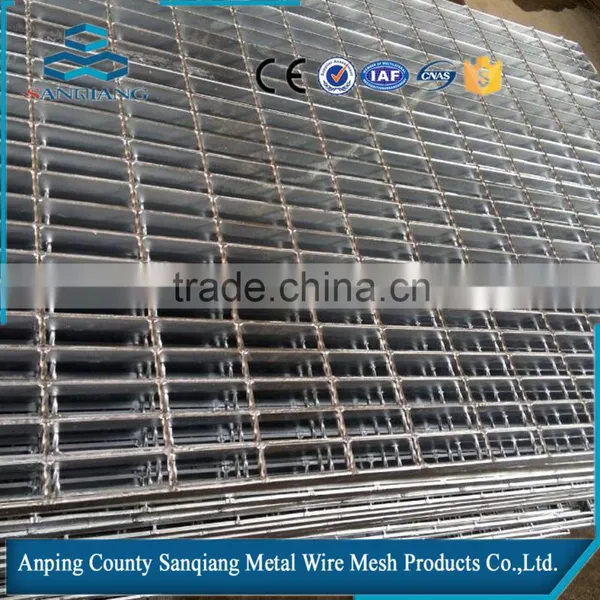

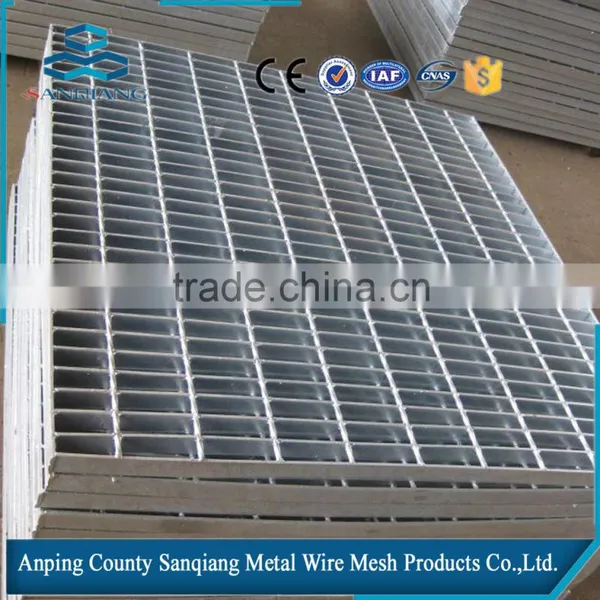

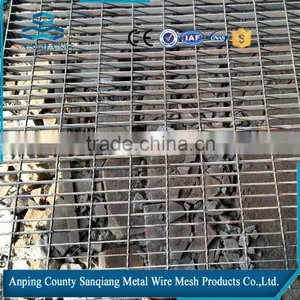

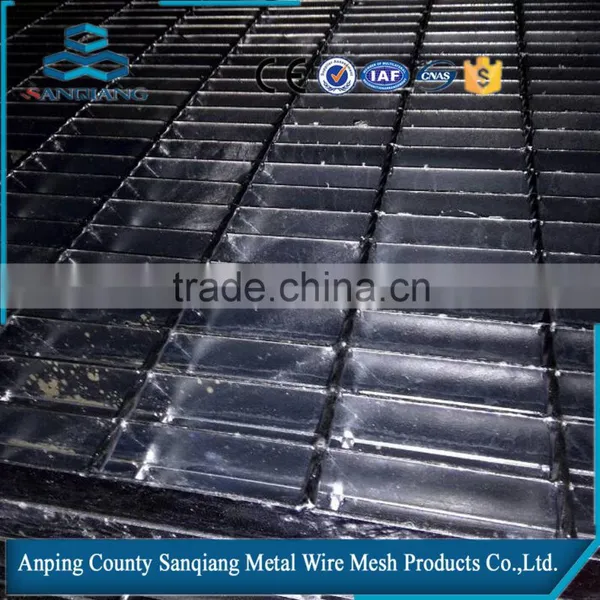

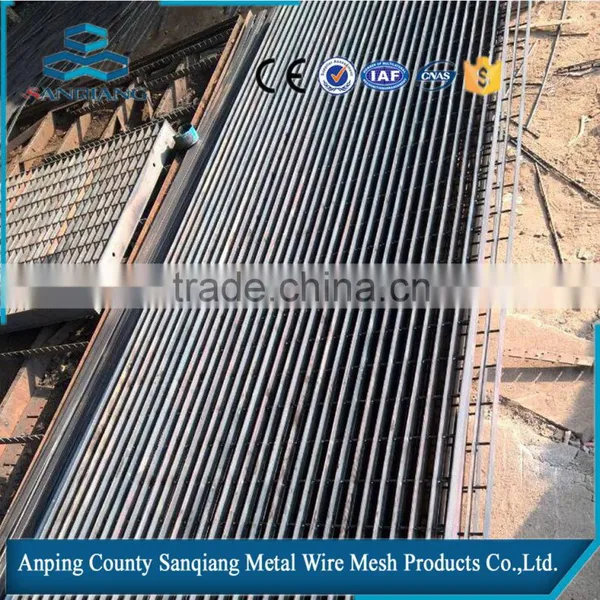

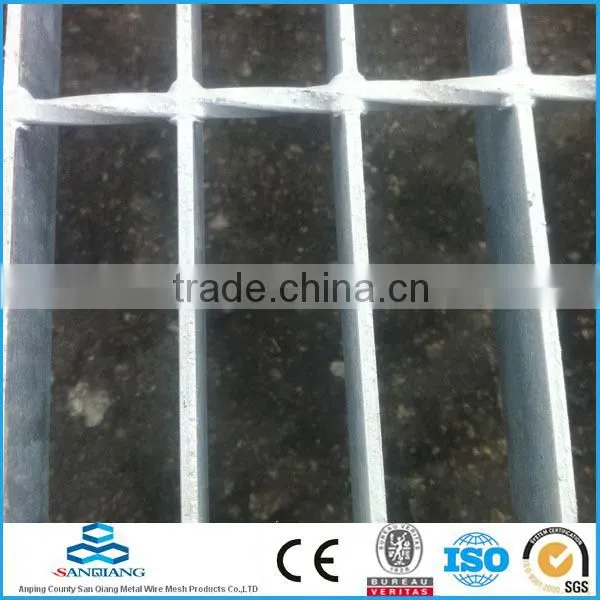

Steel Grating are manufactured with the pressure resistance welding machine by electro-forging the twisted square-steel into flat steel. The bearing bars running in one direction signifying the length of the gratings, are spaced by rigid attachment to cross rods running prependicular to the bearing bars representing the width. Strong welding points are thus secured.
Steel grating are classified into two styles namely plain style and serrated style as per the upper edges of bearing bars. More than 200 varieties are avaliable based on specificatins and spacing of bearing bars, and that of cross rods.
Specification
| Specifications of steel gratings | ||
| No | Item | Description |
| 1 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 2 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| 5 | Surface treatment | Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| 6 | Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material standard | Low carbon steel (CN: Q235, US: A36, UK: 43A) |
| 8 | Galvanization standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
Features
(1)Attractive appearance:Simple outline.silver colour,and modern.
(2)Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.
(3)Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.
(4)Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety,and convenient opening.
(5)Saving investment:With large span,the cost is lower than that of cast iron when under heavy load.And the replacement expenses in case of theft and crushing will be saved.
(6)High strength:With strength:With strength and toughness far higher than those of cast iron,it can be used in the environment with large span and heavy load,such as the wharf and the airport.
(7)Many specifications available: The requirement of different environments,loads,spans,sizes and shapes can be satisfied.
Application
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc
Tolerance
The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.
Packing

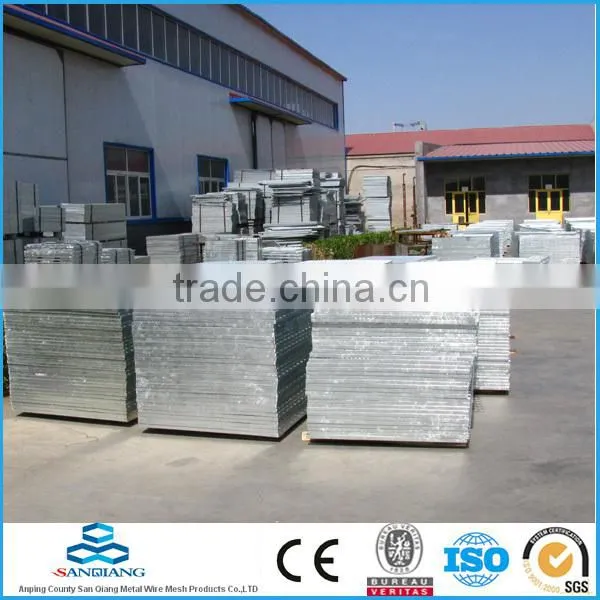

normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.
