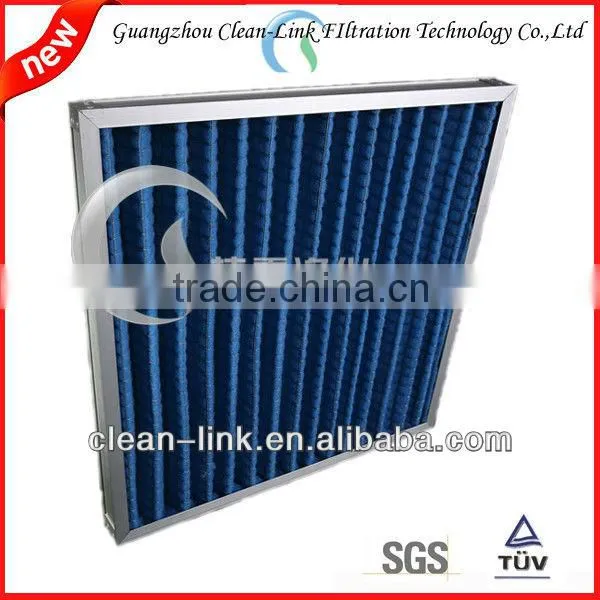

Help CenterHigh Quality Aluminum Frame Synthetic Fiber Panel Air Filters
Related Products
-
Pre Filter Non Woven Fabric Pleated Panel Ventilation FiltersUS$ 8 - 30MOQ: 10 Pieces -
G4 Pleated Paper Filter MeshUS$ 2.5 - 3.8MOQ: 1 Piece
-
Supplier Aluminum Frame Synthetic Fibre Pleated Panel Air FiltersNegotiableMOQ: 10 Pieces
-
Guangzhou Supplier Stainless Steel Frame Blue Synthetic Fibre Foldaway Plank FilterNegotiableMOQ: 10 Pieces
-
Clean Room G4-F8 Green Non-woven Fabrics and Synthetic Fibre Foldaway Panel FiltersNegotiableMOQ: 10 Pieces
Specifications
Washable plank filter mesh1.High quality polyester synthetic
2.fiber, metal frame
3.easy to replace
washable panel filter
Specification:
|
Class |
W*H * D Size W*H * D |
(m3/h) Rated air flow |
The ratio of the initial resistance and the rated air flow ( Pa ) |
|||
|
** ( mm ) W*H*D ( mm ) |
||||||
70% |
100% |
120% |
||||
G3 |
595*595*46mm |
3400 |
35 |
65 |
90 |
|
G3 |
290*595*46mm |
1700 |
35 |
65 |
90 |
|
G3 |
595*595*96mm |
3400 |
30 |
55 |
75 |
|
G3 |
290*595*96mm |
1700 |
30 |
55 |
75 |
|
G4 |
595*595*46mm |
3400 |
50 |
85 |
110 |
|
G4 |
290*595*46mm |
1700 |
50 |
85 |
110 |
|
G4 |
595*595*96mm |
3400 |
45 |
80 |
105 |
|
G4 |
290*595*96mm |
1700 |
45 |
80 |
105 |
|
F5 |
595*595*46mm |
3400 |
85 |
130 |
190 |
|
F5 |
290*595*46mm |
1700 |
85 |
130 |
190 |
|
F5 |
595*595*96mm |
3400 |
75 |
105 |
145 |
|
F5 |
290*595*96mm |
1700 |
75 |
105 |
145 |
|
Using:
1 Pre-filtration and second filtration for the ventilation system of the air condition;
2 The filtration for entering or returning the air in the clean room.
Why us
1We have specialized in the export of air filters for over 6years.
3 We have our own factory and brand.
4We provide OEM and ODM service ,sample production and service according to your demand
5 The dimension can be customized.
6 The delivery date will be within 2 weeks
7 The products have passed ISO90012008 and SGS certification.
8With independent R&D and design capablities.
9Well equipped with complete faciliies and skilled empolyees.
