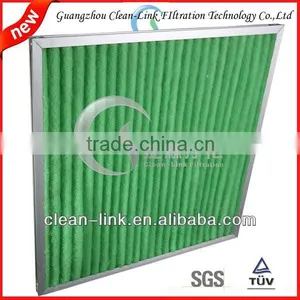

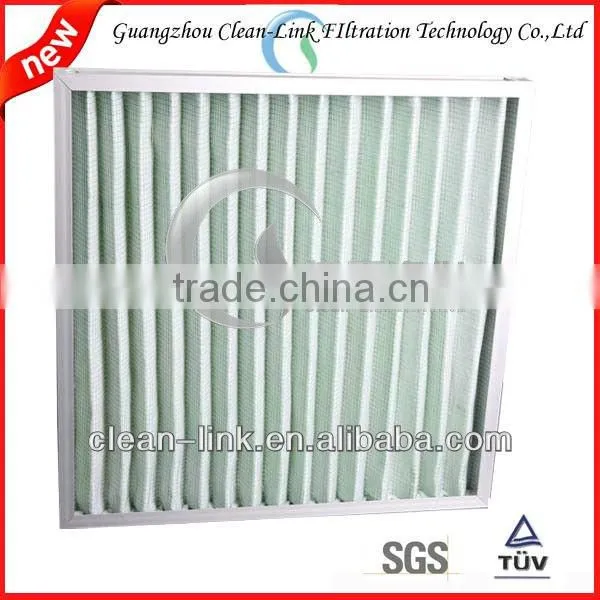

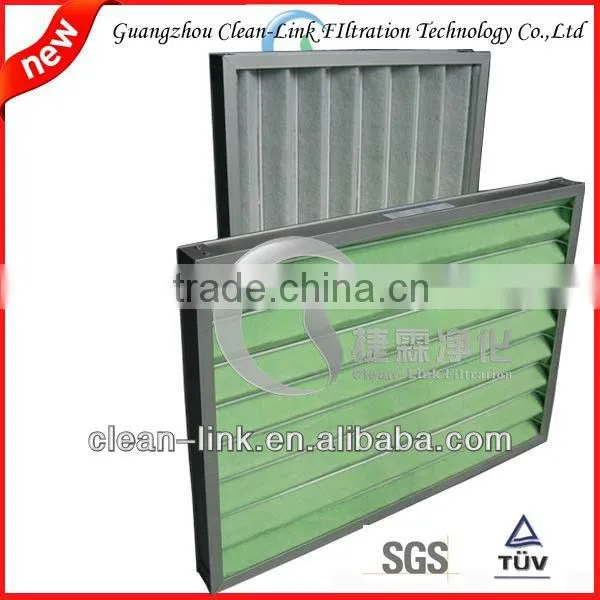

Help CenterPre Filter Non Woven Fabric Pleated Panel Ventilation Filters
Related Products
-
G4 Pleated Paper Filter MeshUS$ 2.5 - 3.8MOQ: 1 Piece -
Supplier Aluminum Frame Synthetic Fibre Pleated Panel Air FiltersNegotiableMOQ: 10 Pieces
-
Guangzhou Supplier Stainless Steel Frame Blue Synthetic Fibre Foldaway Plank FilterNegotiableMOQ: 10 Pieces
-
Clean Room G4-F8 Green Non-woven Fabrics and Synthetic Fibre Foldaway Panel FiltersNegotiableMOQ: 10 Pieces
-
Manufacturing G3/G4 Synthetic Fibre Foldaway Pleated Panel FiltersNegotiableMOQ: 10 Pieces
Plank filters
The filter material is the coarse feeiciency filter media;
Frame for the casing outside the metal is easy to replace;
Accord with Europe and the United States the classification criteria of fire prevention DIN53438 - F1, UL900 - class2;
Humidity resistance:100%;
Temp resistance:80°c
|
Class
|
W*H*D(mm) |
Initial resistance(pa) | Final resistance(pa) | Rated air flow(m3/h) |
|
G3
|
595*595*20 | 30 | 200 | 3900 |
| - | 595*595*96 | - | - | 4200 |
| - | 595*595*105 | - | - | 4200 |
| - | 595*595*120 | - | - | 4500 |
|
G4
|
595*595*20 | 38 | 260 | 3400 |
| - | 595*595*46 | - | - | 4200 |
| - | 595*595*105 | - | - | 4200 |
| - | 595*595*120 | - | - | 4500 |
Using:
1 Pre-filtration and second filtration for the ventilation system of the air condition;
2 The filtration for entering or returning the air in the clean room.
Why us
1We have specialized in the export of air filters for over 6years.
2 We have our own factory and brand.
3We provide OEM and ODM service ,sample production and service according to your demand
4The dimension can be customized.
5 The delivery date will be within 2 weeks
6 The products have passed ISO90012008 and SGS certification.
7With independent R&D and design capablities.
8Well equipped with complete faciliies and skilled empolyees.
