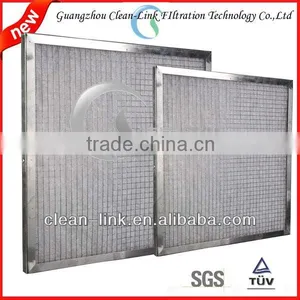

Help CenterG4 Pre High Temperature Pleated Panel Air Filter
Related Products
-
Hot-selling Fibreglass Plank Filter Mesh(manfacturer)US$ 3 - 20MOQ: 10 Pieces -
Synthetic Fiber Plank Pre Air Filter and Pannel Filter and Primary Filter ManufactureNegotiableMOQ: 1 Piece
-
Synthetic Fiber Plank Pre Air Filter,washable Panel Air Filter ,primary FilterNegotiableMOQ: 1 Piece
-
Plank Pre-filter MeshNegotiableMOQ: 1 Piece
-
High Quality Aluminum Frame Synthetic Fiber Panel Air FiltersUS$ 2 - 25MOQ: 10 Pieces
Specifications
large air flow,little resistance,anti-flaming,chemical/humidity resistant, stable property with ODM and OEM businesHigh temperature resistance panel air filter
1) Application: Avoid tar, soot and dust from high-temperature dryer
2) Type: Plank temperature resistance filter
3) Frame: Aluminum alloy, stainless steel or galvanized iron frame
4) Media: Special Synthetic fiber, fiberglass
5) Protect mesh: Aluminum mesh or spray iron mesh
6) En779 class: G3, G4, F5
7) Average arrestance: 85%,90%,93% , (ASHRAE52.1-1992)
8) EUROVENT4/5 classEU3, EU4, EU5,
9) Final resistance: (suggest) 250Pa-(max) 300Pa
10) Max. air flow: 125% of the rated air flow
11) Temp. Resistance : 300°C
12) Humidity: 80%
Specification:
|
Class |
W*H * D Size W*H*D |
(m3/h) Rated air flow |
( Pa ) Initial resistance |
( Pa ) Recommended resistance |
|
( mm ) Width* height*depth | ||||
G3 |
595*595*20mm |
1900 |
35 |
180 |
G3 |
290*595*20mm |
1000 |
||
G3 |
595*595*46mm |
3400 |
||
G3 |
290*595*46mm |
1700 |
||
G4 |
595*595*25mm |
1900 |
45
|
220 |
G4 |
290*595*25mm |
1000 |
||
G4 |
595*595*46mm |
3400 |
||
G4 |
290*595*46mm |
1700 |
Using :
Primary filtration for the ventilation system of the air condition
Remark:
Based on customers requirements , the whole roll and all the size are supplied.
Contact Person :wendy yang
Tel: +86-20-87469992
Mobile:+86-18902403184
qq:1519344031
Skype:a1301219297
Fax: +86-20-87469985
Why us
1We have specialized in the export of air filters for over 6years.
2 We have our own factory and brand.
3We provide OEM and ODM service ,sample production and service according to your demand
4The dimension can be customized.
5The delivery date will be within 2 weeks
6 The products have passed ISO90012008 and SGS certification.
7With independent R&D and design capablities.
8Well equipped with complete faciliies and skilled empolyees.
