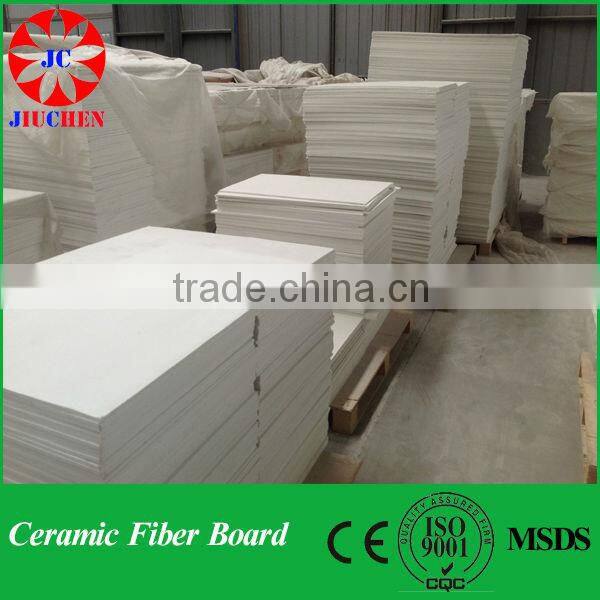

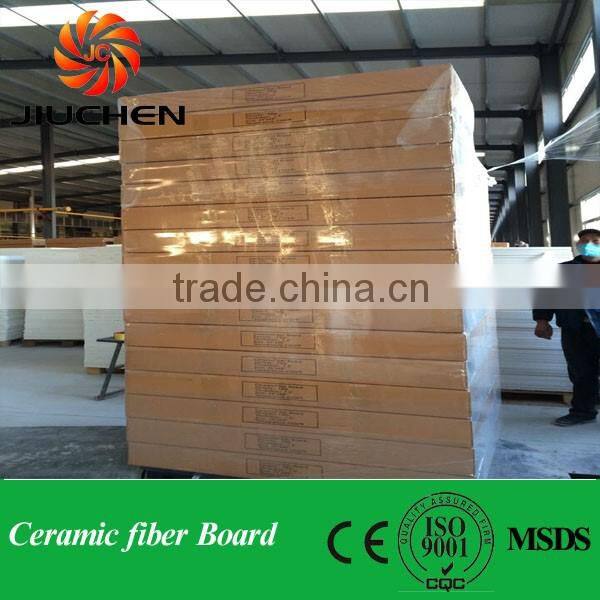

Heating radiators JC ceramic fiber board
The High Strength Ceramic Fiber Board for Heat Insulation are made of different refractory
fiber bulks with excellent chemical stability,organic and inorganic bond bywet method and
vacuum forming processing which is applitical to many kinds of industries.The fiber board with
a characteristics of hard, flexible,excellent strength and resistance against corrosion.
Heating radiators JC ceramic fiber board features:
Low thermal conductivity and shrinkage
Low heat storage
Excellent resistance against chemical attack
Easy to machine ,cut and install
Light weight
Excellent thermal shock resistnce and thermal stability
Low sound transmission
Asbestos free
Heating radiators JC ceramic fiber board applications:
High temperature seal, heat insulation
Refractory back lining
Thermal power,
Glass and enamel
Fire proofing
Barrier against flame and heat
Hot face layer for high velocity or abrasive furnace atmosphere
TDS of Heating radiators JC ceramic fiber board
ITEM |
PRODUCT |
COM |
STD |
HP |
HA |
HZ |
Classification TemperatureºC |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working TemperatureºC |
<1000 |
1050 |
1100 |
1200 |
1350 |
|
Color |
white |
white |
white |
white |
white |
|
Densitykg/m3 |
260-320 |
260-320 |
260-320 |
260-320 |
260 -320 |
|
Liner Shrinkage% After 24hours |
<2.5 |
<2.5 |
<3.5 |
<2.5 |
<2.5 |
|
1000ºC |
1000ºC |
(1000ºC) |
(1000ºC) |
(1000ºC) |
||
|
Thermal conductivity w/m.k density(128Kg/m3) |
0.085 400ºC |
0.085 400ºC |
0.085 400ºC |
0.085 400ºC |
0.085 400ºC |
|
|
0.132 800ºC |
0.132 800ºC |
0.132 800ºC |
0.132 800ºC |
0.132 800ºC |
||
|
0.180 (1000ºC) |
0.180 (1000°C) |
0.180 (1000ºC) |
0.180 (1000ºC) |
0.180 (1000ºC) |
||
Tensile strengthMPa (Strenth10%) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Chemical Composition % |
Al2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
Al2O3+SiO2+ ZrO2 |
- |
- |
- |
- |
99 |
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
Size(mm) |
Specification:600X400X10-50,900X600X20-50, 1200x1000x10- 50,2400x1200x10-50other according to customer's requirement |
|||||

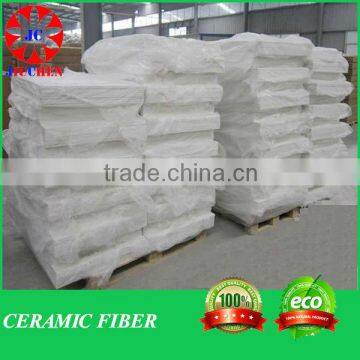

JC other insulation materials sample:
Welcome your inquiry!
