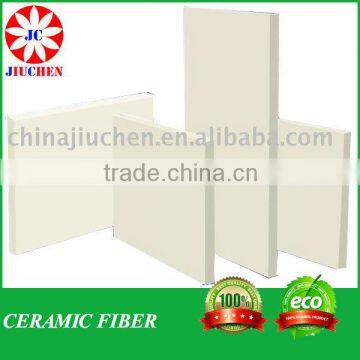

High Aluminum insulation fiber board is produced with different alumina-silica fibers for applications at temperatures up to 1400 ºC by vacuum formed technology.
With a characteristics of hard ,excellent strength ,light weight and easy to handle.It is ideal material for furnace ,boiler duct ,stack lining and other heat equipments.
Product Features
Low thermal conductivity and shrinkage
Low heat storage
Light weight
Excellent thermal shock resistance and thermal stability
Easy to handle ,cut and install
Low sound transmission
Asbestos free
ITEM |
PRODUCT |
COM |
STD |
HP |
HA |
HZ |
|
Classification Temperature(ºC) |
1100(2012℉) |
1260(2300℉) |
1260(2300℉) |
1360(2480℉) |
1430(2606℉) |
||
Working Temperature(ºC) |
<1000(1832℉) |
1050(1922℉) |
1100(2012℉) |
1200(2192℉) |
1350(2462℉) |
||
Color |
white |
white |
white |
white |
white |
||
Density(kg/m3) |
260~ 320 |
260~ 320 |
260~ 320 |
260~ 320 |
260~ 320 |
||
|
Liner Shrinkage (%) After 24hours |
<2.5 (1000℃/1832℉) |
<2.5 (1050ºC/1922℉) |
<2.5 (1100ºC/2012℉) |
<2.5 (1100ºC/2012℉) |
<2.5 (1350ºC/246℉) |
||
|
Thermal Conductivity (w/m.k) Density(128Kg/m3) |
0.085(400ºC/752F) |
0.085(400ºC/752F) |
0.085(400ºC/752F) |
0.085(400ºC/752F) |
0.085(400ºC/752F) |
||
|
0.132 (800ºC/1472F) |
0.132 (800ºC/1472F) |
0.132 (800ºC/1472F) |
0.132 (800ºC/1472F) |
0.132 (800ºC/1472F) |
|||
0.180 (1000ºC/1832F) |
0.180 (1000ºC/1832F) |
0.180 (1000ºC/1832F) |
0.180 (1000ºC/1832F) |
0.180 (1000ºC/1832F) |
|||
|
Tensile Strength (MPa) (Strenth10%) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
||
Chemical Composition % |
Al2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
||
Al2O3+SiO2+ ZrO2 |
- |
- |
- |
- |
99 |
||
ZrO2 |
- |
- |
- |
- |
15-17 |
||
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
||
Na2O +K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
||
Size(mm) |
Specification:600X400X3-50,900X600X3-50,other according to customer's requirement |
||||||
Product Application
1.Refractory lining for industrial furnace in wall, roofs, stacks and doors,etc.
2.Combustion chamber liners,boilers and heaters.
3.Back-up insulation for brick,and monolithic refractories.
4.Transfer of molten aluminum,and other non-ferrous E metals.
5.Expansion joint boards
6.Barrier against flame and heat
7.Hot face layer for high velocity or abrasive furnace atmosphere
Packing
Inner:plastic bags,outside carton box or pallet, or according to customer's requirement
ISO Quality management System
Production control:
Inspection report
* We are one of the leading Ceramic fiber manufactures and have the long-term exporting experience.
* 15 production lines,high quality equipment and big turnout, which can satisfied your market needs.
* Responsible production lead to high quality
* Fast delivery and favorable price
* The best package
* You can not only get the best products money can buy, but also get our experience and solution. We could to be the best friend and get the mutual benefits in this field with each other.
Any quesiton please contact me,hope we can built long term cooperation in the near future.
