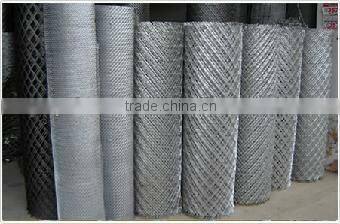

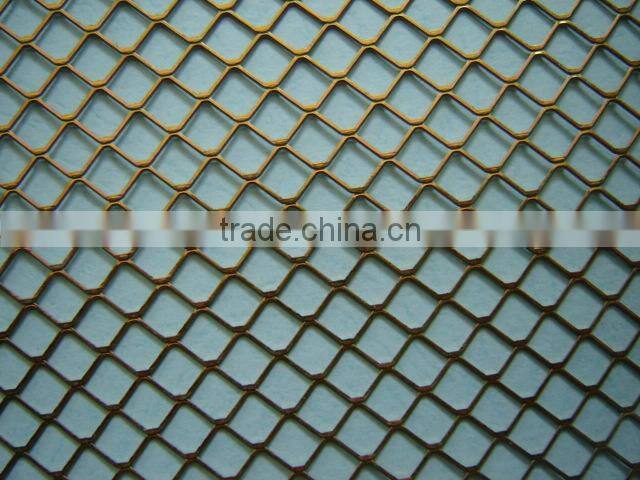

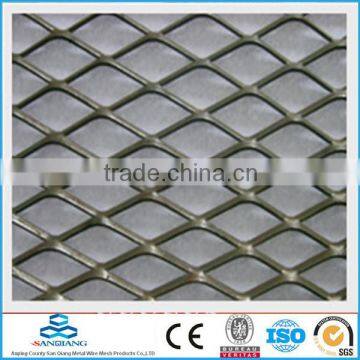

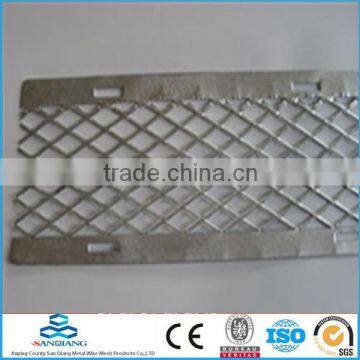

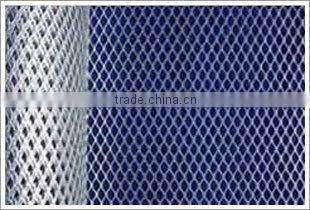

SQ-stainless steel wire mesh
1.Material:
Mn steel,low carbon steel,304stainless steel,aluminum, opper,nickel,aluminum-magnesium alloy metal panels.
2.Characteristics:
stamping;into a small metal mesh,steel mesh and stainless steel net;
stretching,elegant,durable.
3.Surface Treatment:
PVC Dip (spray,coated),hot-dipped galvanized,electro-galvanized,spray anti-rust paint and so on.
4.Uses:
mainly used in civil engineering batch of cement,machinery and equipment protection,
handicraft manufacturing,high-end speaker grille.Highway guardrail,sports venues fence,the road green belt protection.
It can also be used for foot tanker net,heavy machinery and boilers,oil mines,locomotives,ships,
such as working platforms,escalators,walkways and so on.
| Thickness | 0.5--10mm |
| Hole size | SWD:10--100mm LWD:10--100mm |
| Strand width | 10--100mm |
| Sheet size | width1--4m ,length :1--30m . plate or roll |
| Surfance treatment | pvc coated or galvanized ,standard and flattened |
| Type | light , middle ,high |
| Packing |
Less than one container with the waterproof paper and wooden pallet . One container with the waterproof paper |
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness(mm) |
Opening in Width (mm) |
Opening in Length (mm) |
Strand Width(mm) |
Roll Width (m) |
Roll Length (m) |
Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
We are the manufacturer which sales all kinds of expanded metal wire mesh.Welcome your enquiry and welcome you to our factory.We assure that we will delivery the goods as soon as receiving the deposit.
