Guangzhou 560G White Paint Booth Ceiling Filter

Specifications

1.High filteringefficiency
2.Large dust holding capacity;
3.Even more;
4.Working life;
5.Saves the systems operation cost;

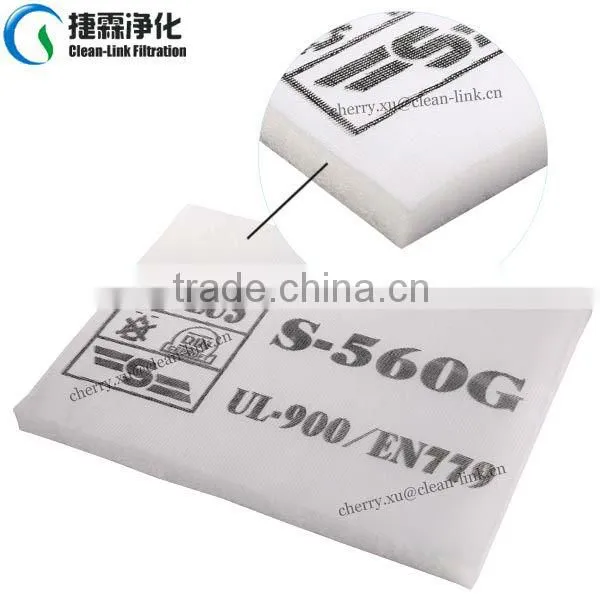

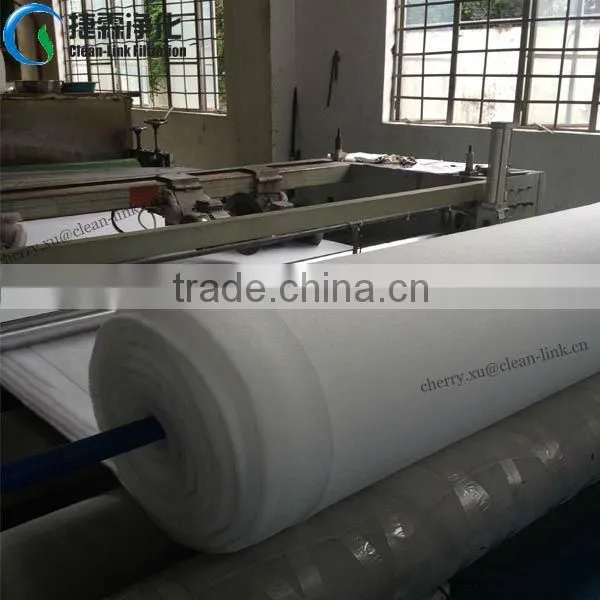

S-560G Ceiling fitler







1. It is made from the anti-break organic synthesis fiber in high-powered high melt way;
2. The wind surface of the mesh is specially compact, this structure make the filtering material keep the:



• high filteringefficiency
• large dust holding capacity;
• even more;
• Working life;
• Saves the systems operation cost;



    3.   It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry    processin



Using



1.Applied to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.



2.Applied to automotive factory, the auomobile repair shop, the motorcycle fctory, the bicycle factory, the operating system of the household appliances painting.





Spray booth ceiling filters datasheet:

Type	C-600G	C-560G	C-350G	AF-600G	FS-600G	S-600G
Material	Polyester
Initial resistance	30 Pa	35 Pa	30 Pa	45 Pa	35 Pa	35 Pa
Final resistance	450 Pa	430 Pa	400 Pa	430 Pa	450 Pa	450 Pa
Dust holding at tested final	650 g/m²	580 g/m²	380 g/m²	430 g/m²	620 g/m²	680 g/m²
Filtration class	F5
Resistance humidity	100%
Temp.resistance	120°C	120°C	110°C	120°C
Temp. short peaks	140°C	140°C	120°C	140°C
Thickness	22mm
Roll Sizes	1.6*21 2.0*21 1.0*21
