Specifications

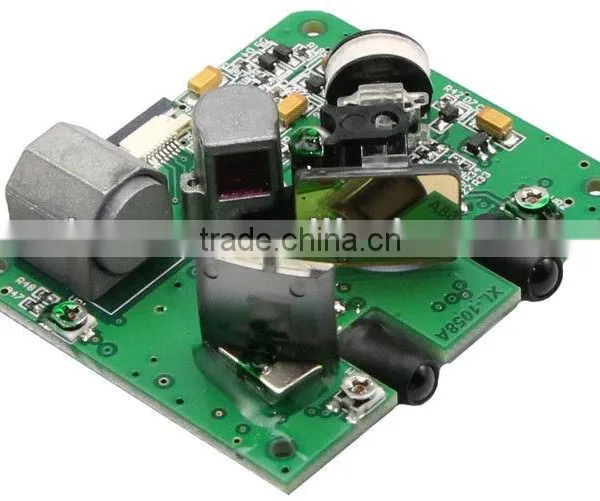

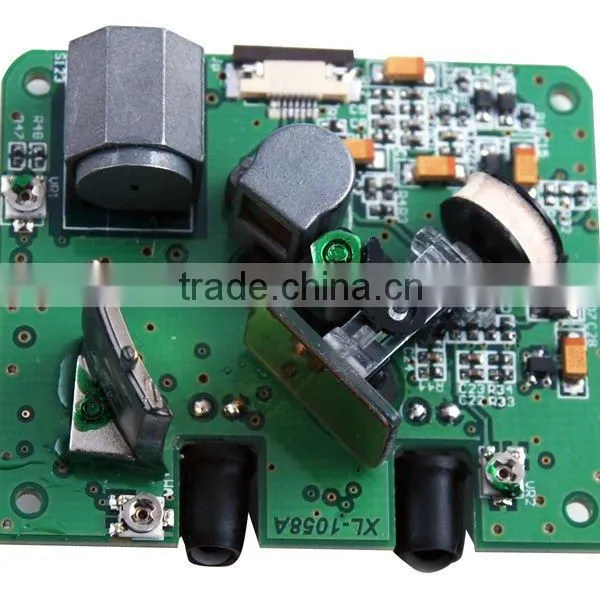

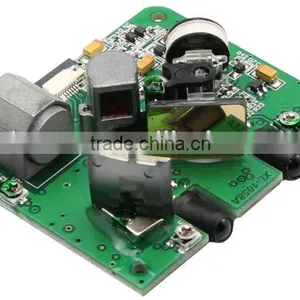

reader engine XL1058 A is Small body Simple installation,Reading depth of field.Infrared auto induction scan(optional).
reader engine XL1058 AFeature:
Small body.
Simple installation.
Reading depth of field.
Infrared auto induction scan(optional).
Standard 8 pins interface.
Easy to be integrated with all kinds of OEM equipments.
Can read all of standard 1D barcodes.
Performance
Type of illuminant: |
Visible laser diode (650nm) |
Reading preciseness: |
0.10mm (4mil) |
Reading speed: |
58 times/second |
Reading distance(Adjustable): |
60cm |
Induction distance (Adjustable): |
20cm |
Reading angle of dip: |
∠ 45º |
Reading angle of elevation: |
∠ 60º |
Power voltage: |
DC5V |
Working electricity: |
30mA |
Humidity: |
5% ~ 95% (Without condensation) |
Light intensity: |
Daylight, 7000LUX |
Minimum printing contrast: |
While at 650nm, the minimum absolute black/light contrast is 20% |
Exterior dimension(W×D×H): |
42.5mm×51mm×18.5mm |
Weight: |
24g |
Interfaces: |
8-Pin ZIF Adapter, industry standard output |
