Help Center100time/second, Barcode Engine XL-1955
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barcode Scanner
Brand Name:
SUNLUX
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic ,simple Installation OEM Barcode Scanner Module XL1059NegotiableMOQ: 10 Sets -
100time/second,simple Installation OEM Barcode Scanner Module XL1059NegotiableMOQ: 10 Sets
-
Small Body ,simple Installation OEM Barcode Scanner Module XL1059NegotiableMOQ: 10 Sets
-
Standard 8 Pins Interface Scan Engine XL1000NegotiableMOQ: 100 Pieces
-
1D Scan Module,simple Installation OEM Barcode Scanner Module XL1059NegotiableMOQ: 10 Sets
Products Status
Stock
Type
Barcode Scanner
Brand Name
SUNLUX
Model Number
XL-1955
Place of Origin
Guangdong, China

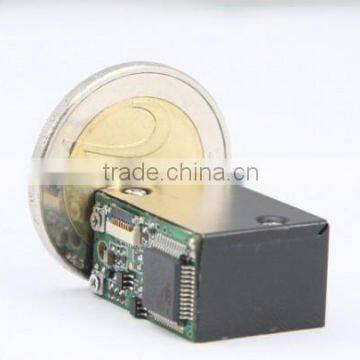

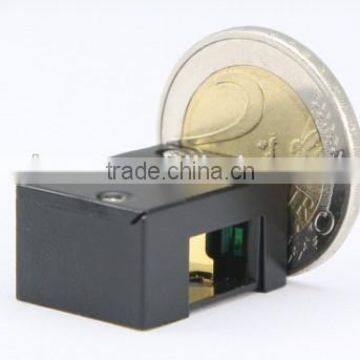

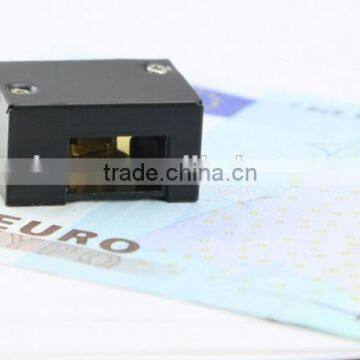

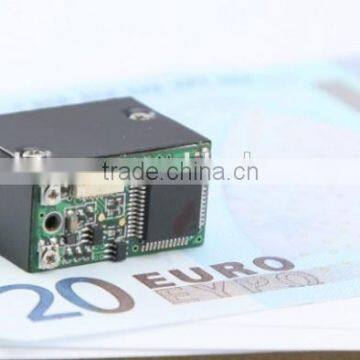

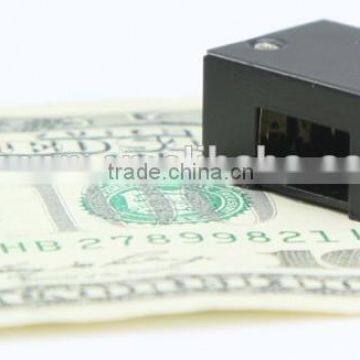

Barcode Reader Engine XL-1955 Feature:
23mm x 18.5mm x 12.5mm
Contain scanner engine and decoder
Can read all kinds of standard 1D bar codes
Easy to be integrated with PDA, very small size
Standard 12 pins interface
Support RS232, PS/2, and USB interface
.
Performance
| Light Source Visible Laser Diode 650nm |
| Scan Pattern Single line Scan |
| Decode speed 100 times / second |
| Scan Precision 4mil (0.10mm) |
| Scan Width 30 mm @ scan window, 220 mm @ 200 mm |
| Scan Mode manual |
|
Decode Capability EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. |
| Scan Depth of field 0-280mm (13mil) 0-220(10mil) |
| Deviation Angle 50° |
| Tilt Angle 35° |
| Rotary Angle 65° |
| Deflection Angle 55° |
| Print Contrast 30% UPC/EAN 100% |
| Size L x W x H: 23mm x 18.5mm x 12.5mm |
| Weight 10g |
| Voltage DC5V ± 5% |
| Operating Current 110mA Tipica to 130mA Max |
| Static Current <1.2mA |
| Laser Class EN60825-1, Class 1 |
| Emissions PCC Part 15 Class 1 |
| Laser Safety Performance Meet the Grade II National Criteria for Laser Safety |
| Operating Temperature -20℃ to 45℃ |
| Storage Temperature -40℃ to 60℃ |
