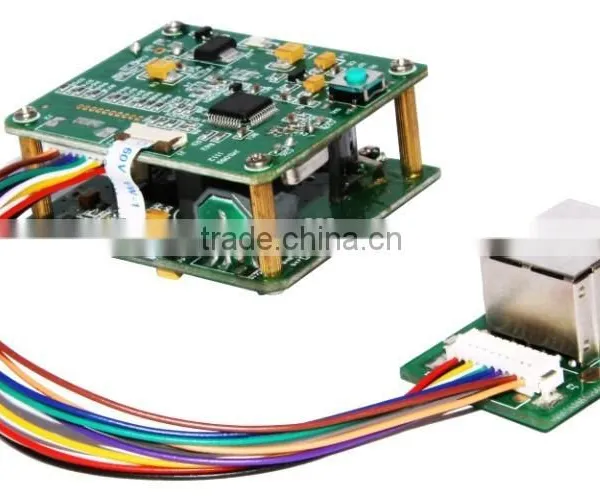

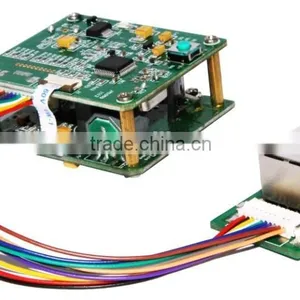

1D scan Module,simple installation OEM barcode scanner module XL1059

Type of illuminant:

Visible laser diode (650nm)

Reading preciseness:

0.10mm (4mil)

decode speed:

100 times/second

   Reading distance(Adjustable):

60cm

Induction distance (Adjustable):

20cm

Reading angle of dip:

∠ 45º

Reading angle of elevation:

∠ 60º

Power voltage:

DC5V

Working electricity:

30mA

Humidity:

5% ~ 95% (Without condensation)

Light intensity:

Daylight, 7000LUX

Minimum printing contrast:

While at 650nm, the minimum absolute black/light contrast is 20%

Exterior dimension(W×D×H):

49mm×42mm×25mm

Weight:

33g

Interfaces:

8-Pin ZIF Adapter, industry standard output
