brick coil meshhigh quality expanded galvanised or stainless steel mesh
offering effective joint and crack reinforcement

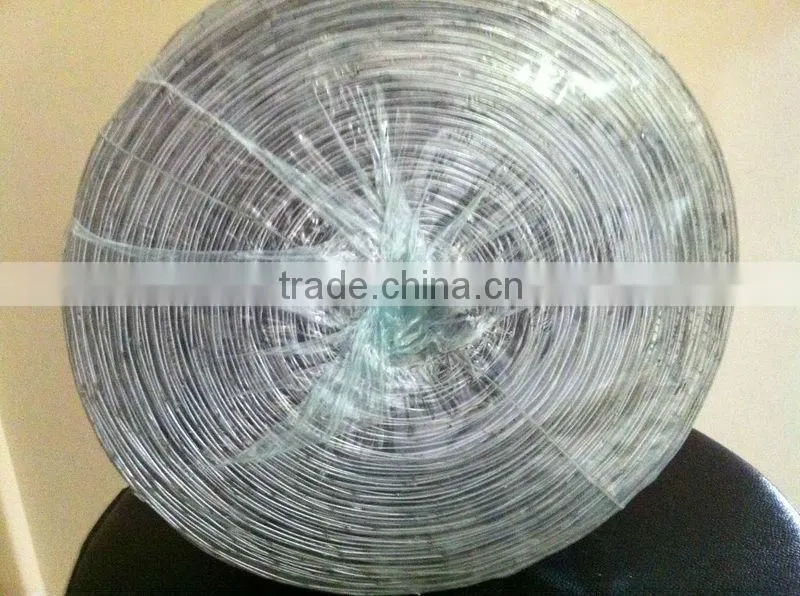

Coil Mesh/Brick Coil Mesh
1.material:
A high quality expanded galvanised or stainless steel mesh
2.function:
Coil Mesh use primarily as anti-cracking reinforcement in the construction of brick and block masonry.
3.advantages:
Coil Mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.
4.Installation:

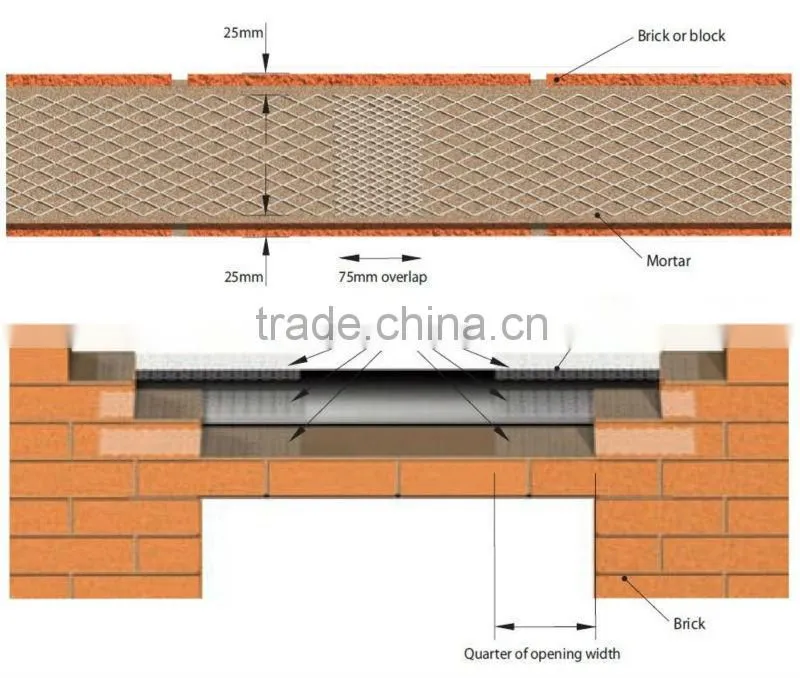

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.The reinforcement is then simply embedded in the mortar for the next course.
Model |
Type |
Length |
Thickness |
CL64 |
64MM/2.5inch |
10M-100M |
0.35MM-0.5MM |
CL101 |
101MM/4inch |
10M-100M |
0.35MM-0.5MM |
CL114 |
114MM/4.5inch |
10M-100M |
0.35MM-0.5MM |
CL152 |
152MM/6inch |
10M-100M |
0.35MM-0.5MM |
CL178 |
178MM/7inch |
10M-100M |
0.35MM-0.5MM |
CL200 |
200MM/8inch |
10M-100M |
0.35MM-0.5MM |
CL229 |
229MM/9inch |
10M-100M |
0.35MM-0.5MM |
CL305 |
305MM/12inch |
10M-100M |
0.35MM-0.5MM |
some picts:
