Economical Stainless Steel Wire Mesh
Specifications
as a result of stainless steel acid,alkaline,wear-resistant,heat-resistance properties,commonly used in acidCertification:ISO

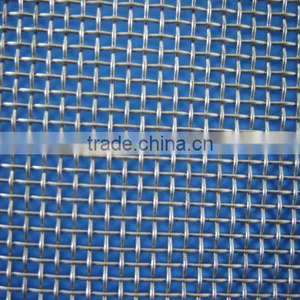

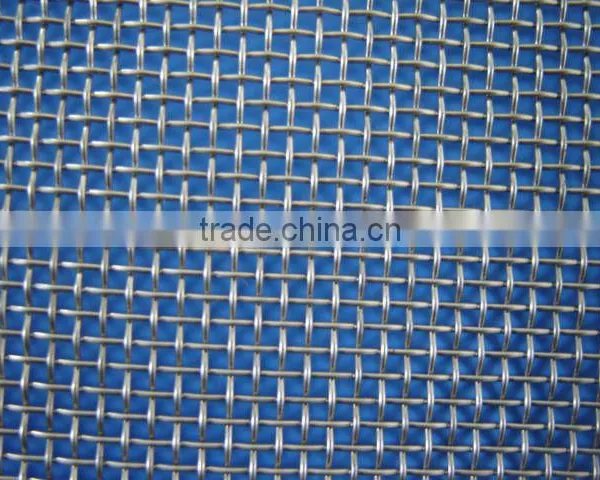

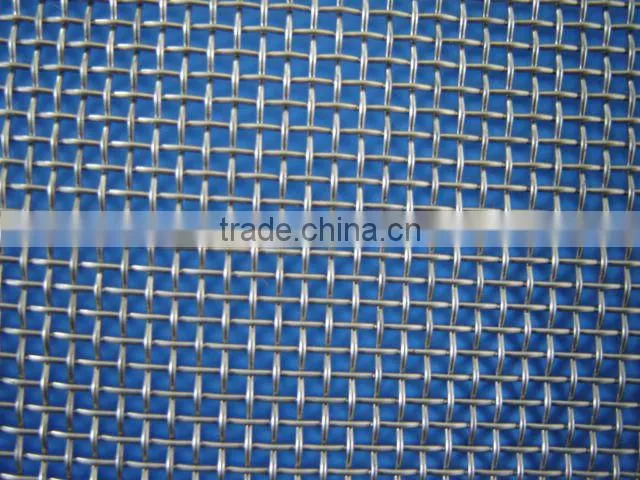

Stainless Steel Wire Mesh
1.wire gague:SUS302 304 304L 316 316L
2.application:as a result of stainless steel with acid,alkaline,wear-resistant,heat-resistance properties,commonly used in acid,alkali enviroment screening mesh and filtration filter.
3.also be used for mechanical attachement security,used to replace the wooden walls and ceilings made.
Stainless Steel Woven Wire Mesh (Plain Weave) | ||||||
mesh/inch |
wire diameter (mm) |
aperture (mm) |
- |
mesh/inch |
wire diameter (mm) |
aperture (mm) |
2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 |
|
3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 |
|
4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 |
|
5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
|
6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 |
|
8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 |
|
10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 |
|
12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 |
|
14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 |
|
16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 |
|
18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 |
|
20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 |
|
26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
|
30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
|
40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
|
50mesh |
0.19 |
0.318 |
400mesh |
0.025 |
0.0385 |
|
