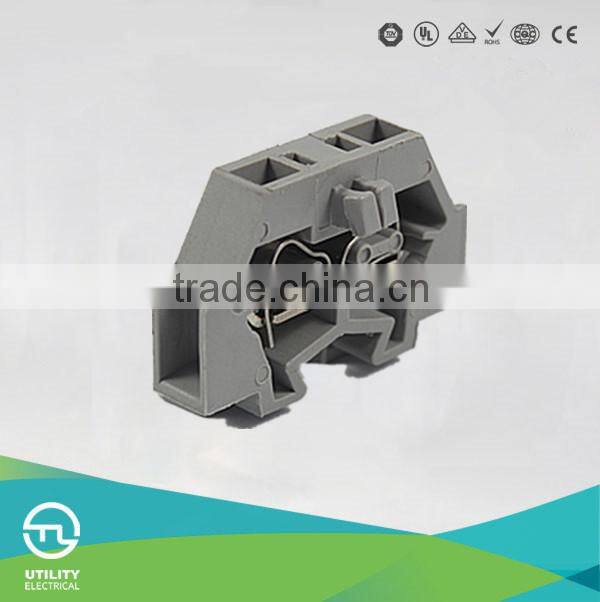

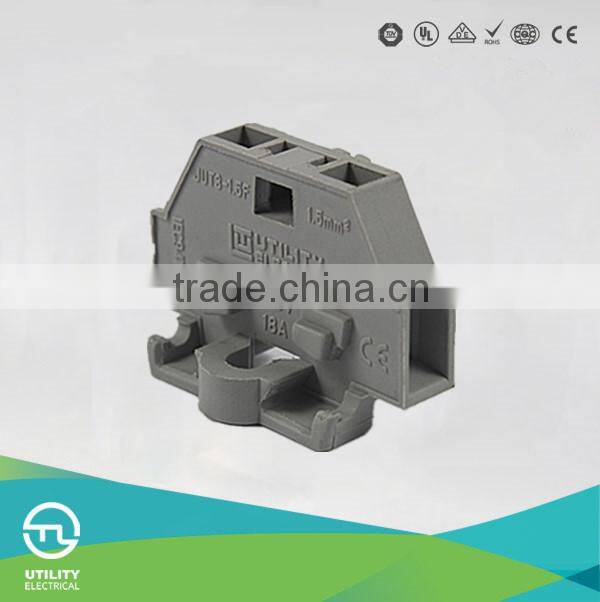

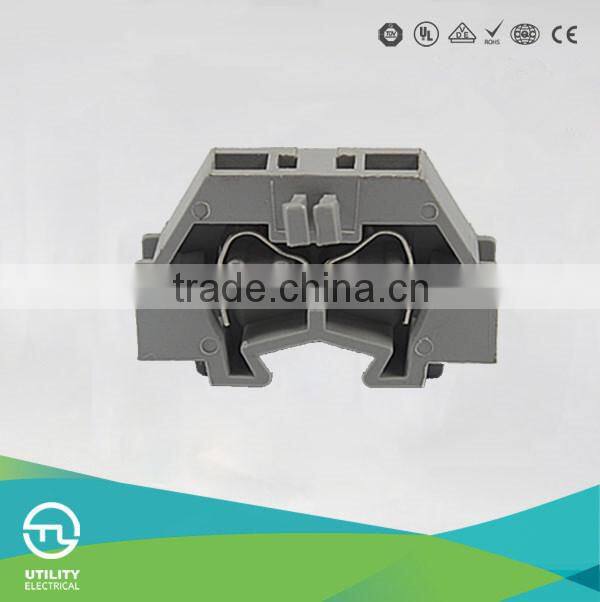

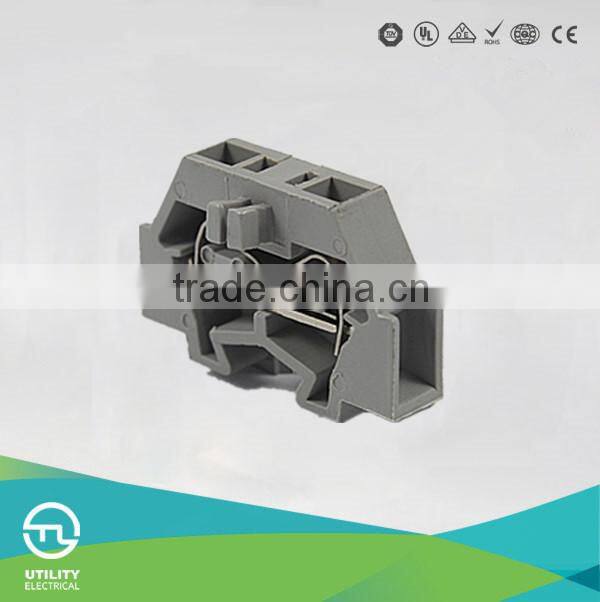

400V 18A DIN Rail Mount Spring Type Terminal Blocks With Rated Section 0.8-1.5mm2
US$ 1.5 - 5
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
UTL
Model Number:
JUT3-1.5F
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400V 18A Modular Din Rail Miniature Terminal Blocks For Any Kind Of WiresUS$ 0.01 - 0.1MOQ: 1000 Pieces -
Maufacturer Supplier Double-layer Wiring Terminal AWG24-12 2.5mm CE UL ListUS$ 0.19 - 0.27MOQ: 1000 Pieces
-
UTL Products China Suppliers Of Electric PCB Screw Terminal Block Pin 0.2-6mm2/0.2-4mm2US$ 0.01 - 1MOQ: 1000 Pieces
-
UTL Bulk Sample Products Auto Electric Material PCB Terminal Block 0.14-2.5mm2 300V/18A(10A)US$ 0.01 - 1MOQ: 1000 Pieces
-
PCB Terminal Block Manufacturer With UL, CE, RoHS / PCB ConnectorUS$ 0.001 - 1MOQ: 1
Place of Origin
Zhejiang, China
Brand Name
UTL
Model Number
JUT3-1.5F
Conductor Size
21 - 30 AWG
Type
Other, Spring, Din rail terminal block
Practical Features
Return-pulling type spring terminal connectes wire from upside, and the wire-in mouth of lead is set at the top of terminal, whose adcantage is as follows: wire-crossing groove is installed adjacently t oterminal row, which can make full use of space of electric cupboard, heighten wiring position and simplify wiring operation .
Additionally, the return-pulling spring terminal owns following characteristics:
1,Clear mark system;
2,Maxi-mum wiring capacity;
3,Flexible in sert-pull type bridging component system.
Parameter
| Solid Wire (AWG) | 24-10 |
| Voltage Rating (V) | 400 |
| Current Rating (A) | 18 |
| Thickness (mm) | 5 |
| Width (mm) | 25 |
| U rail Height (mm) | 17.2 |
| Rated Section (mm²) | 0.8-1.5 |
| Line-shelling length (mm) | 8-9 |
| International Standard | IEC 60947-7-1 |
Product Details

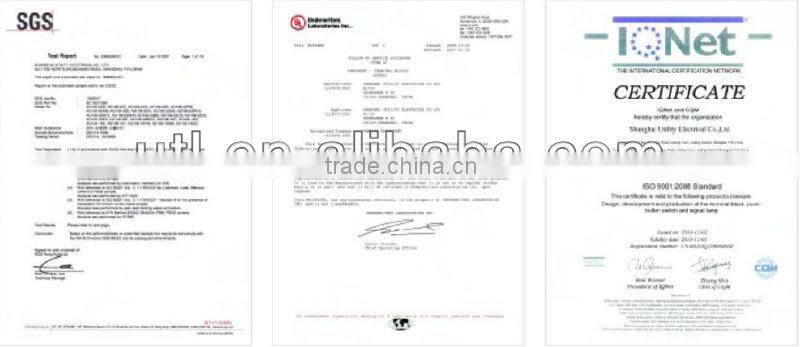

Certification

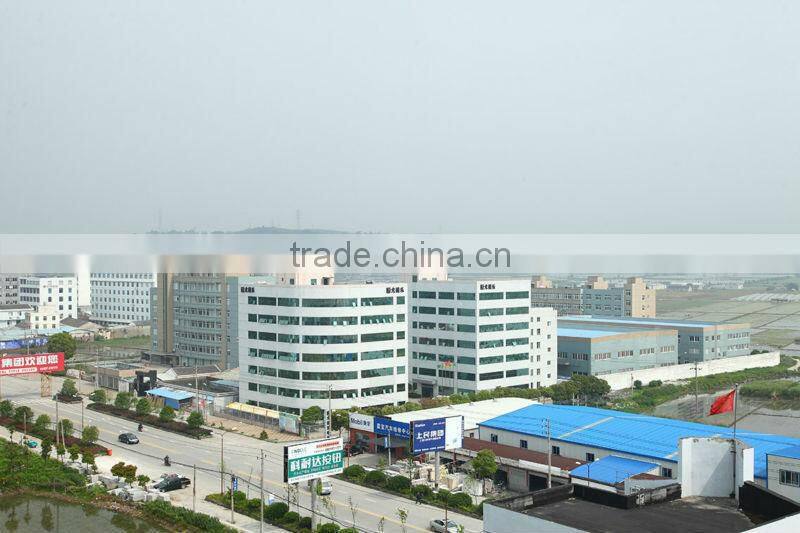

Factory
Products Line
Warehouse
Clients
Application
Company Events
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
1997
Factory Size
5,000-10,000 square meters
Total Employees
201 - 300 People
