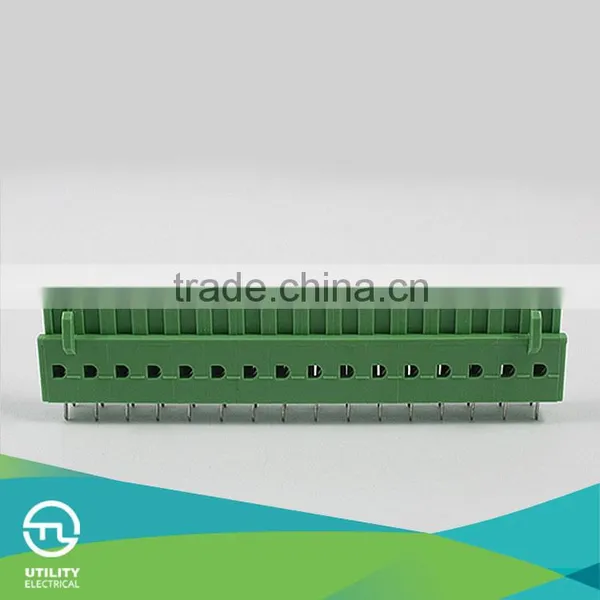

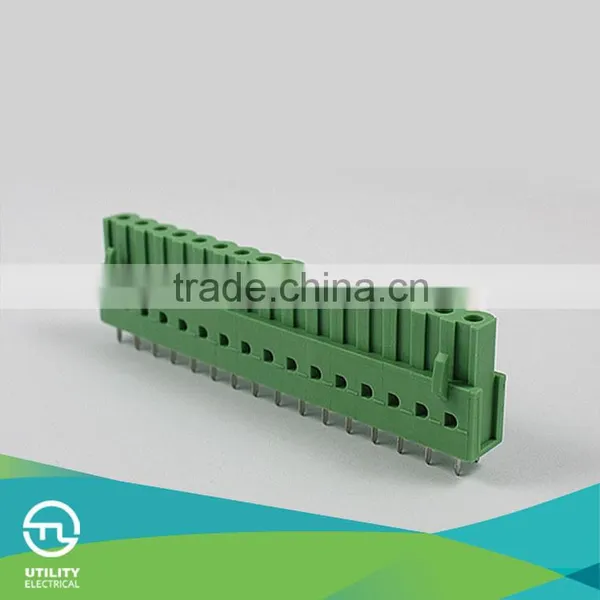

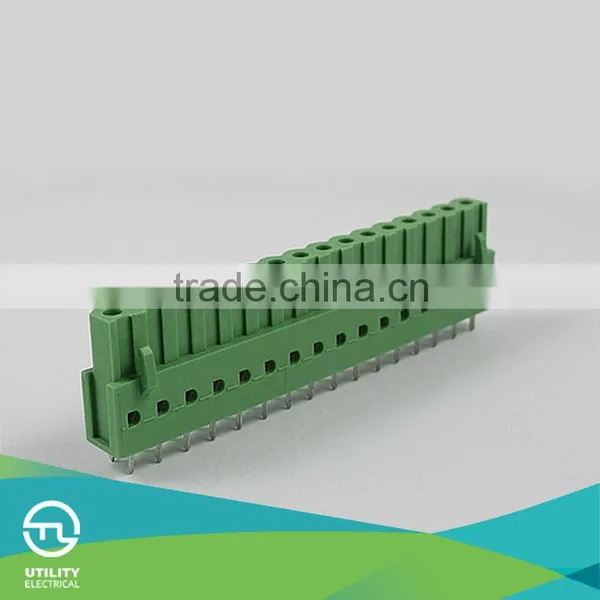

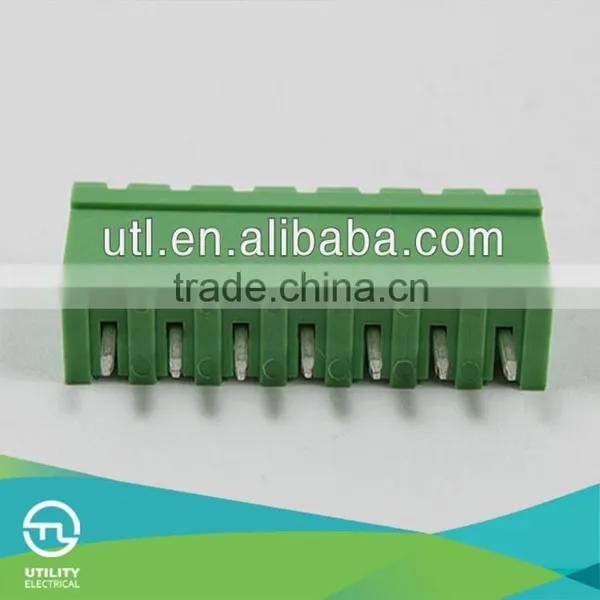

Professional Manufacture for 25 Years PCB Terminal Block with UL, CE, RoHS
♦ PARAMETER
| Volatage V | 300V |
| Current | 10A/18A |
| Wire Size(AWG) | 30-12 AWG |
| Solid(mm2) | 0.14-2.5mm2 |
| Strand(mm2) | 0.14-2.5mm2 |
| Torque(N*m) | 0.22-0.25 |
| Stripping Lengte(mm) | 7mm |
| Insulation Material | PA66 |
| Inflammability Class(UL94) | V0 |
| Contact | Phosphor Bronze |
| Screw | M2 Steel |
| Operation Temperature | -40°c~+120°c |
| Pitch | 5.00mm |
a.Material :Insulation :Rodia raw material importfrom French,inflaming resistance achive UL94-VO grade.
b.Conductive part:preference for to Phosphor Brass material,content of 99.99% copper in order to ensure the good electric conductive of the product .
♦ PRODUCT DETAIL
Package : standard package
Leading time : small or sample within 7 days large quantity 10-15 days
When you chose our products ,but not sure which one is exactly you need ,please tell me the following question I will find out the perfect one for you !
1 Application ?
2 Which type you need(Din-Rail , PCB or Other )
3 the parameter of the terminal you need ( Thickness , AWG ,Current Voltage more detail is welcome )
4 If you can not find the one you looking for in our company you can let me know or attach the sample to us we have our own R&D Center we will give you better solution
YOU can reach me :
Skype: Sam-UTL
Mobile: +86 13703908207
Your satisfaction is my infinite power!
