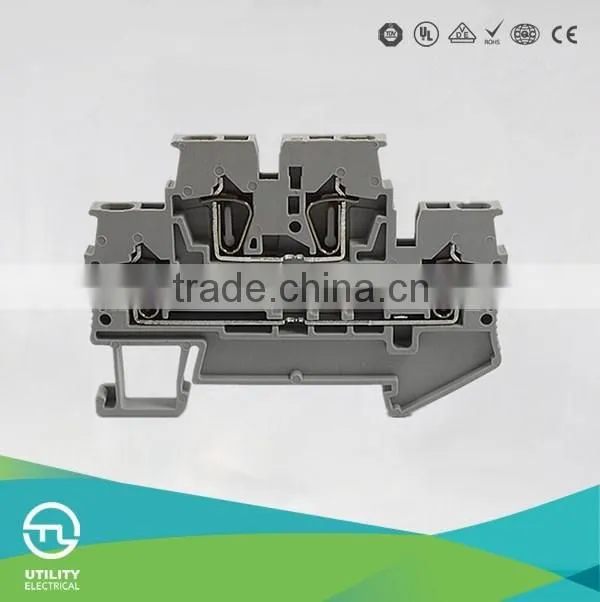

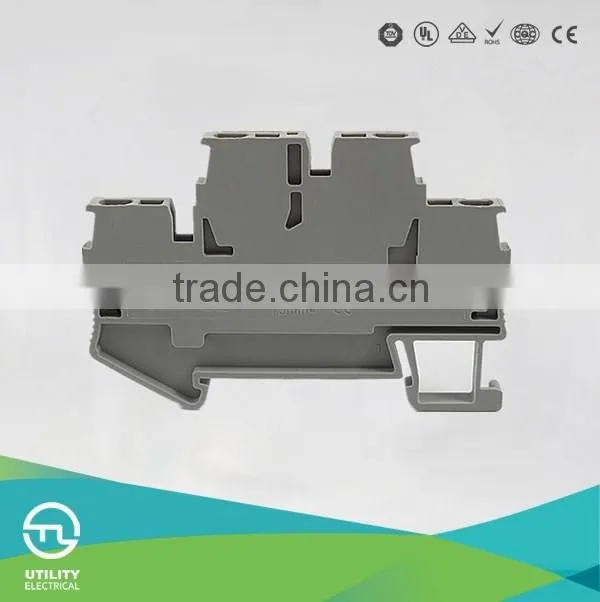

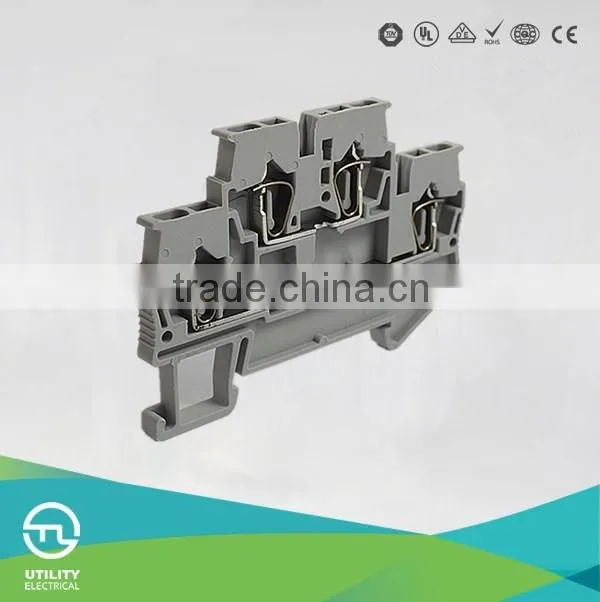

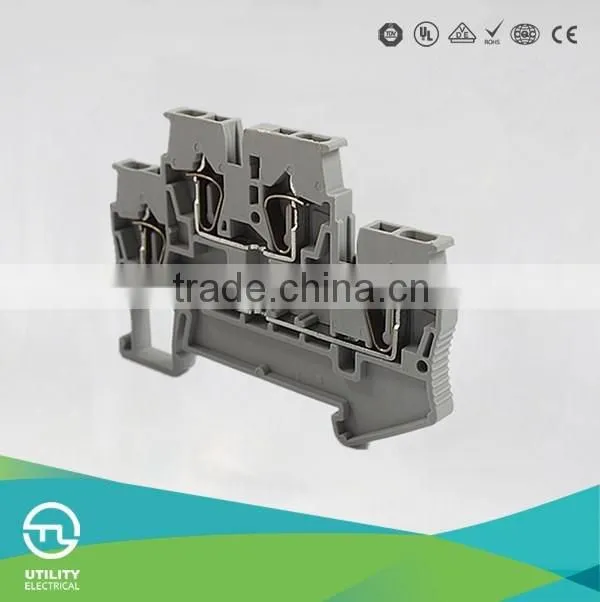

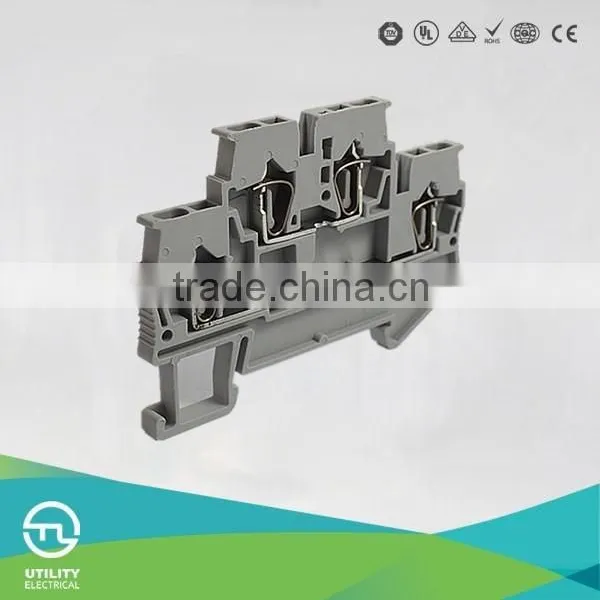

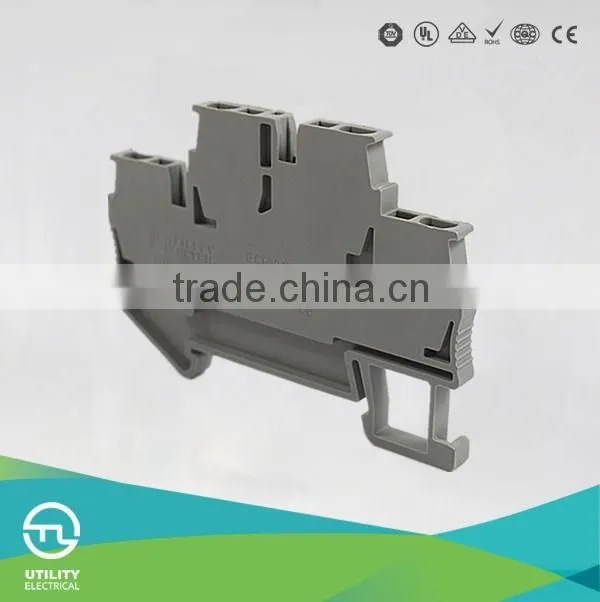

Double-layer Return-pulling Spring Type Terminal Blocks
US$ 1.5 - 5
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
UTL
Model Number:
JUT3-1.5/2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CONDUCTOR NEW HOT TERMINAL BLOCKS JUT3-2.5/2 SPRING TYPE INDUSTRIAL DISTRIBUTION DOUBLE-LAYERUS$ 0.01 - 10MOQ: 1000 Pieces -
PA66 VO 800V 24A Side-entry Insulated Screwless Terminal BlockUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
New UTILITY WAGO Four Lead Through Type WiringTerminal BlockUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
New UTILITY WAGO 500V 17.5A Four Lead Through Type WiringTerminal Block Spring TypeUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
New UTILITY Spring Cage Clamping Terminal BlockUS$ 0.01 - 0.1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
UTL
Model Number
JUT3-1.5/2
Conductor Size
21 - 30 AWG
Type
Other, Spring, Din rail terminal block
Practical Features
Double-layer return-pulling spring terminal
Double-layer return-pulling spring terminal can be connected with two different potentials on terminal, compared with single-layer terminal with the same rated section and thickness, the double-layer wiring could save 50% of track length, the upper/lower layer of double-layer terminal both can be bridge-connected and marked in order to finish different wiring duty, making lead circuit ownership relationship clearer for being distinguished.
Parameter
| Solid Wire (AWG) | 26-16 |
| Voltage Rating (V) | 500 |
| Current Rating (A) | 17.5 |
| Thickness (mm) | 4.2 |
| Width (mm) | 67.5 |
| U rail Height (mm) | 49 |
| Rigid cable (mm2) | 0.14-2.5 |
| soft cable (mm2) | 0.14-1.5 |
| International Standard | IEC 60947-7-1 |
