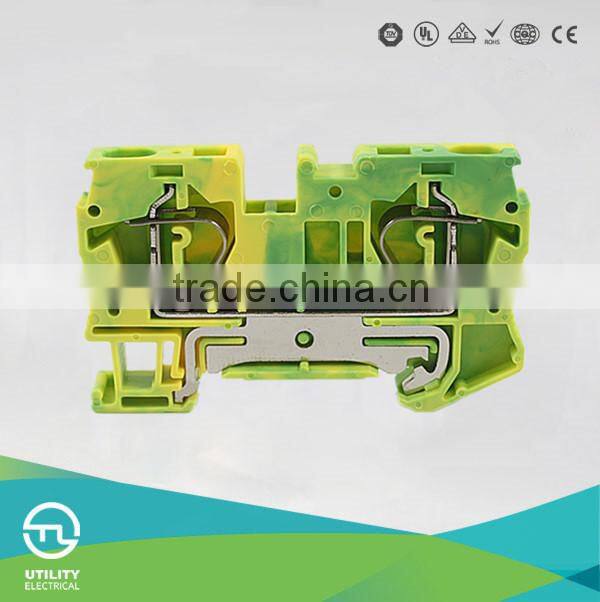

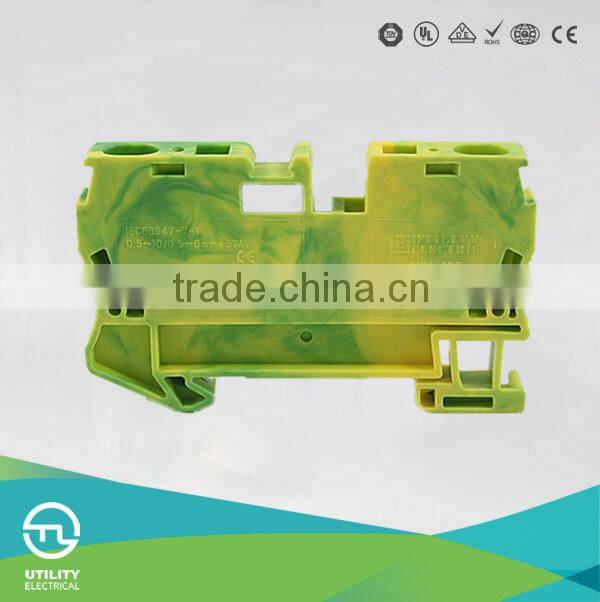

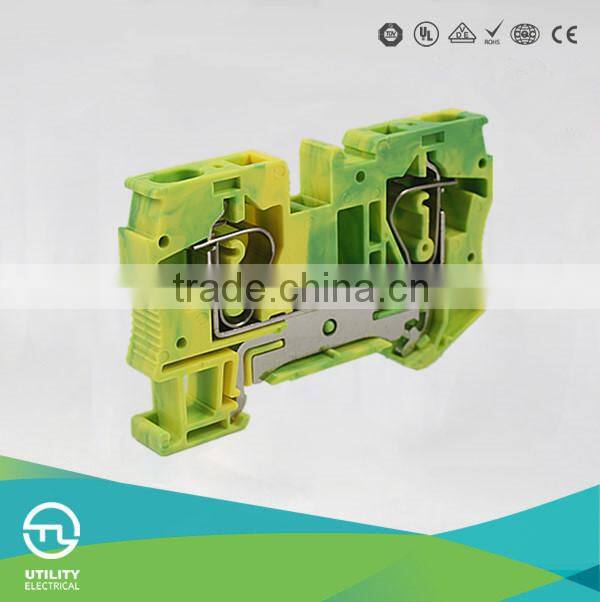

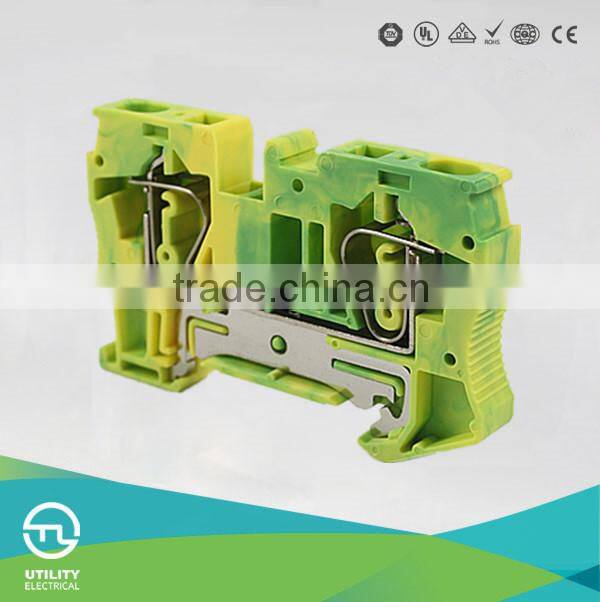

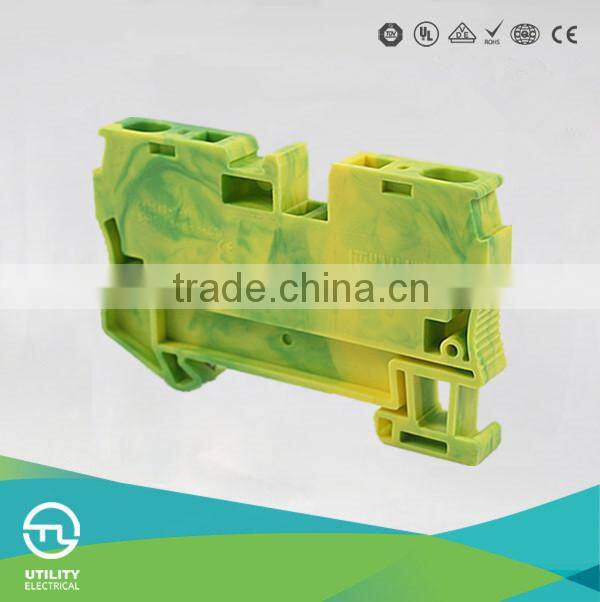

Help CenterUTL GROUNDING TYPE ELECTRIC TERMINAL BLOCKSW WITH COLOR YELLOW/GREEN
Related Products
-
TWO-LEAD THROUGH LANDING TERMINAL BLOCKS JUT3-6PE CABLE CONNECTORS CONDUCTOR 57AUS$ 0.01 - 10MOQ: 1000 Pieces -
JUT3-2.5F Electric Cable Connector Spring Cage Clamp Terminal Blocks Free Sample WorldwideUS$ 0.01 - 0.1MOQ: 1
-
31A Mount Spring Grounding Type 24-12AWG Electric Terminal BlocksUS$ 1.5 - 5MOQ: 10000 Pieces
-
Return-pulling Mount Spring Landing Type Conductor Size 24-12AWG Terminal BlocksUS$ 1.5 - 5MOQ: 10000 Pieces
-
500V 24A Spring Type Terminal Blocks With Rated Section 0.8-2.5mm2US$ 1.5 - 5MOQ: 10000 Pieces
Practical Features
Return-pulling type spring terminal connectes wire from upside, and the wire-in mouth of lead is set at the top of terminal, whose adcantage is as follows: wire-crossing groove is installed adjacently t oterminal row, which can make full use of space of electric cupboard, heighten wiring position and simplify wiring operation .
Additionally, the return-pulling spring terminal owns following characteristics:
1,Clear mark system;
2,Maxi-mum wiring capacity;
3,Flexible in sert-pull type bridging component system.
Return-pulling type spring grounding terminal blocks
Return-pulling type spring grounding terminal blocks owns following properties: its outline and thickness is the
same as through terminal with the same rated section area, the landing terminal could be laid closnext to through terminal directly, when the grounding terminal is plugged into track, it would be electrically connected with guide track auto matically, and the track is landing bus. the identification property ensures that the ownership of lead and circuit is clear to ditinguish.
Parameter
| Solid Wire (AWG) | 24-8 |
| Current Rating (A) | 57 |
| Thickness (mm) | 8.2 |
| Width (mm) | 65.5 |
| U rail Height (mm) | 43.5 |
| Rigid cable (mm2) | 0.5-10 |
| soft cable (mm2) | 0.5-6 |
| International Standard | IEC 60947-7-1 |
Product Details
Certification

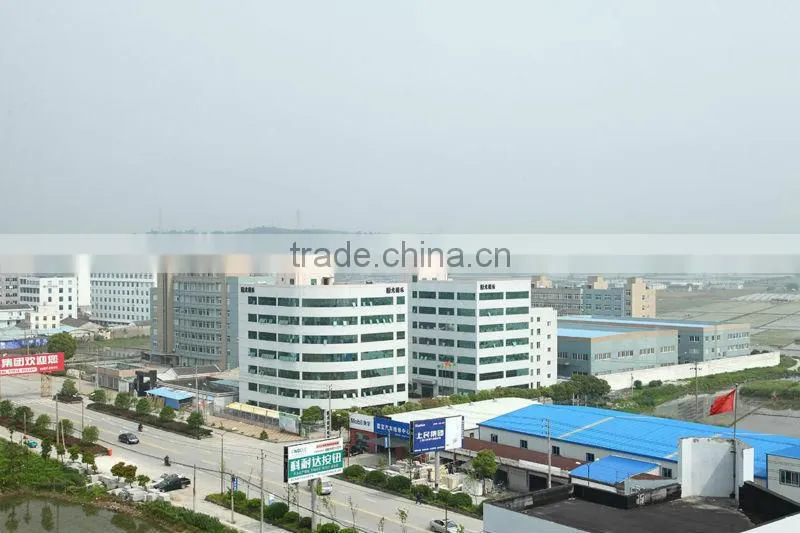

Factory
Products Line
Warehouse
Clients
Application
Company Events
