Parameter
Brand Name |
UTL |
Model Number |
JUT3-6PE |
Place of Origin |
Zhejiang, China |
Type |
Spring |
Current rating(A) |
57A |
Rigid Cable |
0.5-10mm² |
Voltage Rating (V) |
- - - - |
Soft Cable |
0.5-6mm² |
Solid Wire (AWG) |
24-8 |
|
|
Thickness (mm) |
8.2mm |
Width (mm) |
65.5mm |
Height U (mm) |
43.5mm |
Height G (mm) |
- - - - |
Order Number |
5 574 308 |
International Standard |
IEC 60947-7-1
|
Products Specifications
1. Return-pulling type spring terminal can be installed on NS35 U-type.
2.Wire-crossing groove is installed adjacently to terminal row,which can make full use of space of electric cupboard, heighten wiring density, provide good angle for watching wiring position and simplify wiring operation.
3. clear mark system
4. maximum wiring capacity
5. flexibla in sert pull type bridging component system.

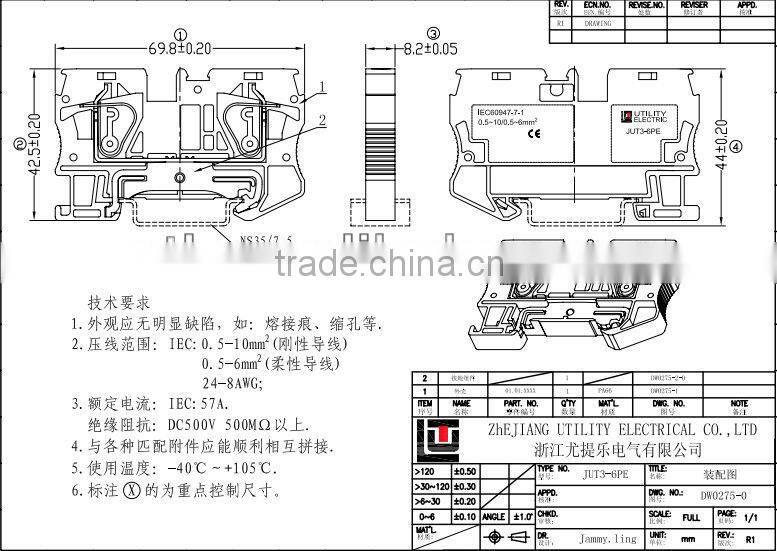

Products Drawings
UTILITY ELECTRICAL CO., LTD.
Welcome to visit us.
Excellent Manufacturing & Quality Service
Company information
We are a profession manufacture was found in 1990. We also devote to producing all kinds of terminal blocks. Thanks to the sustaining research and development, we have grown into a leading manufacturer in this field.
Factory
MOLD WORKSHOP
There are more than 500sets molds in our mold workshop. Assets mold occupancy estimaed 5,000,000 dollars. If the oeder is large enough, we can re-open the mold to produce customer's special needs.
INJECTION WORKSHOP
We have 15sets of injection molding machines, precise temperature control to ensure product performance and color.
AUTOMATED ASSEMBLY WORKSHOP
Every 3 seconds for one piece. We are still evolving for better products and fasyer delivery time.
WAREHOUSE
We have over 2500 square meters of space to store the customers' goods. Facilitate the timely delivery.
sucessful cases
Certifications
The main products have gained the certificates, such as VDE, UL, CE, CS, ROHS, ISO9001, CCC and CCS etc.
