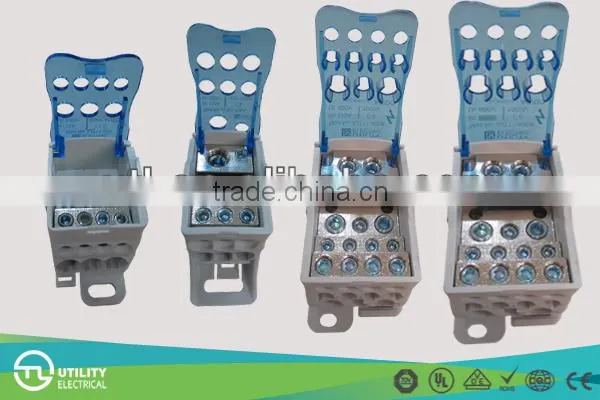

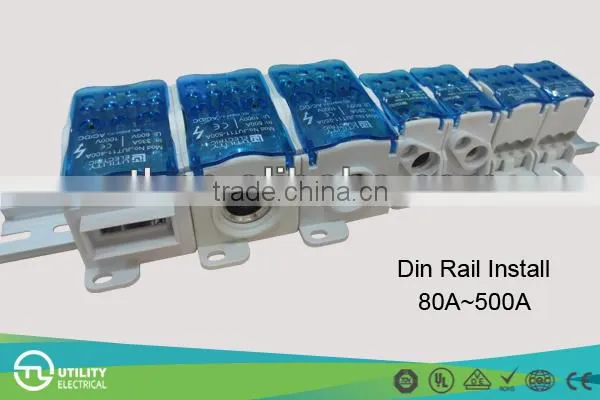

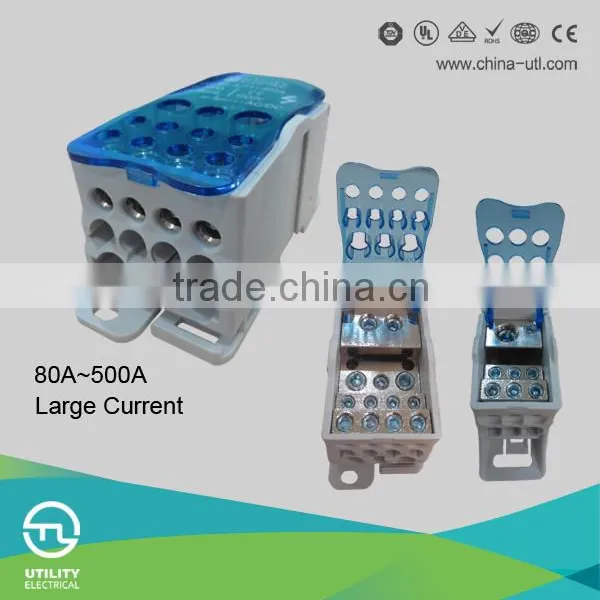

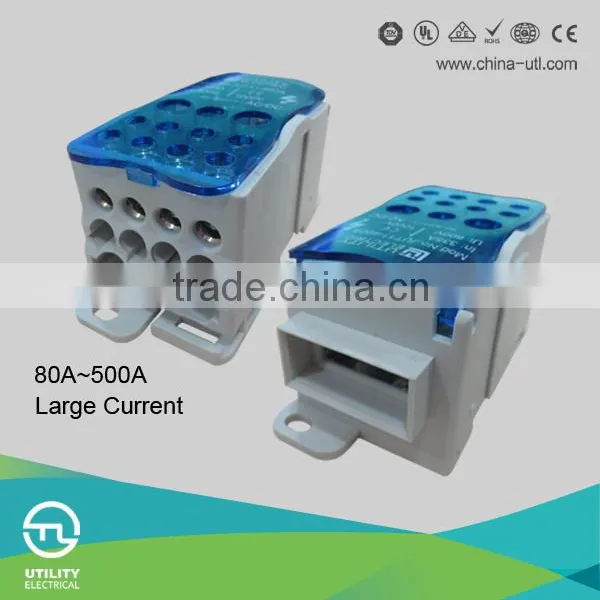

UL standard Al Cu conductor terminal blocks 80mm -500mm
Our new range of 1000 V terminals are well suited for applications where higher supply voltages are used, such as in drives, railway systems, ships and boiler control. They are also suitable for DC applications, making them a perfect choice for photovoltaic connections
Safe connections between Al/Cu
The compactly-sized 1000 V universal terminals are suitable for a safe connection between aluminium and copper conductors in a variety of cross-section ranges. Because the terminals can be used with both aluminium and copper conductors, it makes life easier for designers in the OEM industry and mechanical engineering.
Higher operational temperature
For the reason that the 1000 V terminals can be used in high temperature conditions of up to +90 °C, they are ideal for various demanding industrial application areas: power distribution systems, machine engineering, shipbuilding and industrial plants..

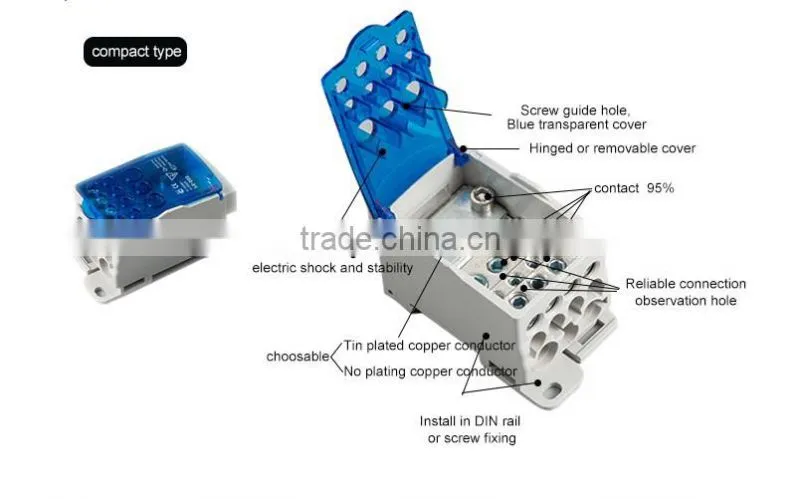

Details
1. Material:
Cover: PC UL94-V0
Body: PA66 UL94-V0
Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated)
Fixed Part: Steel(Zinc Plated)
Standard: IEC 60947-7-1 IP20
2. Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;
3. Mechanical:
| Torque force | 1.2 N.m Max/3.5 N.m Max |
| Stripping Length | 18~20mm |
| Connection Capacity | 2.5~6mm2/2.5~16mm2 |
| Operationg Temperature | -45°c~+105°c |
Pictures
Item |
Current (Amp) |
Voltage (V) |
Income line specification (mm²) |
Quality of hole (pcs) |
Dimensions (L×W×H)(mm) |
JUT11-80 |
85A |
690V IEC |
→In 6 to16 Out→2.5 to 6 Out→2.5 to 16 |
×1 ×4 ×2 |
30×69×49 |
JUT11-125 |
150A |
690V IEC |
→ In10 to 35 → In 6 to 16 Out→ 2.5 to 16 |
×1 ×4 ×6 |
29×77×46 |
JUT11-160 |
200A |
690V IEC |
→ In10 to 70 → In 6 to 16 Out→ 2.5 to 16 |
×1 ×4 ×6 |
29×77×46 |
JUT11-250 |
255A |
690V IEC |
→ In 35 to 120 Out→ 6 to 35 Out→ 2.5 to 16 Out→ 2.6 to 10 |
×1 ×2 ×5 ×4 |
47×96×50 |
JUT11-400 |
335A |
690V IEC |
→ In 95 to185 Out→ 6 to 35 Out→ 2.5 to 16 Out→ 2.5 to 10 |
×1 ×2 ×5 ×4 |
47×96×50 |
JUT11-500 |
520A |
690V IEC |
→ In 4× 15.5×0.8 to 8 ×24 Out→ 6 to 35 Out→ 2.5 to 16 Out→ 2.6 to 10 |
×1
×2 ×5 ×4 |
49×96×50 |
