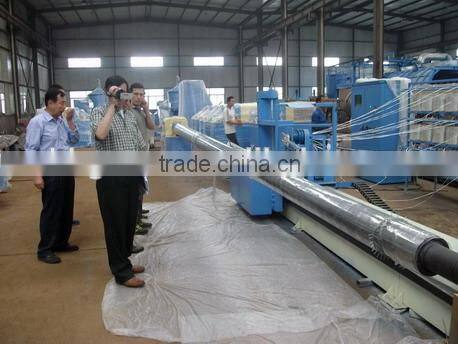

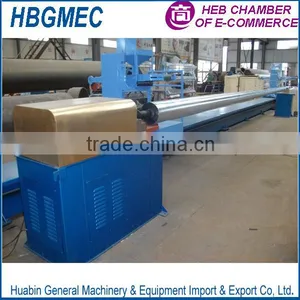

Filament Winding Machine
The main product we made: filament winding machine

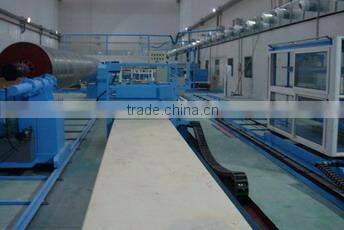

Filament Winding Machine. This production line consists of complete equipments of GRP MP (Glassfiber Reinforced Plastics Motar Pipe) pipe production, from pipe liner making and curing, structural layer making and curing, finishing and grooving and pipe extraction.
- Pipes for water, oil and sewerage
- Waste ducts, tanks & bottles
- Storage and processing tanks
- Pressure vessels for gas, petroleum etc.

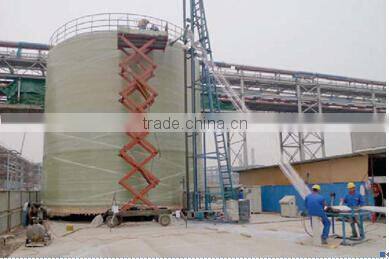

- Underground tank, Silos for storage / dispensing
- Components for the railways
- Sporting goods like golf clubs & tube frames
The major components of filament winding are :
- Fiber
- Resin
- Tooling
- Process Equipment
- Winding software
Pipe Winding Machines are designed and manufactured in various configurations based on application.
Axes configurations is shown below:
1. For manufacturing pipes or other cylindrical parts, Nnormally a 2 axes winder would suffice.
2. For Tanks, Vessels etc., where you need to wind on the end domes as well, you need a 4 axes machine
For more complicated Non-Axi - Symmetric jobs a 6 or 7 axes winder would be required
Advantage:
Our commitment
1. Do free installation and trial run of microcomputer and equipments, do free training on operators, provide product design software until personnel from your honorable company skillfully master it.
2. Responsible for providing advanced domestic production techniques and providing matching techniques and equipments at any time following with development of production technology.
3. Within one year for all occurred troubles of the equipments we serve for you at any time to timely solve the troubles.
4. According to the regulations in the contract timely provide wearing parts in production line and equipment software data.
5. Assist you honorable company to do equipment reform or time changing work, assist you with upgrade work of the production line.
6. Provide all involved service for production line.
