Specifications
Battery type:deep cycle.
Inverter:Pure sine wave
Distribution box:improved system reliability.
Systems' parts:

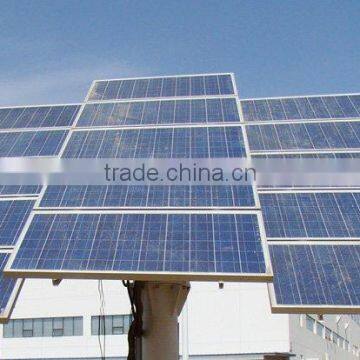

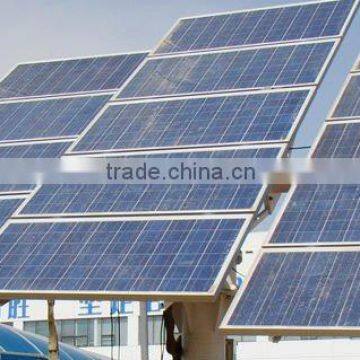

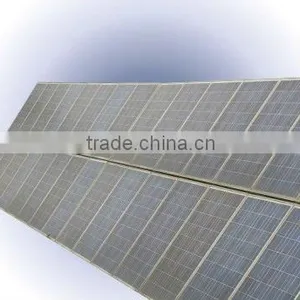

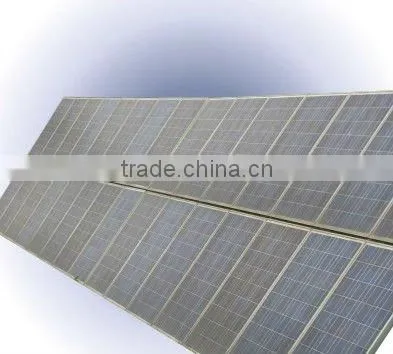

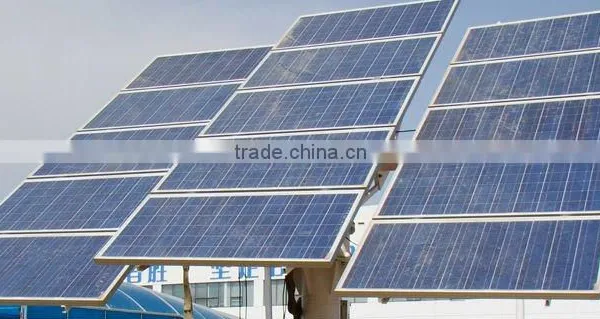

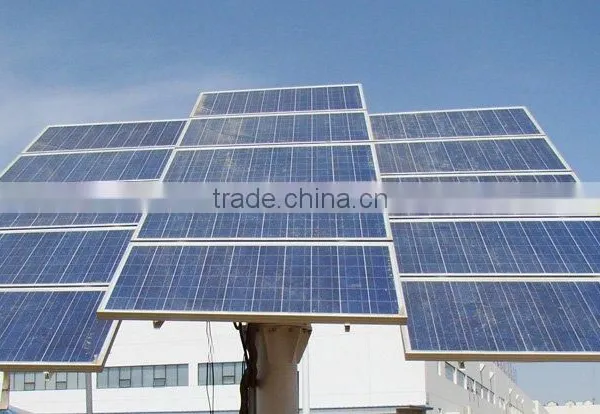

1.PV array: some PV panels connected in series and in parallel giving a DC output out of the incident irradiance. Orientation and tilt of the panels are important design parameters,as well as shading from surrounding obstuctions.
2.Solar controller:control battery bank charge and discharge reasonable and safty.
3.Battery Bank: can be a single battery or multiple batteries connected together to creat essentially one large battery of the required voltage and amp-hour capacity. In some ways the battery configuration and capacity are the most important electrical power decision to make, and a wise choice can help you guarantee a steady supply of electrical power as well as a system that is simple to operate and maintain.
4.Inverter: An inverter can invert the DC power from solar system into AC power.
Model |
500W AC |
|
|
Solar Module |
Max Power |
500W |
Max Charge Voltage |
35 V |
|
Max Charge Current |
13.71A |
|
|
Battery |
Type |
Deep Cycle |
System Voltage |
24V DC |
|
Capacity |
200Ah 24V(2000Ah12V*2) |
|
|
Charge Controller |
System Voltage |
24V |
Rated Discharge Current |
30A |
|
|
Inverter |
Output Power |
700W(1000VA) |
Surge Rating |
1400W |
|
Output AC Voltage |
220V50Hz/110V60Hz |
|
Combiner Box |
Yes |
|
Distribution Box |
Material |
Steel |
Load Equipment Type |
Small refrigerator,Washing machine,Water pump,Color TV, Printer, Light,Electric fan,etc. |
|
Cable Wire |
50 M |
|
Module Bracket |
6 sets |
|
Work time |
6-8hours/day |
|
