Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > 2016 NEW Model Solar Controller

2016 NEW Model Solar Controller

Name: 2016 NEW Model Solar Controller
Brand: Vmax Power
SKU: 118310643
Availability: InStock

2016 NEW Model Solar Controller thumbnail-1

2016 NEW Model Solar Controller thumbnail-2

2016 NEW Model Solar Controller thumbnail-3

US$ 5 - 150 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Vmax Power

Model Number:

MUC-E1

Contact Supplier Request Quote Chat Now

Beijing Multifit Electrical Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Vmax Power

Model Number MUC-E1

Application Charger Controller

Rated Voltage Other, 12/24v

Maximum Current 5A\10A\15A\20A\30A\40A\50A\60A

Product Description

MUC-E1 1024 / MUC-E1 2024

MUC-E1 Multifit series solar charge controller is a new generation lighting controller for off-grid solar system, such as home system, traffic system, CCTV system. It adopts the most advanced digital technique and operates fully automatically.

MUC-E1 Multifit series solar charge controller that adopts the most advanced digital technique and operates fully automatically. The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.

Features:

12/24V auto work

High efficient Series PWM charging

Use MOSFET as electronic switch

Gel, Sealed and Flooded battery type option

Temperature compensation

Electronic protection: over charging, over discharging, overload, short circuit , and overheating

Reverse protection: any combination of solar module and battery

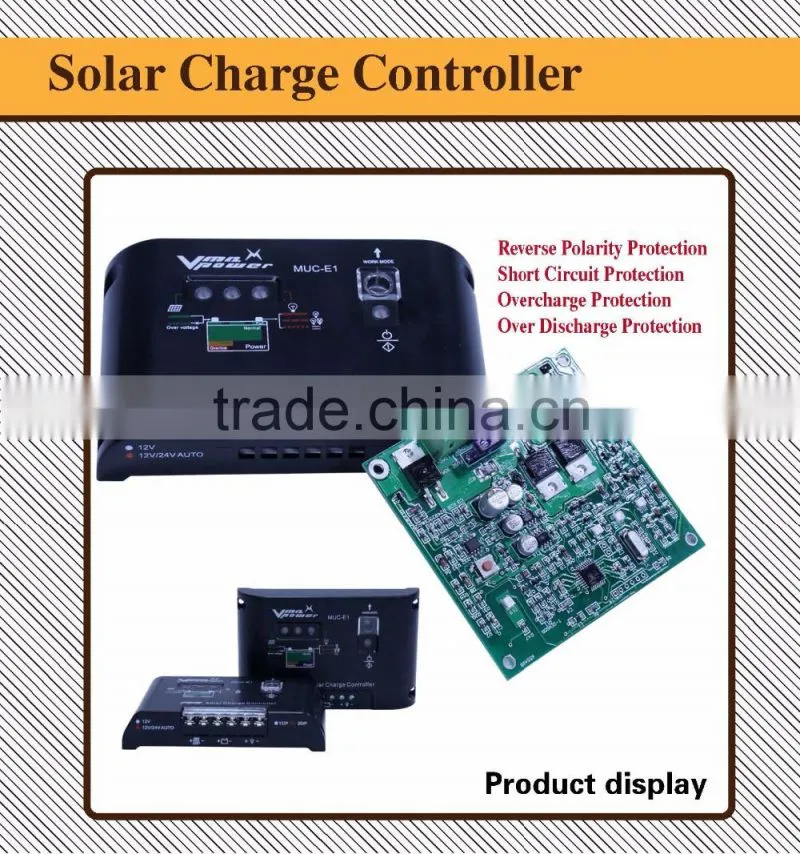

Electronic Protections:
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV short circuit
·PV reverse polarity
·Battery reverse polarity

Application:

Ideal for off-grid solar system that loads are normally on or controlled by manual.

Solar traffic system

Solar home system

Unattended CCTV Equipment

Wild automatic detection equipment

Electrical parameters	MUC-E1-0524	MUC-E1-1024	MUC-E1-1524
Nominal System Voltage	12 / 24VDC auto work
Rated Battery Current	5A	10A	15A
Max. Battery Voltage	32V
Charge Circuit Voltage Drop	≤0.26V
Discharge Circuit Voltage Drop	≤0.15V
Self-consumption	≤6mA

Battery Voltage Parameters (temperature at 25℃)
Battery charging setting	Gel	Sealed	Flooded
Equalize Charging Voltage	——	14.6V;x2/24V	14.8V;x2/24V
Boost Charging Voltage	14.2V;x2/24V	14.4V;x2/24V	14.6V;x2/24V
Float Charging Voltage	13.8V;x2/24V	13.8V;x2/24V	13.8V;x2/24V
Low Voltage Reconnect Voltage	12.6V;x2/24V	12.6V;x2/24V	12.6V;x2/24V
Low Voltage Disconnect Voltage	11.1V;x2/24V	11.1V;x2/24V	11.1V;x2/24V
Equalize Duration	——	2hours	2hours
Boost Duration	2hours	2hours	2hours

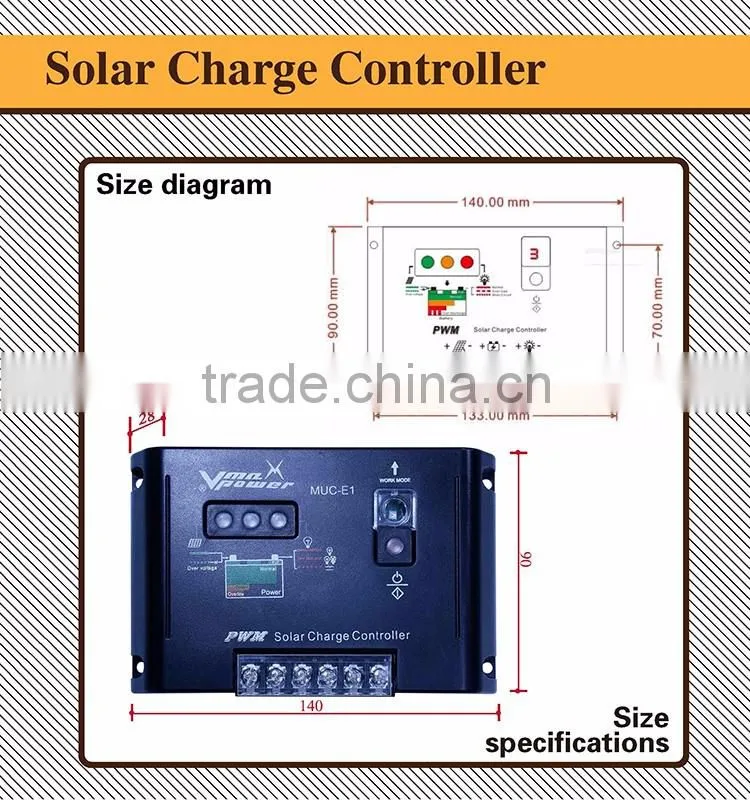

Environmental parameters		Mechanical Parameters
Working temperature	-35℃to +55℃	Overall dimension	140 x 65 x 34mm	144 x 75x 45mm
Storage temperature	-35℃to +80℃	Mounting dimension	130 x45mm	135 x55mm
Humidity	10%-90%NC	Terminal	4mm2	10mm2
Enclosure	IP30	Net weight	0.15kg	0.25kg

Due to continuous innovation.research and product improvement.the specifications in this product information sheet are subject ot change without prior notice.the specifications may deviate slightly and are not guaranteed.

The data do not refer to single module of contract and they are not part of the offer.they only serve for comparison to different module types
